2823398 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

4P,2MM,SHRD HDR,SRVT,SMD,0.38AU,

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Color	Material Flammability Rating	Insulation Height [custom]	Insulation Height [custom]	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Termination	Shrouding	Number of Positions Loaded	Number of Positions	Fastening Type	Contact Finish - Mating	Mounting Type	Insulation Material	Features	Voltage Rating	Contact Type	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Number of Rows
TE Connectivity Raychem Cable Protection 2823398-4	15 µin	0.38 µm	Tin	Black	UL94 V-0	5.51 mm	0.217 in	Square	157.5 Áin	4 Ám	0.079 in	2 mm	Header	125 °C	-40 °C	Phosphor Bronze	Solder	Shrouded - 2 Wall	All	4	Detent Lock	Gold	Surface Mount	Thermoplastic	Pick and Place	125 VAC	Male Pin	2 A	4 mm	0.157 in	1

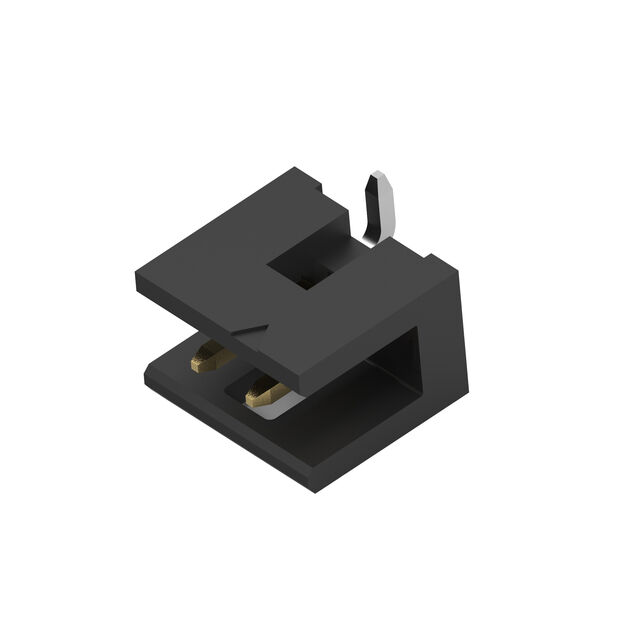

TE Connectivity Raychem Cable Protection 2823398-2	15 µin	0.38 µm	Tin	Black	UL94 V-0	5.51 mm	0.217 in	Square	157.5 Áin	4 Ám	0.079 in	2 mm	Header	125 °C	-40 °C	Phosphor Bronze	Solder	Shrouded - 2 Wall	All	2	Detent Lock	Gold	Surface Mount	Thermoplastic	Pick and Place	125 VAC	Male Pin	2 A	4 mm	0.157 in	1
TE Connectivity Raychem Cable Protection 2823398-3	15 µin	0.38 µm	Tin	Black	UL94 V-0	5.51 mm	0.217 in	Square	157.5 Áin	4 Ám	0.079 in	2 mm	Header	125 °C	-40 °C	Phosphor Bronze	Solder	Shrouded - 2 Wall	All		Detent Lock	Gold	Surface Mount	Thermoplastic	Pick and Place	125 VAC	Male Pin	2 A	4 mm	0.157 in	1
TE Connectivity Raychem Cable Protection 2823398-6	15 µin	0.38 µm	Tin	Black	UL94 V-0	5.51 mm	0.217 in	Square	157.5 Áin	4 Ám	0.079 in	2 mm	Header	125 °C	-40 °C	Phosphor Bronze	Solder	Shrouded - 2 Wall	All	6	Detent Lock	Gold	Surface Mount	Thermoplastic	Pick and Place	125 VAC	Male Pin	2 A	4 mm	0.157 in	1
