CQB75 Series

Isolated DC/DC Converters - Through Hole 75W 180-450Vin 5Vout 15A

Manufacturer: Cincon Electronics Co. LTD

Catalog

Isolated DC/DC Converters - Through Hole 75W 180-450Vin 5Vout 15A

Catalog

Isolated DC/DC Converters - Through Hole 75W 180-450Vin 5Vout 15A

Part	Power (Watts)	Type	Mounting Type	Standard Number	Features	Operating Temperature [Min]	Operating Temperature [Max]	Control Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Number of Outputs	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Efficiency	Applications	Voltage - Output 1	Approval Agency	Supplier Device Package	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]

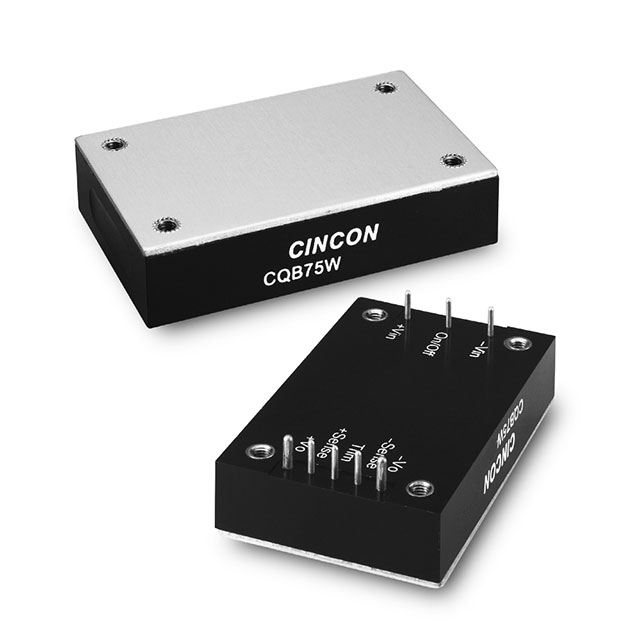

Cincon Electronics Co. LTD CQB75W-48S12	75 W	Isolated Module	Through Hole	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	100 °C	Active High Enable	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Module	1	1.5 kV	75 V	18 V	6.25 A	86 %	ITE (Commercial)	12 V	CE cURus
Cincon Electronics Co. LTD CQB75-300S48	75 W	Isolated Module	Through Hole	62368-1		-40 °C	105 C	Active High Enable	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Quarter Brick	1	3000 V	450 V	180 V	1.56 A	89 %	ITE (Commercial)	48 V	CE	Quarter Brick
Cincon Electronics Co. LTD CQB75W-24S05	60 W	Isolated Module	Through Hole	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	100 °C	Active High Enable	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Module	1	1.5 kV	36 V	9 V	12 A	84 %	ITE (Commercial)	5 V	CE cURus
Cincon Electronics Co. LTD CQB75-300S05	75 W	Isolated Module	Through Hole	62368-1		-40 °C	105 C	Active High Enable	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Quarter Brick	1	3000 V	450 V	180 V	15 A		ITE (Commercial)	5 V	CE	Quarter Brick
Cincon Electronics Co. LTD CQB75W-48S15	75 W	Isolated Module	Through Hole	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	100 °C	Active High Enable	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Module	1	1.5 kV	75 V	18 V		87 %	ITE (Commercial)	15 V	CE cURus		5 A
Cincon Electronics Co. LTD CQB75-300S48N-F	75 W	Isolated Module	Through Hole	62368-1	Baseplate Heat Sink Remote On/Off Remote Sense	-40 °C	105 C	Active Low Enable	57.9 mm	2.2 "	0.5 in	2.28 "			Half Brick	1	3000 V	450 V	180 V	1.56 A	89 %	ITE (Commercial)	48 V	CE	Half Brick		12.7 mm	55.9 mm

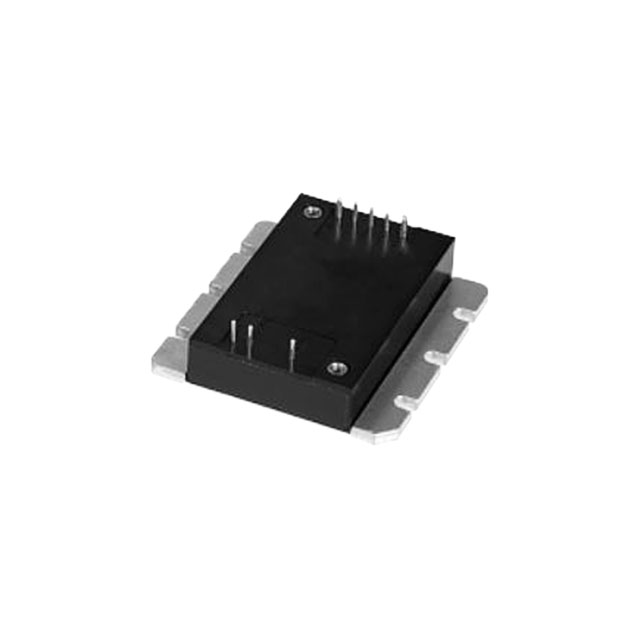

Cincon Electronics Co. LTD CQB75-300S05N-F	75 W	Isolated Module	Through Hole	62368-1	Baseplate Heat Sink Remote On/Off Remote Sense	-40 °C	105 C	Active Low Enable	57.9 mm	2.2 "	0.5 in	2.28 "			Half Brick	1	3000 V	450 V	180 V	15 A	83.5 %	ITE (Commercial)	5 V	CE	Half Brick		12.7 mm	55.9 mm
Cincon Electronics Co. LTD CQB75W-48S24	75 W	Isolated Module	Through Hole	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	100 °C	Active High Enable	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Module	1	1.5 kV	75 V	18 V	3.12 A	87 %	ITE (Commercial)	24 V	CE cURus
Cincon Electronics Co. LTD CQB75W-48S3V3N	40 W	Isolated Module	Through Hole	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	100 °C	Active Low Enable	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Module	1	1.5 kV	75 V	18 V	12 A		ITE (Commercial)	3.3 V	CE cURus

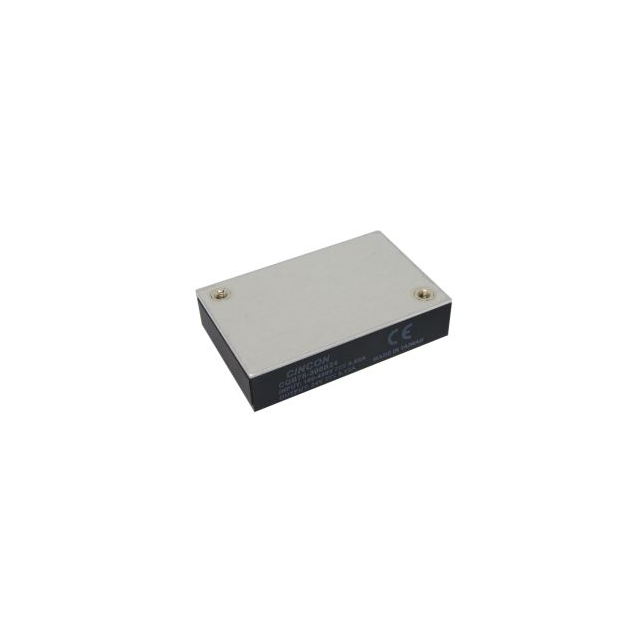

Cincon Electronics Co. LTD CQB75-300S24N	75 W	Isolated Module	Through Hole	62368-1		-40 °C	105 C	Active Low Enable	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Quarter Brick	1	3000 V	450 V	180 V	3.12 A	90 %	ITE (Commercial)	24 V	CE	Quarter Brick
