G8020M24B Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

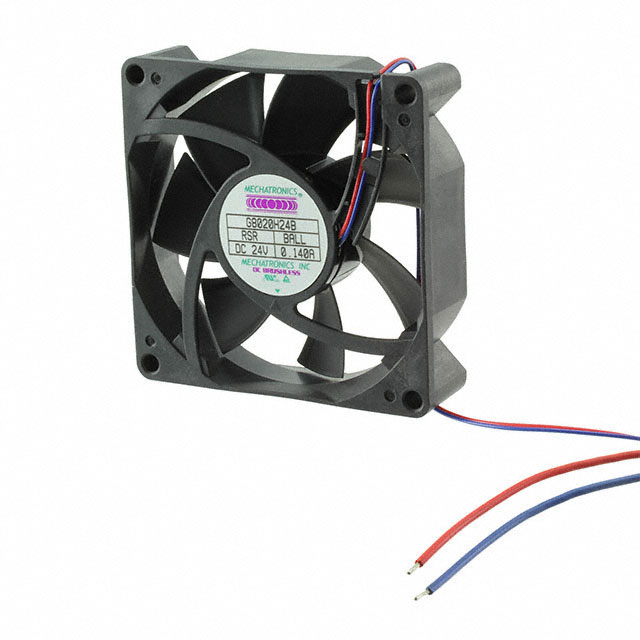

FAN AXIAL 80X20.8MM 24VDC WIRE
| Part | Current Rating (Amps) | Material - Blade | Fan Type | Voltage - Rated | Width [x] | Approval Agency | RPM | Static Pressure | Static Pressure | Features | Size / Dimension [z] | Size / Dimension [x] | Bearing Type | Air Flow | Air Flow | Noise | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | 0.09 A | Polybutylene Terephthalate (PBT) | Tubeaxial | 24 VDC | 20.8 mm | CE cUL TUV UL | 3000 RPM | 32.4 Pa | 0.13 in H2O | Thermal Overload Protector (TOP) | 80 mm | 80 mm | Ball | 38 CFM | 1.06 mł/min | 29 dB(A) | 2 Wire Leads |
 Mechatronics Fan Group | 0.09 A | Polybutylene Terephthalate (PBT) | Tubeaxial | 24 VDC | 20.8 mm | CE cUL TUV UL | 3000 RPM | 32.4 Pa | 0.13 in H2O | Alarm Sensor Locked Rotor Sensor Thermal Overload Protector (TOP) | 80 mm | 80 mm | Ball | 38 CFM | 1.06 mł/min | 29 dB(A) | 4 Wire Leads |
