344009 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

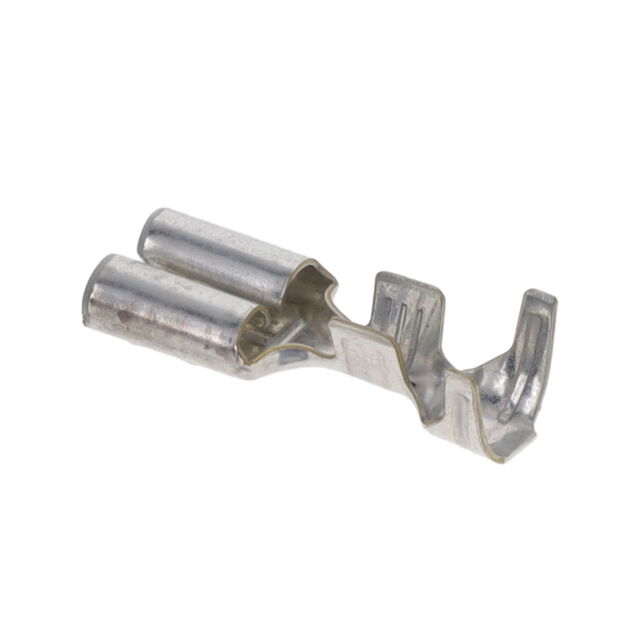

CONN QC RCPT 12-14AWG 0.250
| Part | Gender | Mounting Type | Tab Width | Tab Width | Termination | Insulation | Tab Length | Tab Length | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Length - Overall [x] | Length - Overall [x] | Terminal Type | Tab Thickness | Tab Thickness | Contact Material | Insulation Diameter | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Female | Free Hanging (In-Line) | 6.35 mm | 0.25 in | Crimp | Non-Insulated | 7.75 mm | 0.305 in | 14 AWG | 12 AWG | Tin | 0.776 in | 19.7 mm | Standard | 0.032 in | 0.81 mm | Brass | 4.09 mm | 0.217 in | 0.161 in | 5.5 mm |
