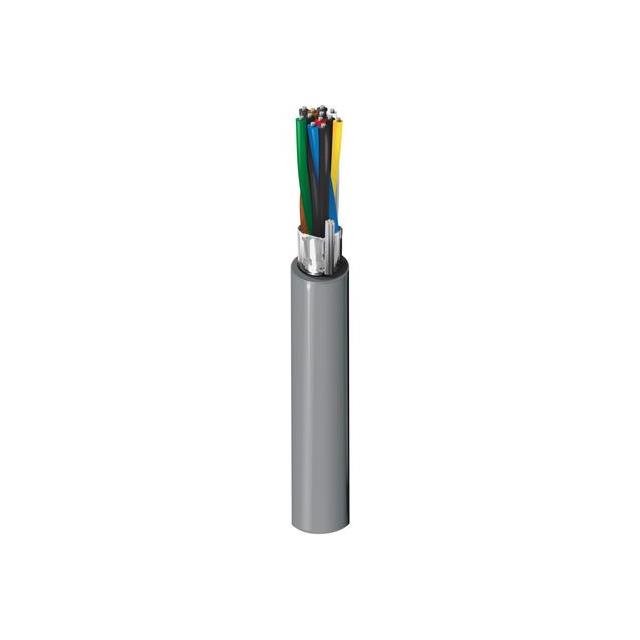

1423A Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 12COND 24AWG
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Usage | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Conductor Material | Jacket Color | Ratings | Shield Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 24 AWG | 80 °C | -20 ░C | 12 | Computer | 152.4 m | 500 ft | 8.1 mm | 0.319 " | Multi-Pair | 0.035 in | 0.889 mm | Foam Polyethylene (FPE) | Copper Tinned | Chrome | UL Style 2919 | Foil | Drain Wire |
 Belden Inc. | 100 % | Aluminum | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 24 AWG | 80 °C | -20 ░C | 12 | Computer | 304.8 m | 1000 ft | 8.1 mm | 0.319 " | Multi-Pair | 0.035 in | 0.889 mm | Foam Polyethylene (FPE) | Copper Tinned | Chrome | UL Style 2919 | Foil | Drain Wire |
