45-V, 2-A BIPOLAR STEPPER MOTOR DRIVER WITH CURRENT REGULATION, 1/16 MICROSTEPPING & SMART TUNE
| Part | Voltage - Load [Min] | Voltage - Load [Max] | Motor Type - Stepper | Step Resolution | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current - Output | Interface | Output Configuration | Applications | Voltage - Supply [Min] | Voltage - Supply [Max] | Supplier Device Package | Package / Case [custom] | Package / Case | Package / Case [custom] | Technology | Function | Primary Attributes | Supplied Contents | Secondary Attributes | Type | Utilized IC / Part | Embedded | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 6.5 V | 45 V | Bipolar | 1 1/16 1/2 1/4 1/8 | 150 °C | -40 °C | Surface Mount | 2 A | Logic | Half Bridge (4) | General Purpose | 6.5 VDC | 45 V | 28-HTSSOP | 4.4 mm | 28-PowerTSSOP | 0.173 " | Power MOSFET | Driver - Fully Integrated Control and Power Stage | |||||||

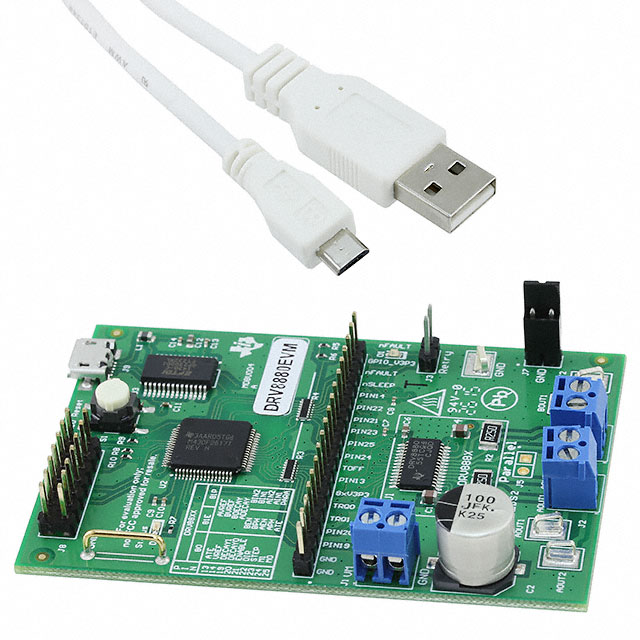

 Texas Instruments | Dual Full-Bridge (H-Bridge) Driver | Board(s) Cable(s) | Graphical User Interface (GUI) | Power Management | DRV8880 | 16-Bit MCU |
