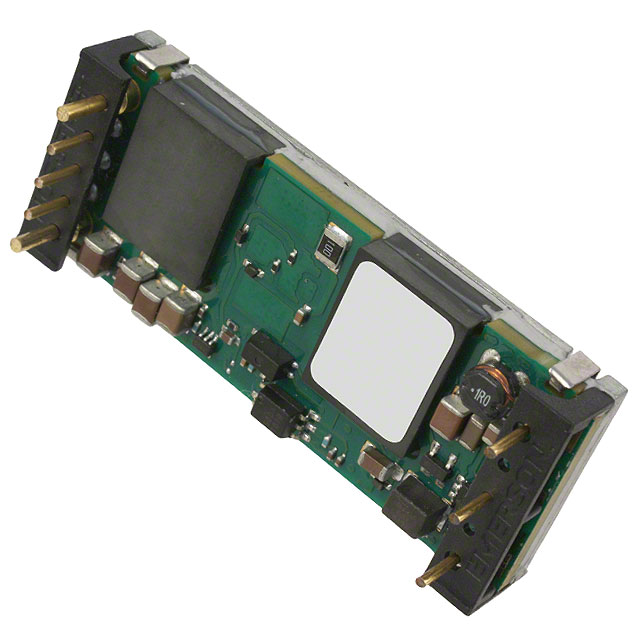

AEO12A Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
ISOLATED THROUGH HOLE DC/DC CONVERTER, 66 W, 1 OUTPUT, 5 V
| Part | Package / Case | Voltage - Input (Max) [Max] | Mounting Type | Current - Output (Max) [Max] | Applications | Efficiency | Voltage - Output 1 | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Features | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Number of Outputs | Voltage - Input (Min) [Min] | Type | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 8-DIP Module 1/8 Brick | 75 V | Through Hole | 12 A | ITE (Commercial) | 92 % | 5 V | 66 W | -40 C | 100 °C | OCP OTP OVP Remote On/Off UVLO | 0.4 " | 0.9 in | 22.9 mm | 2.3 in | 58.4 mm | 10.2 mm | 1 | 36 V | Isolated Module | 1.5 kV |
