1827585 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

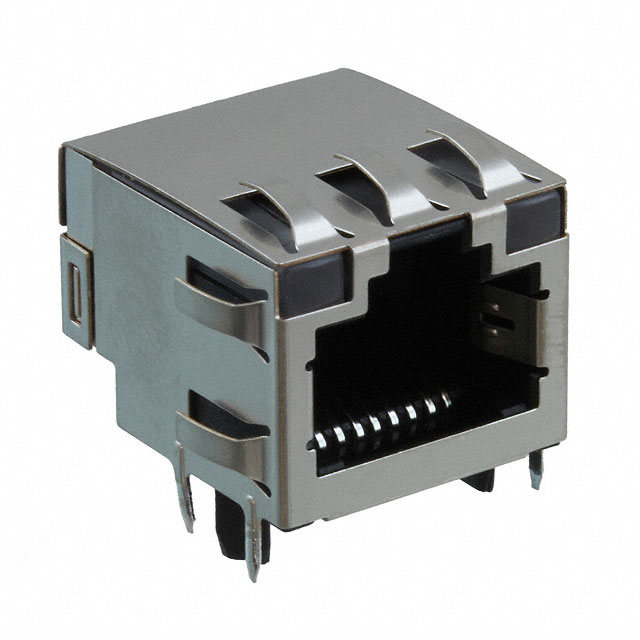

RJ45 MODULAR JACK ASSY H 8P
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | LED Color | Connector Type | Number of Rows | Features | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Ports | Tab Direction | Contact Finish | Contact Material | Number of Positions/Contacts | Orientation | Housing Material | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 85 °C | -40 °C | Through Hole | Does Not Contain LED | Jack | 1 | Board Guide Light Pipe | 50 µin | 1.27 µm | Solder | 1 | Up | Gold | Phosphor Bronze | 8p8c (RJ45 Ethernet) | 90 ° | Thermoplastic | Shielded EMI Finger |
