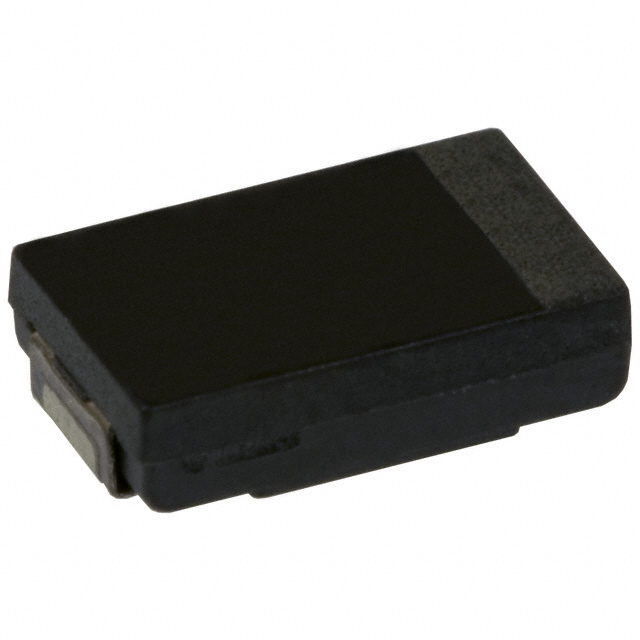

EEF-SX Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM POLY 220UF 20% 6.3V SMD

Part	Mounting Type	Package / Case	Package / Case	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Type	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Lifetime @ Temp.	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales EEF-SX0J221ER	Surface Mount	7343 Metric	2917	0.287 "	4.3 mm	0.169 "	7.3 mm	Polymer	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	105 ░C	-55 °C	6.3 V	2000 Hrs	6.3 A	9 mOhms	220 µF	2 mm	0.079 in
Panasonic Industrial Automation Sales EEF-SX0E471E4	Surface Mount	7343 Metric	2917	0.287 "	4.3 mm	0.169 "	7.3 mm	Polymer	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	105 ░C	-55 °C	2.5 V	2000 Hrs	8.5 A	4.5 mOhms	470 µF	2 mm	0.079 in
Panasonic Industrial Automation Sales EEF-SX0D151ER	Surface Mount	7343 Metric	2917	0.287 "	4.3 mm	0.169 "	7.3 mm	Polymer	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	105 ░C	-55 °C	2 VDC	2000 Hrs			150 µF	2 mm	0.079 in
Panasonic Industrial Automation Sales EEF-SX0E151R	Surface Mount	7343 Metric	2917					Polymer	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	105 ░C	-55 °C	2.5 V	2000 Hrs		9 mOhms	150 µF	2 mm	0.079 in
Panasonic Industrial Automation Sales EEF-SX0E391XE	Surface Mount	7343 Metric	2917	0.287 "	4.3 mm	0.169 "	7.3 mm	Polymer	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	105 ░C	-55 °C	2.5 V	2000 Hrs	7.5 A	6 mOhms	390 µF	2 mm	0.079 in
Panasonic Industrial Automation Sales EEF-SX0D181R	Surface Mount	7343 Metric	2917					Polymer	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	105 ░C	-55 °C	2 VDC	2000 Hrs		9 mOhms	180 çF	2 mm	0.079 in
Panasonic Industrial Automation Sales EEF-SX0D271ER	Surface Mount	7343 Metric	2917	0.287 "	4.3 mm	0.169 "	7.3 mm	Polymer	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	105 ░C	-55 °C	2 VDC	2000 Hrs	6.3 A	9 mOhms	270 µF	2 mm	0.079 in
Panasonic Industrial Automation Sales EEF-SX0G820R	Surface Mount	7343 Metric	2917					Polymer	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	105 ░C	-55 °C	4 V	2000 Hrs		9 mOhms	82 µF	2 mm	0.079 in
Panasonic Industrial Automation Sales EEF-SX0G820ER	Surface Mount	7343 Metric	2917	0.287 "	4.3 mm	0.169 "	7.3 mm	Polymer	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	105 ░C	-55 °C	4 V	2000 Hrs	6.3 A	9 mOhms	82 µF	2 mm	0.079 in
Panasonic Industrial Automation Sales EEF-SX0E331XR	Surface Mount	7343 Metric	2917					Polymer	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	105 ░C	-55 °C	2.5 V	2000 Hrs		6 mOhms	330 µF	2 mm	0.079 in
