D2RV Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP SPST-NO 0.25A 100V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Operating Force | Operating Position | Operating Position | Ingress Protection | Pretravel | Pretravel | Termination Style | Circuit | Differential Travel | Differential Travel | Electrical Life | Overtravel | Overtravel | Switch Function | Mechanical Life | Current Rating (Amps) | Mounting Type | Actuator Type | Operating Position [x] | Operating Position [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | -10 °C | 60 °C | 100 V | 50 gf | 20.4 mm | 0.803 in | IP40 | 0.071 in | 1.8 mm | Quick Connect - 0.187" (4.7mm) | SPST-NO | 1 mm | 0.04 in | 3000000 Cycles | 0.4 mm | 0.015 " | Off-Mom | 10000000 Cycles | 250 mA | Chassis Mount | Lever Roller | ||
 Omron Electronics Inc-EMC Div | -10 °C | 60 °C | 100 V | 18.1 mm | 0.713 " | IP40 | 0.157 in | 4 mm | Quick Connect - 0.187" (4.7mm) | SPST-NO | 1.6 mm | 0.062 in | 3000000 Cycles | 1 mm | 0.04 in | Off-Mom | 10000000 Cycles | 250 mA | Chassis Mount | Lever Simulated Roller | |||
Omron Electronics Inc-EMC Div | -10 °C | 60 °C | 100 V | 20.4 mm | 0.803 in | IP40 | 0.071 in | 1.8 mm | Quick Connect - 0.187" (4.7mm) | SPST-NO | 1 mm | 0.04 in | 3000000 Cycles | 0.4 mm | 0.015 " | Off-Mom | 10000000 Cycles | 250 mA | Chassis Mount | Lever Roller | |||
Omron Electronics Inc-EMC Div | -10 °C | 60 °C | 100 V | IP40 | 0.071 in | 1.8 mm | Quick Connect - 0.187" (4.7mm) | SPST-NO | 1 mm | 0.04 in | 3000000 Cycles | 0.4 mm | 0.015 " | Off-Mom | 10000000 Cycles | 250 mA | Chassis Mount | Lever Straight | 15 mm | 0.591 in | |||

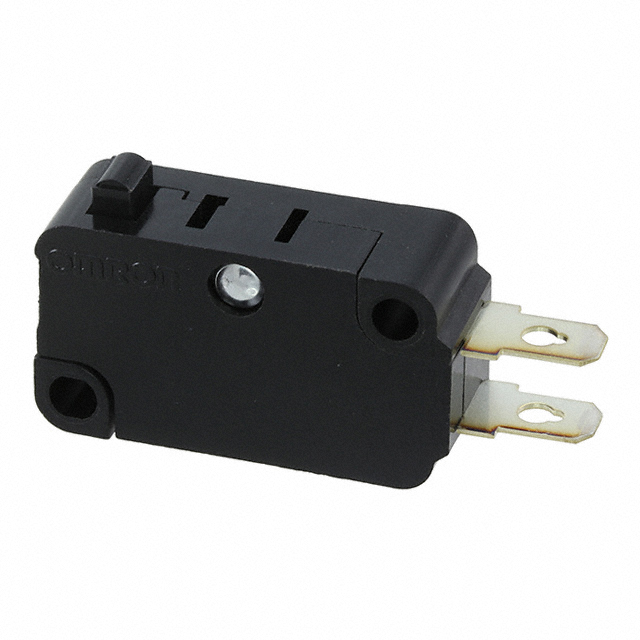

 Omron Electronics Inc-EMC Div | -10 °C | 60 °C | 100 V | 14.4 mm | 0.567 in | IP40 | 0.063 in | 1.6 mm | Quick Connect - 0.187" (4.7mm) | SPST-NO | 0.8 mm | 0.031 " | 3000000 Cycles | 0.6 mm | 0.025 " | Off-Mom | 10000000 Cycles | 250 mA | Chassis Mount | Round (Pin Plunger) | |||
 Omron Electronics Inc-EMC Div | -10 °C | 60 °C | 100 V | 50 gf | 19.9 mm | 0.785 in | IP40 | 0.157 in | 4 mm | Quick Connect - 0.187" (4.7mm) | SPST-NO | 1.6 mm | 0.062 in | 3000000 Cycles | 1 mm | 0.04 in | Off-Mom | 10000000 Cycles | 250 mA | Chassis Mount | Lever Roller | ||
Omron Electronics Inc-EMC Div | -10 °C | 60 °C | 100 V | 100 gf | 20.4 mm | 0.803 in | IP40 | 0.071 in | 1.8 mm | Quick Connect - 0.187" (4.7mm) | SPST-NO | 1 mm | 0.04 in | 3000000 Cycles | 0.4 mm | 0.015 " | Off-Mom | 10000000 Cycles | 250 mA | Chassis Mount | Lever Roller |
