9302-2 Series
Manufacturer: Oupiin
Beta
⌘K
CONN EDGE DUAL FMALE 60POS GOLD
| Part | Material - Insulation | Number of Rows [custom] | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Mounting Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Contact Finish | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Card Type | Color | Termination | Card Thickness | Card Thickness | Features | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

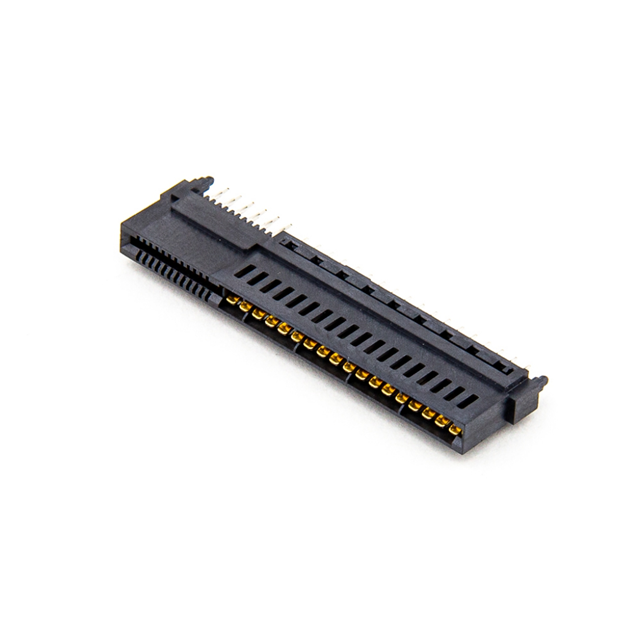

 Oupiin | Liquid Crystal Polymer (LCP) | 2 | Female | -55 C | 105 ░C | 60 | Through Hole | 18 | 12 | Gold | Dual | 30 Áin | 0.76 Ám | Copper Phosphor Bronze | Non Specified - Dual Edge | Black | Press-Fit | 1.57 mm | 0.062 in | ||

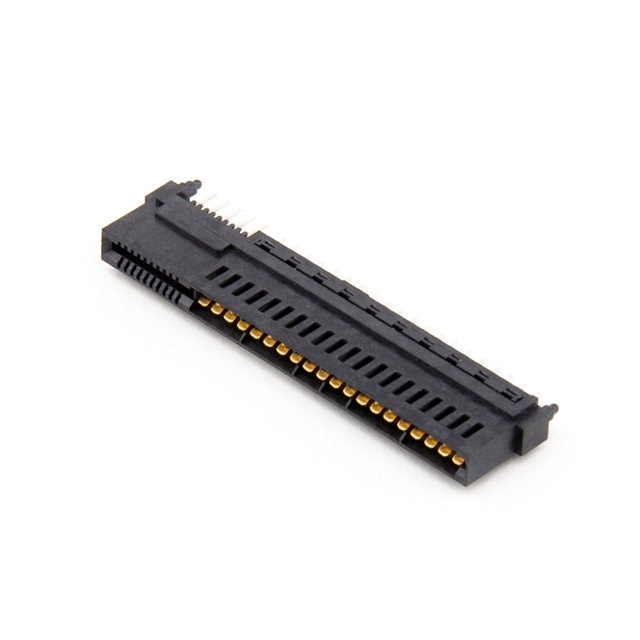

 Oupiin | Liquid Crystal Polymer (LCP) | 2 | Female | -55 C | 105 ░C | 60 | Through Hole | 18 | 12 | Gold | Dual | 30 Áin | 0.76 Ám | Copper Phosphor Bronze | Non Specified - Dual Edge | Black | Press-Fit Solder | 1.57 mm | 0.062 in | Board Guide | Cantilever |
