TPS61322 Series
Manufacturer: Texas Instruments
Beta
⌘K
6-UA QUIESCENT CURRENT, 1.8-A SWITCH CURRENT BOOST CONVERTER
| Part | Function | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output (Min/Fixed) | Current - Output | Frequency - Switching [Max] | Frequency - Switching [Min] | Number of Outputs | Voltage - Input (Min) [Min] | Supplier Device Package | Synchronous Rectifier | Mounting Type | Package / Case | Output Configuration | Voltage - Input (Max) [Max] | Topology | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Regulator Topology | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Main Purpose | Voltage - Output | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Step-Up | -40 C | 125 °C | 2.2 V | 1.2 A | 2 MHz | 500 kHz | 1 | 0.9 V | SOT-23-3 | Surface Mount | SC-59 SOT-23-3 TO-236-3 | Positive | 5.5 V | Boost | ||||||||||||
 Texas Instruments | Step-Up | -40 C | 125 °C | 3.3 V | 1.6 A | 2 MHz | 500 kHz | 1 | 0.9 V | SOT-23-5 | Surface Mount | SC-74A SOT-753 | Positive | 5.5 V | Boost | ||||||||||||
Texas Instruments | Step-Up | -40 C | 125 °C | 5 V | 2.5 A | 2 MHz | 500 kHz | 1 | 0.9 V | SOT-23-5 | Surface Mount | SC-74A SOT-753 | Positive | 5.5 V | Boost | ||||||||||||
 Texas Instruments | Step-Up | -40 C | 125 °C | 5 V | 2.5 A | 2 MHz | 500 kHz | 1 | 0.9 V | SOT-23-5 | Surface Mount | SC-74A SOT-753 | Positive | 5.5 V | Boost | ||||||||||||
 Texas Instruments | Step-Up | -40 C | 125 °C | 3.6 V | 1.6 A | 2 MHz | 500 kHz | 1 | 0.9 V | SOT-23-5 | Surface Mount | SC-74A SOT-753 | Positive | 5.5 V | Boost | ||||||||||||
Texas Instruments | Step-Up | -40 C | 125 °C | 3.3 V | 1.6 A | 2 MHz | 500 kHz | 1 | 0.9 V | SOT-23-5 | Surface Mount | SC-74A SOT-753 | Positive | 5.5 V | Boost | ||||||||||||

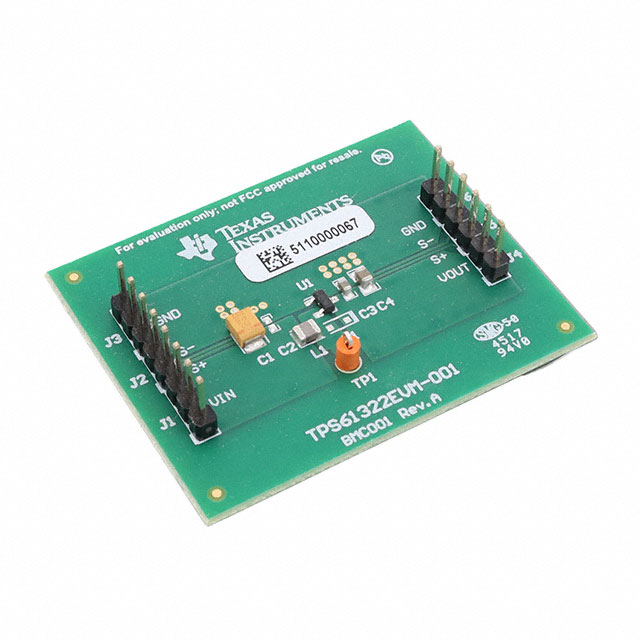

 Texas Instruments | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | Boost | 2.2 V | 0.85 V | TPS61322 | DC/DC Step Up | 2.2 V | Board(s) | ||||||||||||||||
Texas Instruments | Step-Up | -40 C | 125 °C | 2 V | 1.2 A | 2 MHz | 500 kHz | 1 | 0.9 V | SOT-23-5 | Surface Mount | SC-74A SOT-753 | Positive | 5.5 V | Boost | ||||||||||||
Texas Instruments | Step-Up | -40 C | 125 °C | 3.6 V | 1.6 A | 2 MHz | 500 kHz | 1 | 0.9 V | SOT-23-5 | Surface Mount | SC-74A SOT-753 | Positive | 5.5 V | Boost | ||||||||||||
Texas Instruments | Step-Up | -40 C | 125 °C | 2 V | 1.2 A | 2 MHz | 500 kHz | 1 | 0.9 V | SOT-23-5 | Surface Mount | SC-74A SOT-753 | Positive | 5.5 V | Boost |
