TMC6100 Series

Catalog

LOW VOLTAGE BLDC MOTOR DRIVER 8 TO 60V, FOR EXTERNAL N-CHANNEL MOSFETS UP TO 1.5A GATE CURRENT

Part	Gate Type	Driven Configuration	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Drivers	Channel Type	High Side Voltage - Max (Bootstrap) [Max]	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Rise / Fall Time (Typ)	Input Type	Logic Voltage - VIL, VIH	Supplied Contents	Contents	Type	Utilized IC / Part	Function	Primary Attributes
Analog Devices Inc./Maxim Integrated TMC6100-LA-T	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	Surface Mount	60 VDC	8 V	500 mA	500 mA	-40 C	125 °C	3	3-Phase	85 V	7	37-QFN-EP	7	20 ns
Analog Devices Inc./Maxim Integrated TMC6100-LA	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	Surface Mount	60 VDC	10 VDC			-40 C	125 °C	6	3-Phase		7	37-QFN-EP	7	20 ns	Non-Inverting	1.65 V 3.85 V

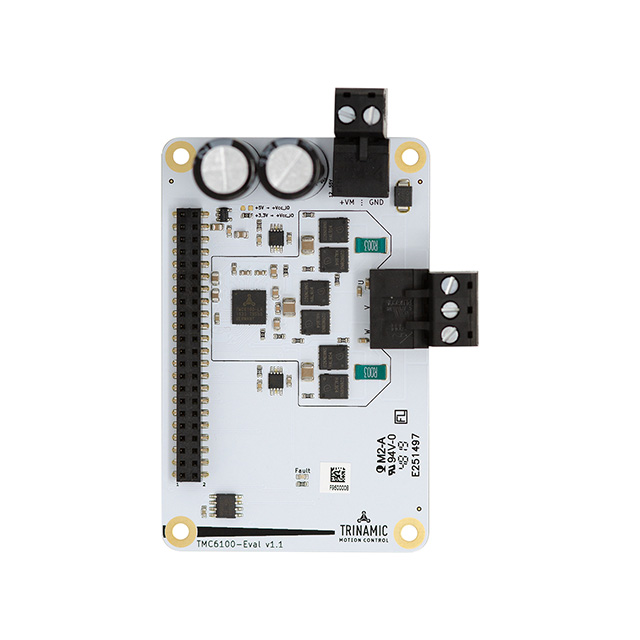

Analog Devices Inc./Maxim Integrated TMC6100-EVAL																			Board(s)	Board(s)	Power Management	TMC6100	Motor Controller/Driver	Motors (BLDC PMSM)
Analog Devices Inc./Maxim Integrated TMC6100-EVAL-KIT																			Board(s)	Board(s)	Power Management	TMC4671 TMC6100	Motor Controller/Driver	Motors (BLDC PMSM)
