08K246 Series
Manufacturer: Rosenberger
Beta
⌘K

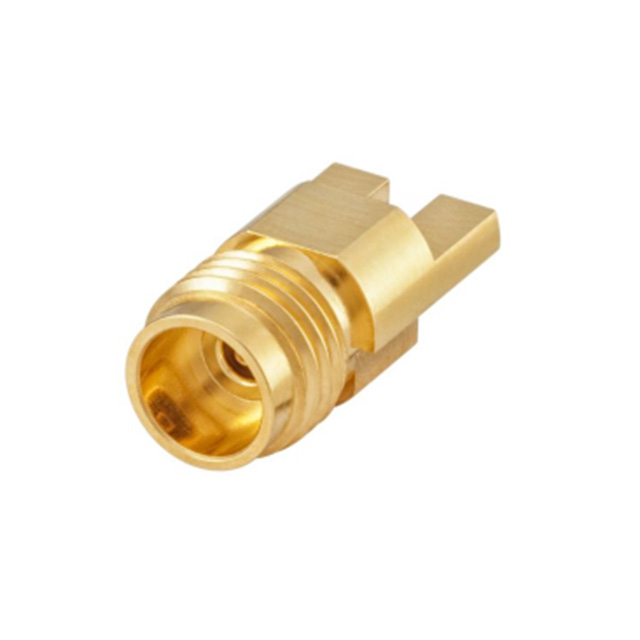

CONN RPC1.85 JCK ST 50OHM EDGEMT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Body Finish | Center Contact Plating | Dielectric Material | Mating Cycles | Voltage Rating | Mounting Type | Shield Termination | Center Contact Material | Impedance | Fastening Type | Contact Termination | Connector Type | Number of Ports | Housing Color | Frequency - Max [Max] | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | -55 C | 125 °C | Beryllium Copper | Gold | Gold | Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE) | 500 | 150 VDC | Board Edge Cutout Surface Mount | Solder | Beryllium Copper | 50 Ohms | Threaded | Solder | Female Socket Jack | 1 | Gold | 70 GHz | 1.85 mm |
