2081972 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

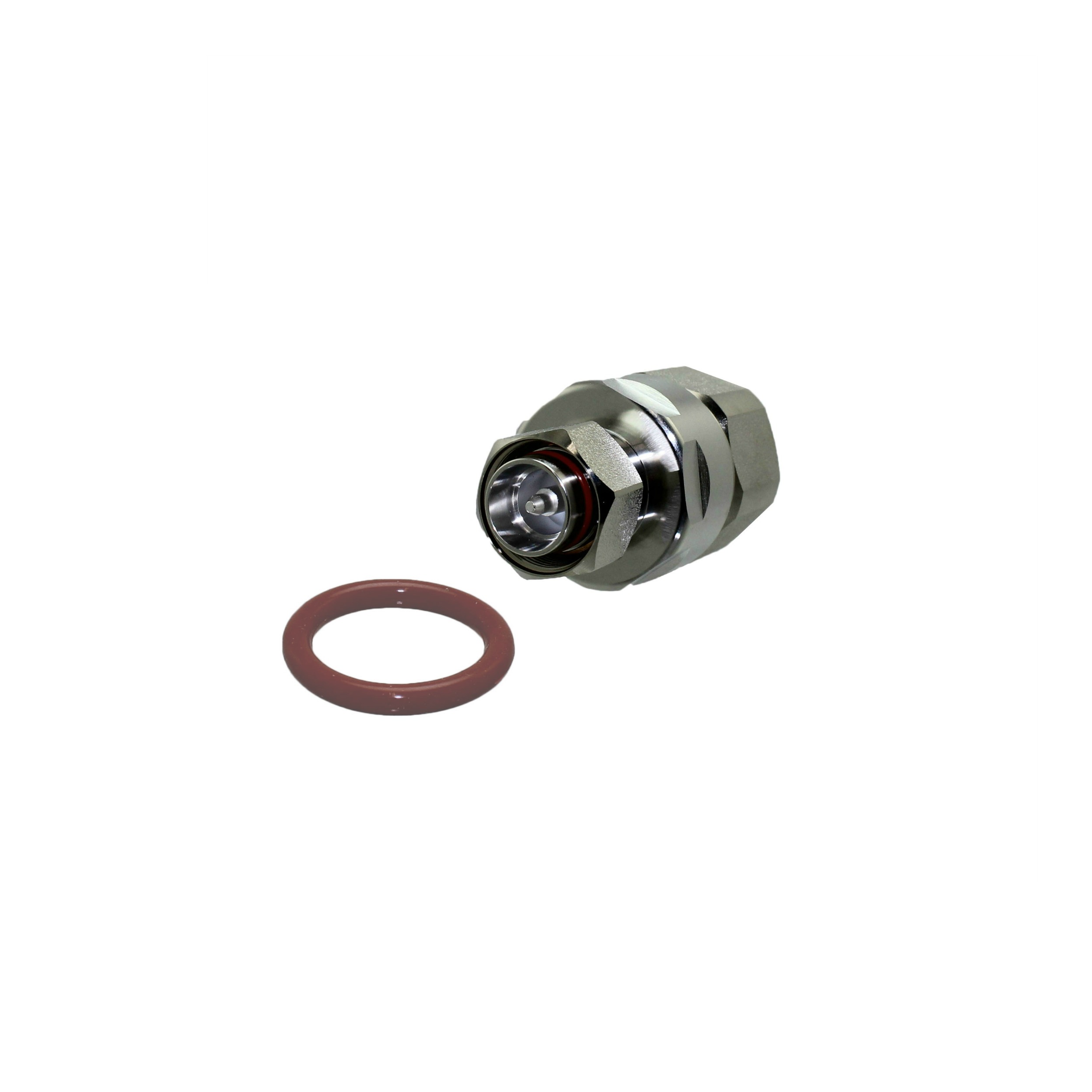

4.3-10 STR PLUG,SCREW,CLAMP,7-8
| Part | Connector Style | Mounting Type | Voltage Rating | Cable Group | Body Material | Number of Ports | Shield Termination | Contact Termination | Impedance | Center Contact Plating | Dielectric Material | Connector Type | Frequency - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Body Finish | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 4.3/10 | Free Hanging (In-Line) | 2.5 kV | 7/8 Super Flex Coaxial | Brass | 1 | Clamp | Crimp Solder | 50 Ohms | Silver | Polytetrafluoroethylene (PTFE) | Male Pin Plug | 6000 MHz | 85 °C | -40 °C | Bronze | White Bronze | Silver |
