S11B-XAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

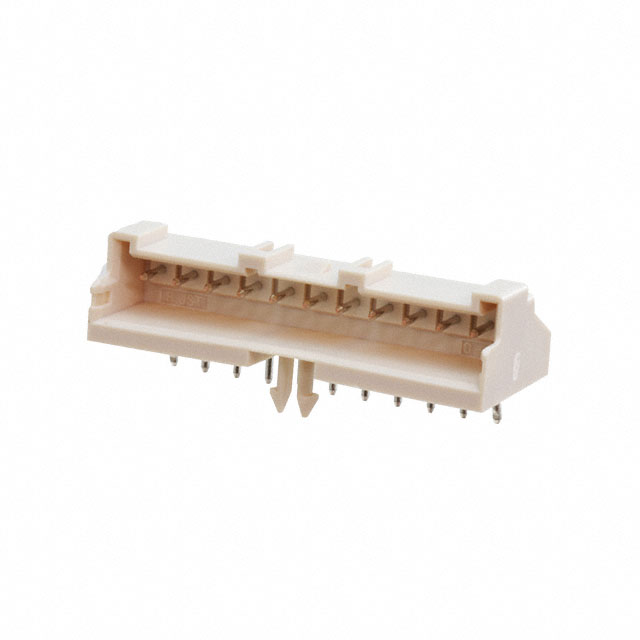

CONN HEADER R/A 11POS 2.5MM
| Part | Mounting Type | Voltage Rating | Termination | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Current Rating (Amps) | Insulation Color | Features | Insulation Height [z] | Insulation Height | Fastening Type | Contact Material | Shrouding | Contact Type | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Style | Connector Type | Material Flammability Rating | Number of Positions | Contact Finish - Post | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Right Angle Through Hole | 250 V | Press-Fit Solder | 1 | 85 °C | -25 °C | 2.5 mm | 0.098 in | All | 3 A | Natural | Board Lock | 0.299 " | 7.6 mm | Locking Ramp | Copper Alloy | Shrouded - 4 Wall | Male Pin | Circular | 0.126 " | 3.2 mm | Board to Cable/Wire | Header | UL94 V-0 | 11 | Tin | Glass Filled Nylon 6/6 Polyamide (PA66) |
