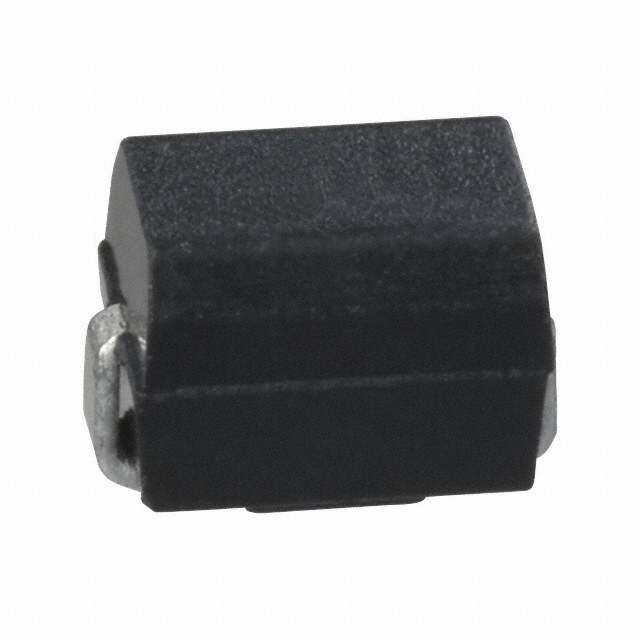

PM1812 Series

Catalog

WIREWOUND INDUCTOR, 1UH, 4.5A, 1812 ROHS COMPLIANT: YES

Part	Shielding	Q @ Freq	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max)	Frequency - Self Resonant	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Inductance	DC Resistance (DCR) [Max]	Mounting Type	Package / Case	Material - Core	DC Resistance (DCR)
Bourns Inc. PM1812-1R0J-RC	Unshielded	7.96 MHz 50	-40 C	100 °C	0.45 A	7.96 MHz	0.134 in	3.4 mm	100 MHz	0.177 in	4.5 mm	3.2 mm	0.126 in	5 %	1 µH	500 mOhm	Surface Mount	1812 (4532 Metric)	Ferrite
Bourns Inc. PM1812-821J	Unshielded	30 796 kHz	-40 C	100 °C	30 mA	0.796 MHz	0.134 in	3.4 mm	2.5 MHz	0.177 in	4.5 mm	3.2 mm	0.126 in	5 %	820 µH	35 Ohm	Surface Mount	1812 (4532 Metric)	Ferrite
Bourns Inc. PM1812-331J	Unshielded	40 796 kHz	-40 C	100 °C	85 mA	0.796 MHz	0.134 in	3.4 mm	3.5 MHz	0.177 in	4.5 mm	3.2 mm	0.126 in	5 %	330 µH	14 Ohm	Surface Mount	1812 (4532 Metric)	Ferrite
Bourns Inc. PM1812-1R0J	Unshielded	7.96 MHz 50	-40 C	100 °C	0.45 A	7.96 MHz	0.134 in	3.4 mm	100 MHz	0.177 in	4.5 mm	3.2 mm	0.126 in	5 %	1 µH	500 mOhm	Surface Mount	1812 (4532 Metric)	Ferrite
Bourns Inc. PM1812-151J	Unshielded	40 796 kHz	-40 C	100 °C	0.105 A	0.796 MHz	0.134 in	3.4 mm	5 MHz	0.177 in	4.5 mm	3.2 mm	0.126 in	5 %	150 µH	9 Ohm	Surface Mount	1812 (4532 Metric)	Ferrite
Bourns Inc. PM1812-271J	Unshielded	40 796 kHz	-40 C	100 °C	0.092 A	0.796 MHz	0.134 in	3.4 mm	4 MHz	0.177 in	4.5 mm	3.2 mm	0.126 in	5 %	270 µH	12 Ohm	Surface Mount	1812 (4532 Metric)	Ferrite
Bourns Inc. PM1812-121J-RC	Unshielded	40 796 kHz	-40 C	100 °C	110 mA	0.796 MHz	0.134 in	3.4 mm	6 MHz	0.177 in	4.5 mm	3.2 mm	0.126 in	5 %		8 Ohm	Surface Mount	1812 (4532 Metric)	Ferrite
Bourns Inc. PM1812-6R8J-RC	Unshielded	7.96 MHz 50	-40 C	100 °C	285 mA	7.96 MHz	0.134 in	3.4 mm	27 MHz	0.177 in	4.5 mm	3.2 mm	0.126 in	5 %	6.8 µH	1.2 Ohm	Surface Mount	1812 (4532 Metric)	Ferrite
Bourns Inc. PM1812-R33K-RC	Unshielded	25.2 MHz 40	-40 C	100 °C	605 mA	25.2 MHz	0.134 in	3.4 mm	165 MHz	0.177 in	4.5 mm	3.2 mm	0.126 in	10 %	330 nH	280 mOhm	Surface Mount	1812 (4532 Metric)	Ferrite
Bourns Inc. PM1812-R12K	Unshielded	25.2 MHz 35	-40 C	100 °C	770 mA	25.2 MHz	0.134 in	3.4 mm	280 MHz	0.177 in	4.5 mm	3.2 mm	0.126 in	10 %	120 nH		Surface Mount	1812 (4532 Metric)	Ferrite	200 mOhm
