PPTC091 Series

Catalog

CONN HDR 9POS 0.1 TIN PCB R/A

Part	Contact Shape	Insulation Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Mounting Type	Insulation Color	Number of Rows	Contact Finish - Post	Voltage Rating	Contact Length - Post	Contact Length - Post	Number of Positions	Fastening Type	Contact Type	Termination	Insulation Height	Insulation Height	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Connector Type	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]

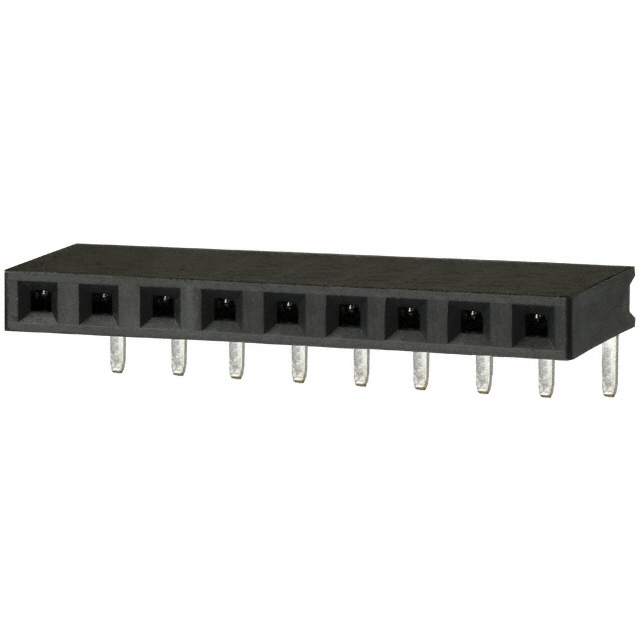

Sullins Connector Solutions PPTC091LGBN-RC	Square	Polyester	Phosphor Bronze	-40 C	105 ░C	All	Right Angle Through Hole	Black	1	Tin	250 V	0.124 in	3.15 mm	9	Push-Pull	Female Socket	Solder	0.1 in	2.54 mm	UL94 V-0	0.1 "	2.54 mm	Header	3 A
Sullins Connector Solutions PPTC091LGBN	Square	Polyester	Phosphor Bronze	-40 C	105 ░C	All	Right Angle Through Hole	Black	1	Tin	250 V	0.124 in	3.15 mm	9	Push-Pull	Female Socket	Solder	0.1 in	2.54 mm	UL94 V-0	0.1 "	2.54 mm	Header	3 A

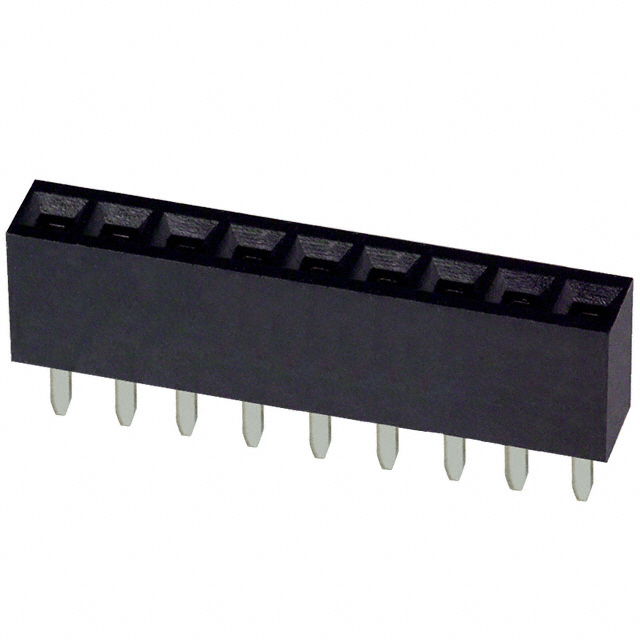

Sullins Connector Solutions PPTC091LFBN-RC	Square	Polyester	Phosphor Bronze	-40 C	105 ░C	All	Through Hole	Black	1	Tin	250 V			9	Push-Pull	Female Socket	Solder	0.335 "	8.51 mm	UL94 V-0	0.1 "	2.54 mm	Header	3 A	0.126 "	3.2 mm
Sullins Connector Solutions PPTC091LFBN	Square	Polyester	Phosphor Bronze	-40 C	105 ░C	All	Through Hole	Black	1	Tin	250 V			9	Push-Pull	Female Socket	Solder	0.335 "	8.51 mm	UL94 V-0	0.1 "	2.54 mm	Header	3 A	0.126 "	3.2 mm
