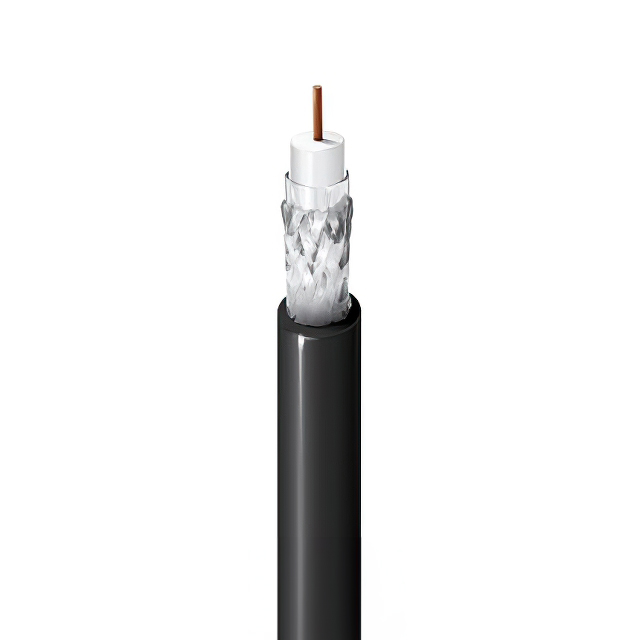

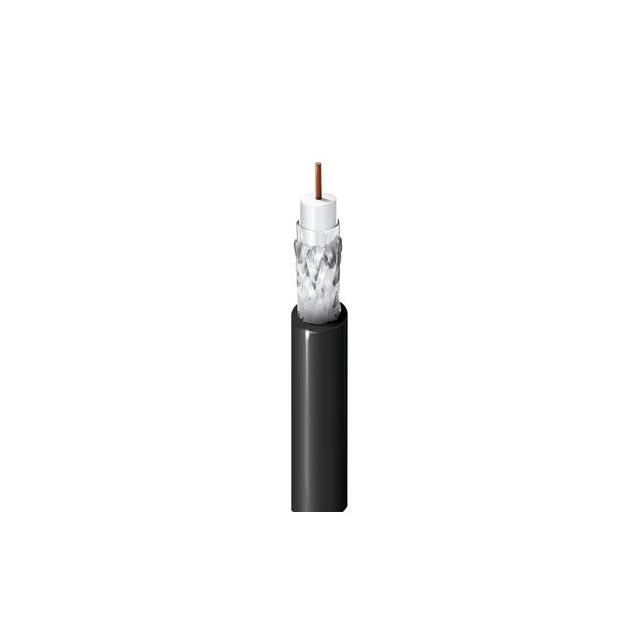

1525A Series
Manufacturer: Belden Inc.
Beta
⌘K
COAX 75 OHM RG11 14AWG
| Part | Shield Coverage [custom] | Conductor Material | Shield Material | VoP, Velocity of Propagation | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Dielectric Material | Conductor Strand | Cable Type | Jacket (Insulation) Material | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Cable Group | Jacket Color | Impedance | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 60 % 100 % | Copper Coated Steel | Aluminum | 83 | -50 °C | 80 °C | 0.28 in | 7.11 mm | Foam Polyethylene (FPE) | Solid | Coaxial | Polyethylene (PE) | 14.5 AWG | 0.393 in | 9.98 mm | 304.8 m | 1000 ft | RG-11 | Orange | 75 Ohms | Braid Foil |
 Belden Inc. | 60 % 100 % | Copper Coated Steel | Aluminum | 83 | -50 °C | 80 °C | 0.28 in | 7.11 mm | Foam Polyethylene (FPE) | Solid | Coaxial | Polyethylene (PE) | 14.5 AWG | 0.393 in | 9.98 mm | 304.8 m | 1000 ft | RG-11 | Black | 75 Ohms | Braid Foil |
