RS2 Series
Manufacturer: Adam Tech
Beta
⌘K
RECEPTACLE STRIP 8P 2.54MM PITCH
| Part | Insulation Material | Contact Material | Contact Shape | Contact Finish Thickness - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Connector Type | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Contact Finish - Post | Number of Rows [custom] | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Material Flammability Rating | Contact Finish - Mating | Voltage Rating | Number of Positions | Fastening Type | Termination | Contact Type | Number of Positions Loaded | Mounting Type | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

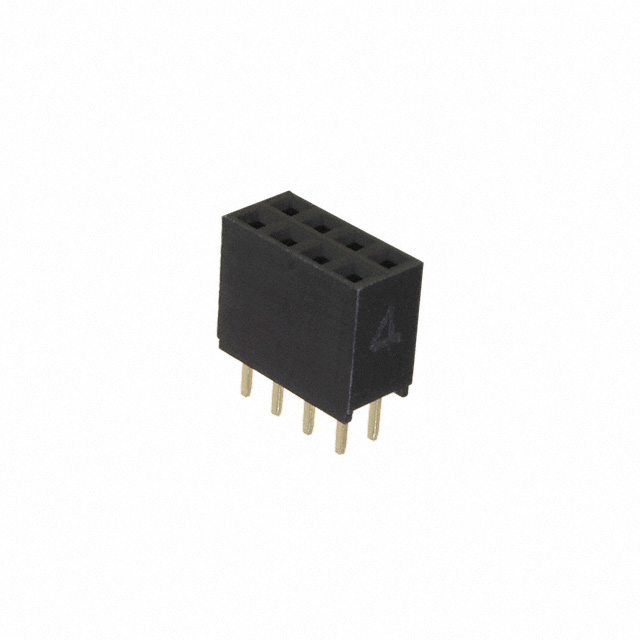

 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | Brass | Square | Flash | 0.1 in | 2.54 mm | Receptacle | 0.335 " | 8.51 mm | -40 C | 105 ░C | Black | Gold | 2 | 0.1 " | 2.54 mm | 3 A | UL94 V-0 | Gold | 250 VAC | 8 | Push-Pull | Solder | Forked | All | Through Hole | Flash | 0.118 in | 3 mm |

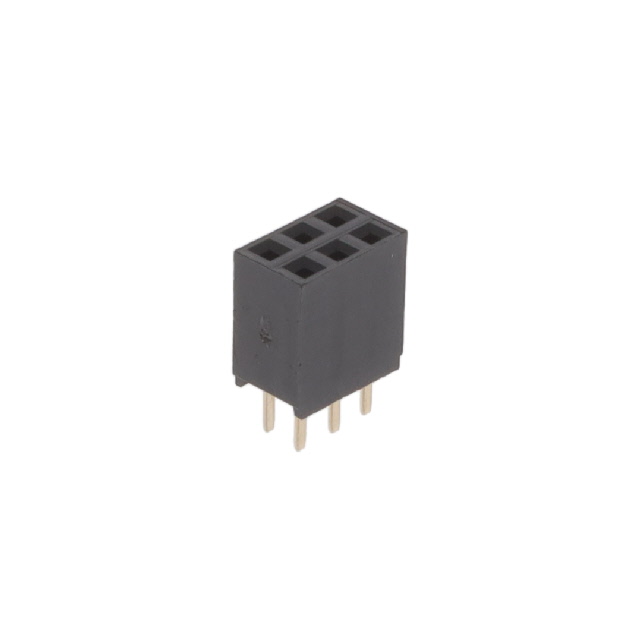

 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | Brass | Square | Flash | 0.1 in | 2.54 mm | Receptacle | 0.335 " | 8.51 mm | -40 C | 105 ░C | Black | Gold | 2 | 0.1 " | 2.54 mm | 3 A | UL94 V-0 | Gold | 250 VAC | 6 | Push-Pull | Solder | Forked | All | Through Hole | Flash | 0.118 in | 3 mm |
