2834082 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

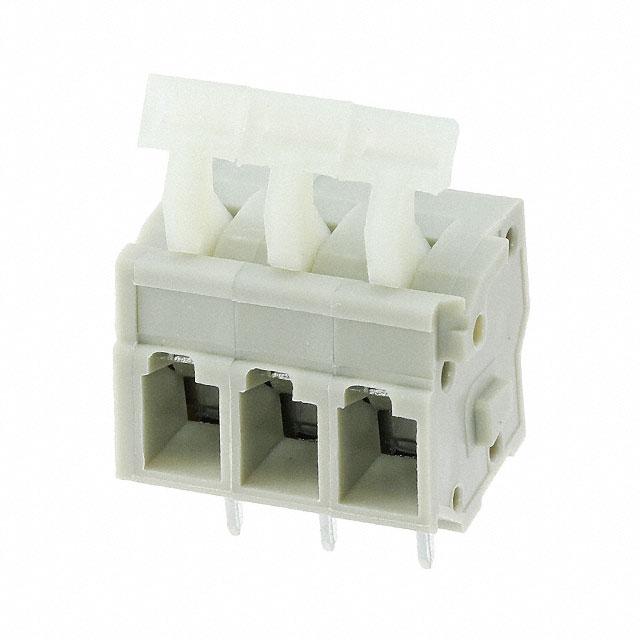

(2834082-2) 5.0MM SIDE ENTRY MSC 3P_GY
| Part | Current | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Color | Positions Per Level | Voltage | Wire Termination | Number of Levels | Contact Material - Plating [custom] | Features | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 20 A | -40 °C | 105 ░C | 5 mm | 0.197 in | Through Hole | 12 AWG | 28 AWG | Gray | 3 | 300 V | Screwless - Spring Cage Tension Clamp | 1 | Brass - Tin Plated | Interlocking (Side) Lever Actuated | Horizontal with Board |
