9514 Series
Manufacturer: Belden Inc.
Beta
⌘K

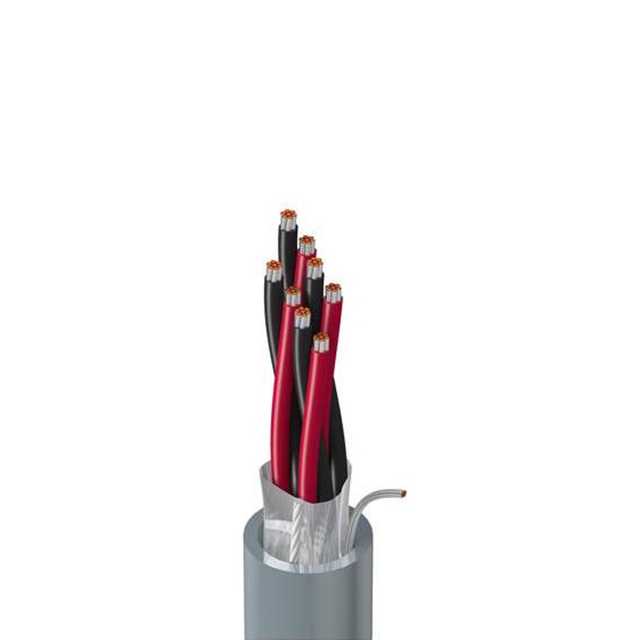

MULTI-PAIR 8COND 22AWG
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Number of Conductors | Shield Type | Jacket (Insulation) Material | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Features | Jacket Color | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Conductor Material | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 0.356 " | 9.04 mm | Multi-Pair | 8 | Foil | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 30 AWG | 7 | Instrumentation | Drain Wire Flame Retardant Rip Cord | Chrome | 300 VDC | -30 ░C | 105 ░C | 22 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | 0.042 in | 1.067 mm | ||
Belden Inc. | Aluminum | 100 % | 0.356 " | 9.04 mm | Multi-Pair | 8 | Foil | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 30 AWG | 7 | Instrumentation | Drain Wire Flame Retardant Rip Cord | Chrome | 300 VDC | -30 ░C | 105 ░C | 22 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | 0.042 in | 1.067 mm | 2500 ft | 762 m |
