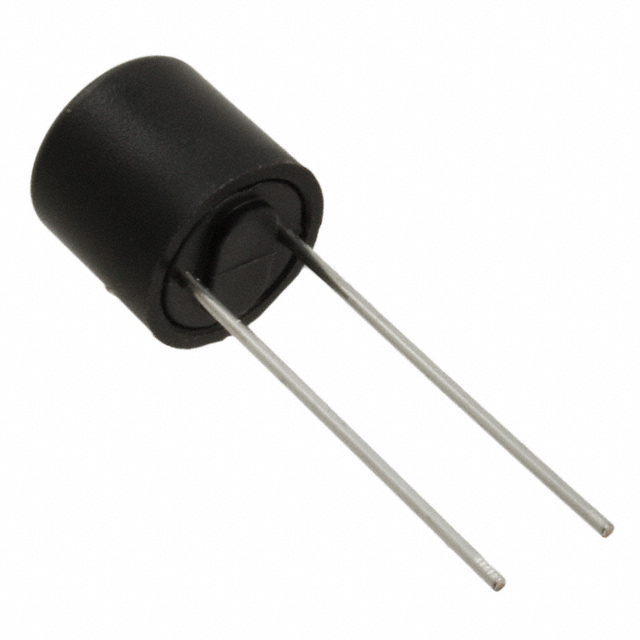

MSTU 250 Series

"MSTU 250, 2.5 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/

Manufacturer: SCHURTER Inc.

Catalog

"MSTU 250, 2.5 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/

Catalog

"MSTU 250, 2.5 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/

Part	Melting I˛t	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Fuse Type	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Voltage Rating - AC	Approval Agency	Mounting Type	Melting I²t	Package / Case	Breaking Capacity @ Rated Voltage
SCHURTER Inc. 0034.7106	0.0567	85 °C	-40 C	Slow Blow	Board Mount (Cartridge Style Excluded)	0.125 Amps	8.5 mm	8.5 mm	0.335 in	0.335 in	250 V	cULus	Through Hole	0.0567	Can Radial Vertical	50 A

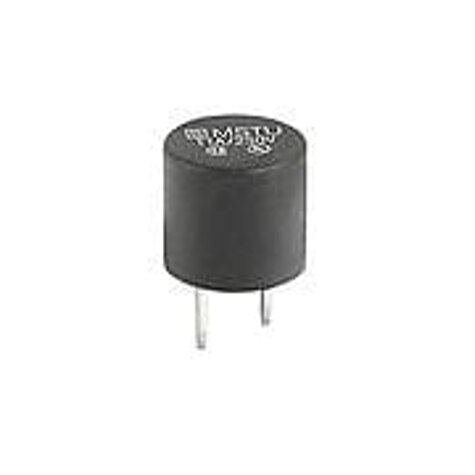

SCHURTER Inc. 0034.7206		85 °C	-40 C	Slow Blow	Board Mount (Cartridge Style Excluded)	0.125 Amps	8.5 mm	8.5 mm	0.335 in	0.335 in	250 V	cULus	Through Hole	0.0567	Can Radial Vertical	50 A
SCHURTER Inc. 0034.7322	142	85 °C	-40 C	Slow Blow	Board Mount (Cartridge Style Excluded)	5 A	8.5 mm	8.5 mm	0.335 in	0.335 in	250 V	cULus	Through Hole	142	Can Radial Vertical	50 A
SCHURTER Inc. 0034.7119	40.9	85 °C	-40 C	Slow Blow	Board Mount (Cartridge Style Excluded)	2.5 A	8.5 mm	8.5 mm	0.335 in	0.335 in	250 V	cULus	Through Hole	40.9	Can Radial Vertical	50 A
SCHURTER Inc. 0034.7223	287	85 °C	-40 C	Slow Blow	Board Mount (Cartridge Style Excluded)	6.3 A	8.5 mm	8.5 mm	0.335 in	0.335 in	250 V	cULus	Through Hole	287 I²t	Can Radial Vertical	50 A
SCHURTER Inc. 0034.7116		85 °C	-40 C	Slow Blow	Board Mount (Cartridge Style Excluded)	1.25 A	8.5 mm	8.5 mm	0.335 in	0.335 in	250 V	cULus	Through Hole	7.93 I²t	Can Radial Vertical	50 A
SCHURTER Inc. 0034.7219		85 °C	-40 C	Slow Blow	Board Mount (Cartridge Style Excluded)	2.5 A	8.5 mm	8.5 mm	0.335 in	0.335 in	250 V	cULus	Through Hole	40.9	Can Radial Vertical	50 A
SCHURTER Inc. 0034.7114		85 °C	-40 C	Slow Blow	Board Mount (Cartridge Style Excluded)	800 mA	8.5 mm	8.5 mm	0.335 in	0.335 in	250 V	cULus	Through Hole	4.05	Can Radial Vertical	50 A
SCHURTER Inc. 0034.7221	67.2	85 °C	-40 C	Slow Blow	Board Mount (Cartridge Style Excluded)	4 A	8.5 mm	8.5 mm	0.335 in	0.335 in	250 V	cULus	Through Hole	67.2 I²t	Can Radial Vertical	50 A
SCHURTER Inc. 0034.7319		85 °C	-40 C	Slow Blow	Board Mount (Cartridge Style Excluded)	2.5 A	8.5 mm	8.5 mm	0.335 in	0.335 in	250 V	cULus	Through Hole	40.9	Can Radial Vertical	50 A
