PTC28 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 56POS 2.54MM

Part	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Color	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Mounting Type	Current Rating (Amps)	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Style	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Termination	Insulation Material	Contact Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length

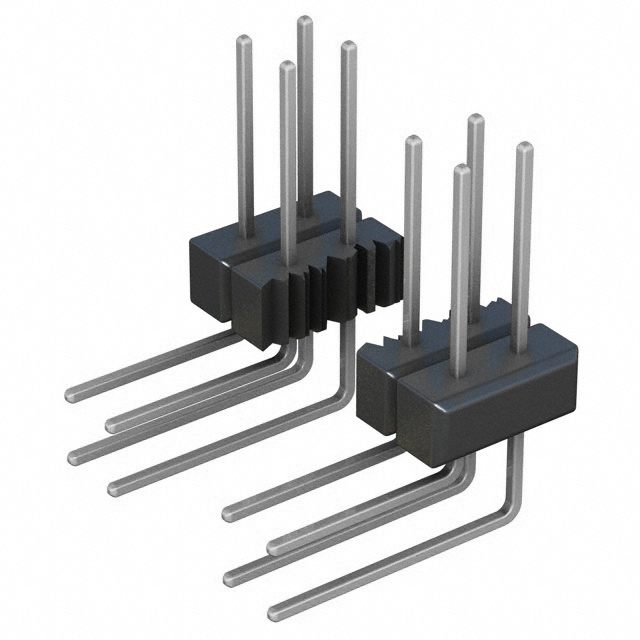

Sullins Connector Solutions PTC28DBCN	Tin	8.13 mm	0.32 in	Black	UL94 V-0	0.23 in	5.84 mm	Right Angle Through Hole	3 A	56	2.54 µm	100 µin	Square	Board to Board Cable	6.1 mm	0.24 in	2	Header	100 çin	2.54 çm	Push-Pull	Unshrouded	0.1 in	2.54 mm	Copper Alloy	Solder	Polyester Thermoplastic	Male Pin	All	0.1 "	2.54 mm

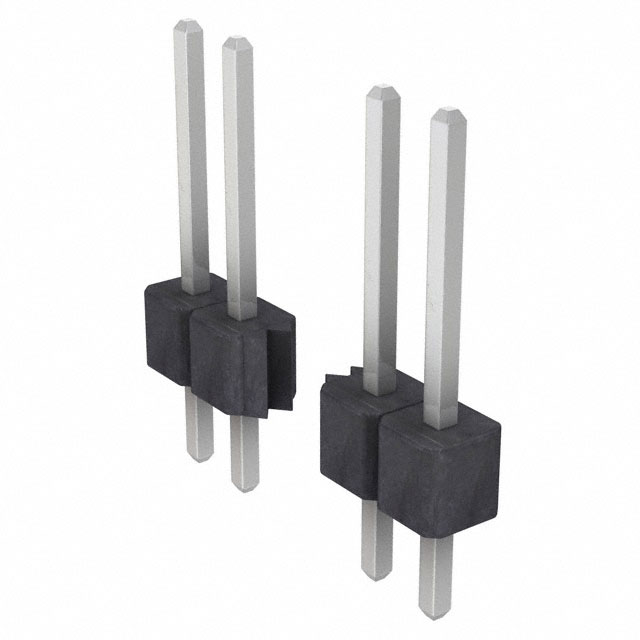

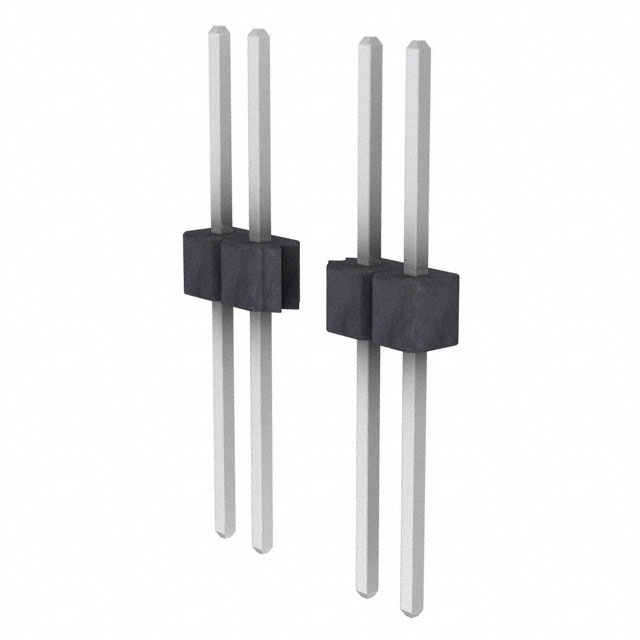

Sullins Connector Solutions PTC28SFAN	Tin	3.05 mm	0.12 in	Black	UL94 V-0	0.318 in	8.08 mm	Through Hole	3 A	28	2.54 µm	100 µin	Square	Board to Board Cable				Header	100 çin	2.54 çm	Push-Pull	Unshrouded			Copper Alloy	Solder	Polyester Thermoplastic	Male Pin	All	0.1 "	2.54 mm	1	13.67 mm	0.538 in	0.1 in	2.54 mm
Sullins Connector Solutions PTC28DACN	Tin	8.13 mm	0.32 in	Black	UL94 V-0	0.23 in	5.84 mm	Through Hole	3 A	56	2.54 µm	100 µin	Square	Board to Board Cable			2	Header	100 çin	2.54 çm	Push-Pull	Unshrouded	0.1 in	2.54 mm	Copper Alloy	Solder	Polyester Thermoplastic	Male Pin	All	0.1 "	2.54 mm				0.1 in	2.54 mm	16.51 mm	0.65 in

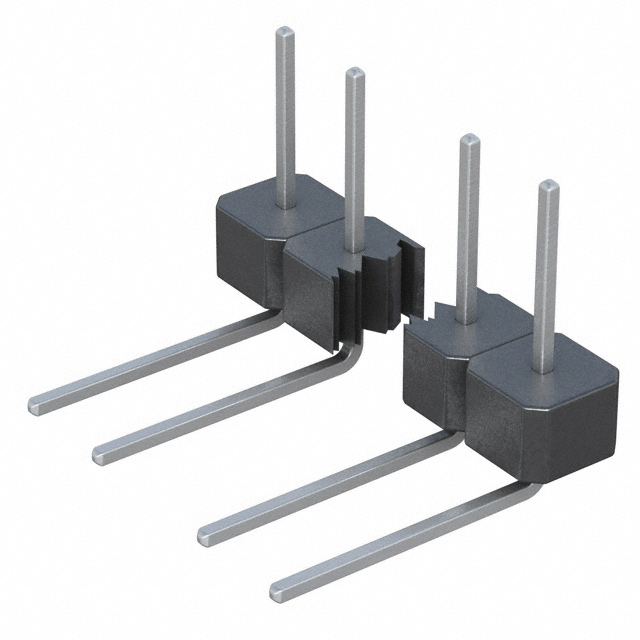

Sullins Connector Solutions PTC28SBCN	Tin	8.13 mm	0.32 in	Black	UL94 V-0	0.23 in	5.84 mm	Right Angle Through Hole	3 A	28	2.54 µm	100 µin	Square	Board to Board Cable				Header	100 çin	2.54 çm	Push-Pull	Unshrouded			Copper Alloy	Solder	Polyester Thermoplastic	Male Pin	All	0.1 "	2.54 mm	1			0.14 in	3.56 mm

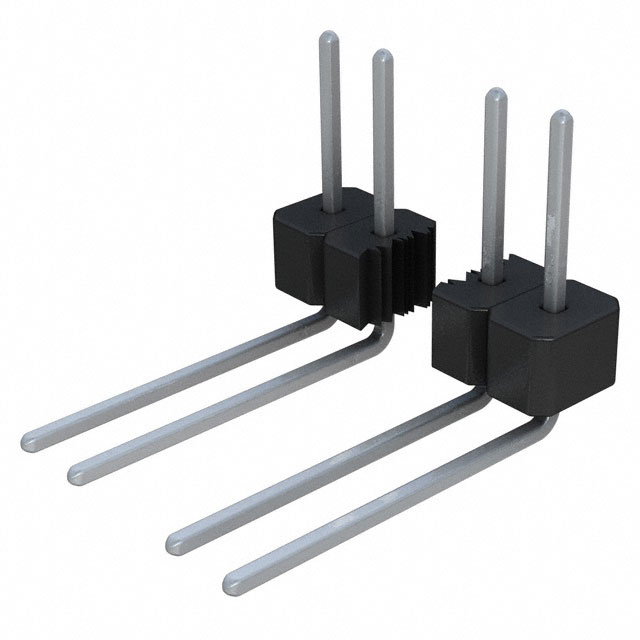

Sullins Connector Solutions PTC28SBDN	Tin	10.67 mm	0.42 in	Black	UL94 V-0	0.23 in	5.84 mm	Right Angle Through Hole	3 A	28	2.54 µm	100 µin	Square	Board to Board Cable				Header	100 çin	2.54 çm	Push-Pull	Unshrouded			Copper Alloy	Solder	Polyester Thermoplastic	Male Pin	All	0.1 "	2.54 mm	1			0.14 in	3.56 mm

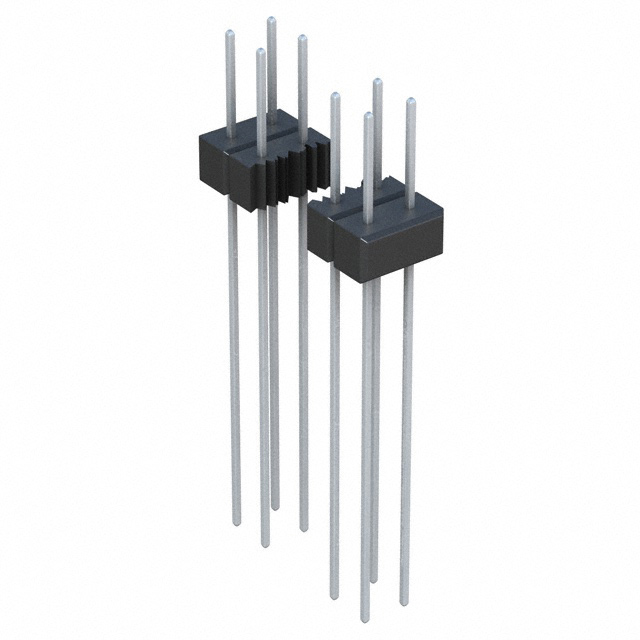

Sullins Connector Solutions PTC28DAHN	Tin	20.83 mm	0.82 in	Black	UL94 V-0	0.23 in	5.84 mm	Through Hole	3 A	56	2.54 µm	100 µin	Square	Board to Board Cable			2	Header	100 çin	2.54 çm	Push-Pull	Unshrouded	0.1 in	2.54 mm	Copper Alloy	Solder	Polyester Thermoplastic	Male Pin	All	0.1 "	2.54 mm				0.1 in	2.54 mm	29.21 mm	1.15 in

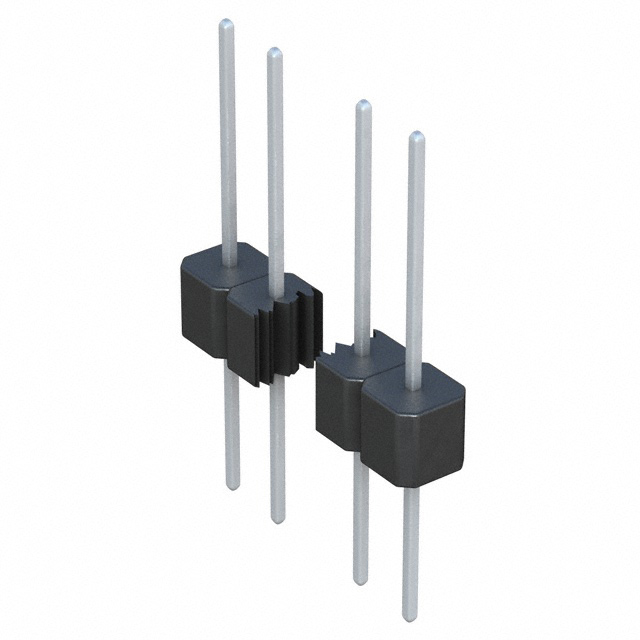

Sullins Connector Solutions PTC28SFBN	Tin	5.58 mm	0.22 in	Black	UL94 V-0	0.318 in	8.08 mm	Through Hole	3 A	28	2.54 µm	100 µin	Square	Board to Board Cable				Header	100 çin	2.54 çm	Push-Pull	Unshrouded			Copper Alloy	Solder	Polyester Thermoplastic	Male Pin	All	0.1 "	2.54 mm	1			0.1 in	2.54 mm	16.21 mm	0.638 in
Sullins Connector Solutions PTC28DFAN	Tin	3.05 mm	0.12 in	Black	UL94 V-0	0.318 in	8.08 mm	Through Hole	3 A	56	2.54 µm	100 µin	Square	Board to Board Cable			2	Header	100 çin	2.54 çm	Push-Pull	Unshrouded	0.1 in	2.54 mm	Copper Alloy	Solder	Polyester Thermoplastic	Male Pin	All	0.1 "	2.54 mm		13.67 mm	0.538 in	0.1 in	2.54 mm

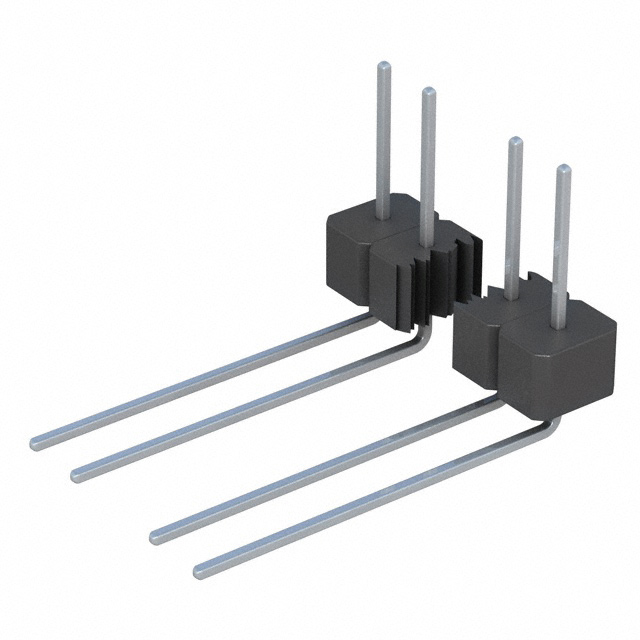

Sullins Connector Solutions PTC28SBEN	Tin	13.21 mm	0.52 in	Black	UL94 V-0	0.23 in	5.84 mm	Right Angle Through Hole	3 A	28	2.54 µm	100 µin	Square	Board to Board Cable				Header	100 çin	2.54 çm	Push-Pull	Unshrouded			Copper Alloy	Solder	Polyester Thermoplastic	Male Pin	All	0.1 "	2.54 mm	1			0.14 in	3.56 mm

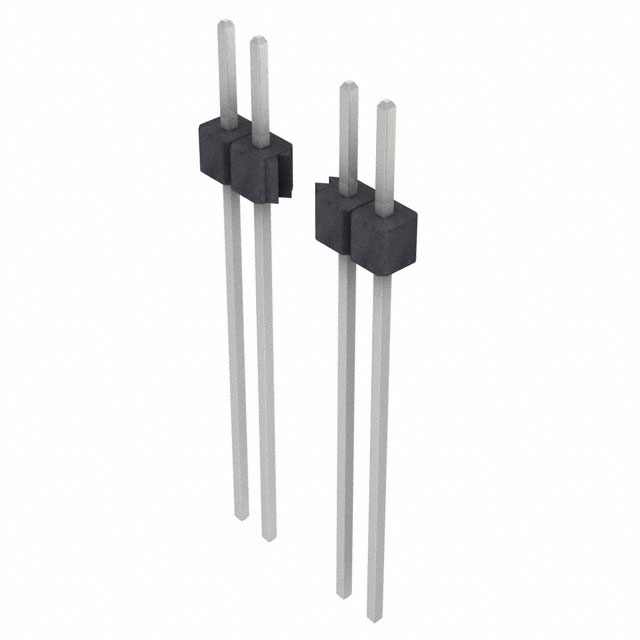

Sullins Connector Solutions PTC28SAHN	Tin	20.83 mm	0.82 in	Black	UL94 V-0	0.23 in	5.84 mm	Through Hole	3 A	28	2.54 µm	100 µin	Square	Board to Board Cable				Header	100 çin	2.54 çm	Push-Pull	Unshrouded			Copper Alloy	Solder	Polyester Thermoplastic	Male Pin	All	0.1 "	2.54 mm	1			0.1 in	2.54 mm	29.21 mm	1.15 in
