6200UE Series
Manufacturer: Belden Inc.
Beta
⌘K

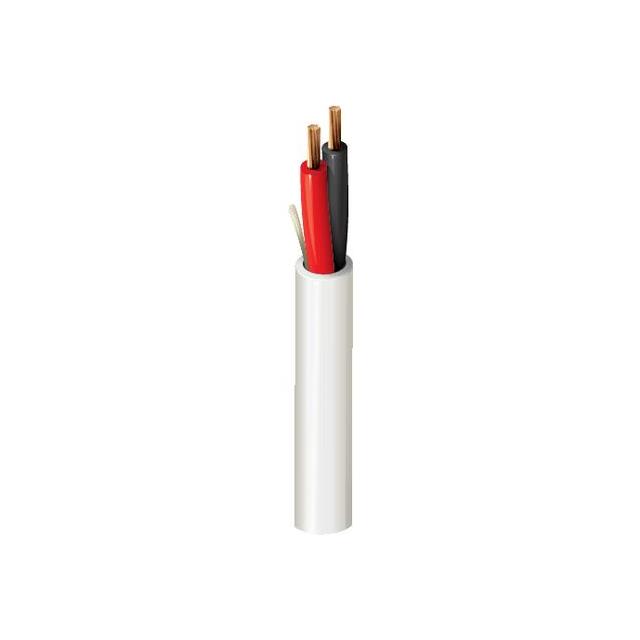

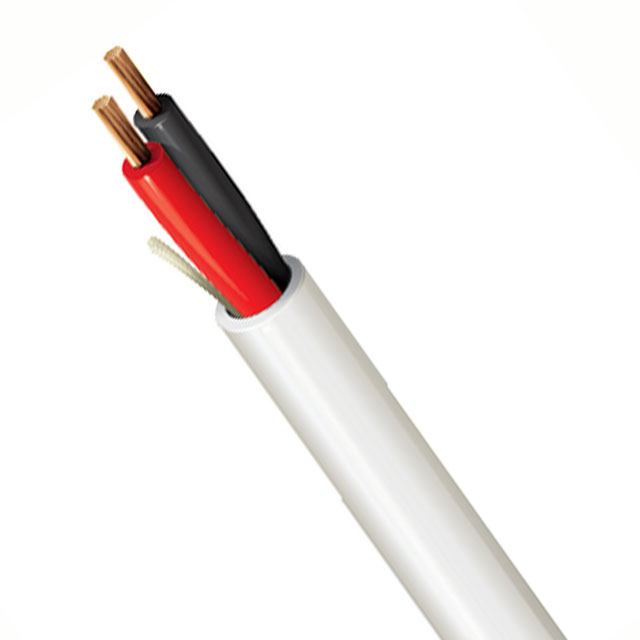

CABLE 2COND 16AWG BLACK
| Part | Features | Cable Type | Jacket (Insulation) Material | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Usage | Jacket Color | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Voltage | Ratings | Number of Conductors | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Rip Cord | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 0.381 mm | 0.015 in | Security Sound | Black | Low Smoke Poly-Vinyl Chloride (LSPVC) | 4.67 mm | 0.184 in | 16 AWG | Copper Tinned | 75 ░C | 0 °C | 19 | 29 | 76.2 m | 250 ft | 300 VDC | UL Style CMP | 2 | ||
Belden Inc. | Rip Cord | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 0.381 mm | 0.015 in | Security Sound | Blue | Low Smoke Poly-Vinyl Chloride (LSPVC) | 4.67 mm | 0.184 in | 16 AWG | Copper Tinned | 75 ░C | 0 °C | 19 | 29 | 304.8 m | 1000 ft | 300 VDC | UL Style CMP | 2 | ||
Belden Inc. | Rip Cord | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 0.381 mm | 0.015 in | Security Sound | Black | Low Smoke Poly-Vinyl Chloride (LSPVC) | 4.67 mm | 0.184 in | 16 AWG | Copper Tinned | 75 ░C | 0 °C | 19 | 29 | 152.4 m | 500 ft | 300 VDC | UL Style CMP | 2 | ||
Belden Inc. | Rip Cord | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 0.381 mm | 0.015 in | Security Sound | Natural | Low Smoke Poly-Vinyl Chloride (LSPVC) | 4.67 mm | 0.184 in | 16 AWG | Copper Tinned | 75 ░C | 0 °C | 19 | 29 | 304.8 m | 1000 ft | 300 VDC | UL Style CMP | 2 | ||
Belden Inc. | Rip Cord | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 0.381 mm | 0.015 in | Security Sound | White | Low Smoke Poly-Vinyl Chloride (LSPVC) | 4.67 mm | 0.184 in | 16 AWG | Copper Tinned | 75 ░C | 0 °C | 19 | 29 | 304.8 m | 1000 ft | 300 VDC | UL Style CMP | 2 | ||
Belden Inc. | Rip Cord | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 0.381 mm | 0.015 in | Security Sound | Gray | Low Smoke Poly-Vinyl Chloride (LSPVC) | 4.67 mm | 0.184 in | 16 AWG | Copper Tinned | 75 ░C | 0 °C | 19 | 29 | 304.8 m | 1000 ft | 300 VDC | UL Style CMP | 2 | ||
Belden Inc. | Rip Cord | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 0.381 mm | 0.015 in | Security Sound | Natural | Low Smoke Poly-Vinyl Chloride (LSPVC) | 4.67 mm | 0.184 in | 16 AWG | Copper Tinned | 75 ░C | 0 °C | 19 | 29 | 304.8 m | 1000 ft | 300 VDC | UL Style CMP | 2 | ||
Belden Inc. | Rip Cord | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 0.381 mm | 0.015 in | Security Sound | White | Low Smoke Poly-Vinyl Chloride (LSPVC) | 4.67 mm | 0.184 in | 16 AWG | Copper Tinned | 75 ░C | 0 °C | 19 | 29 | 152.4 m | 500 ft | 300 VDC | UL Style CMP | 2 | ||
Belden Inc. | Rip Cord | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 0.381 mm | 0.015 in | Security Sound | Yellow | Low Smoke Poly-Vinyl Chloride (LSPVC) | 4.67 mm | 0.184 in | 16 AWG | Copper Tinned | 75 ░C | 0 °C | 19 | 29 | 304.8 m | 1000 ft | 300 VDC | UL Style CMP | 2 | ||
 Belden Inc. | Rip Cord | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) | 0.381 mm | 0.015 in | Commercial Audio | Natural | Low Smoke Poly-Vinyl Chloride (LSPVC) | 4.47 mm | 0.176 in | 16 AWG | Copper Bare | 75 ░C | 0 °C | 19 | 29 | 15.24 m 152.4 m | 50 ft 500 ft | UL Style CMP | 2 | 100 ft | 30.5 m |
