RC6-4 Series

Catalog

TEM 23.5X23.5X3.33MM

Part	Resistance	Type	Current - Max [Max]	Voltage - Max [Max]	Operating Temperature	Number of Stages	Features	Qmax @ Th	Delta Tmax @ Th	Size / Dimension [y]	Size / Dimension [x]	Height [z]
Marlow Industries, Inc. RC6-4-01	1.8 Ohms	TEC (Thermoelectric Cooler)	3.7 A	8.2 V	130 °C	1	Lead Wires	20 W	65 °C	23.5 mm	28 mm	3.43 mm
Marlow Industries, Inc. RC6-4-01S	1.8 Ohms	TEC (Thermoelectric Cooler)	3.7 A	8.2 V	130 °C	1	Lead Wires Sealed	20 W	65 °C	23.5 mm	28 mm	3.43 mm

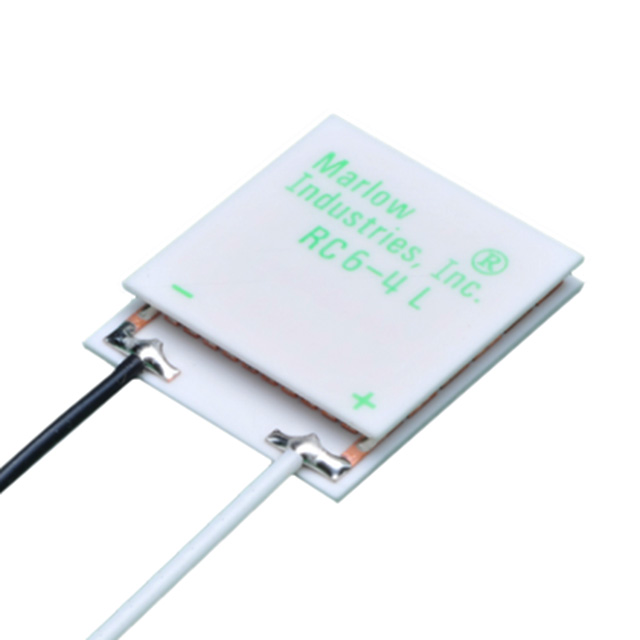

Marlow Industries, Inc. RC6-4-01LS	1.8 Ohms	TEC (Thermoelectric Cooler)	3.7 A	8.2 V	130 °C	1	Lapped Lead Wires Sealed	20 W	65 °C	23.5 mm	28 mm	3.33 mm

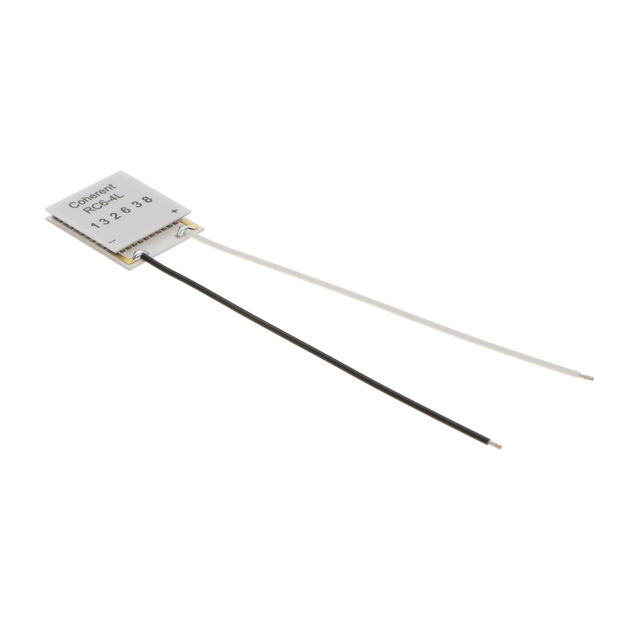

Marlow Industries, Inc. RC6-4-01L	1.8 Ohms	TEC (Thermoelectric Cooler)	3.7 A	8.2 V	130 °C	1	Lapped Lead Wires	20 W	65 °C	23.5 mm	28 mm	3.33 mm
