2N7001 Series

Automotive 1-bit dual-supply buffered voltage signal translator

Catalog

Automotive 1-bit dual-supply buffered voltage signal translator

Part	Voltage - VCCB [Max]	Voltage - VCCB [Min]	Qualification	Mounting Type	Output Signal	Translator Type	Grade	Data Rate	Number of Circuits	Channels per Circuit	Supplier Device Package	Voltage - VCCA [Max]	Voltage - VCCA [Min]	Channel Type	Input Signal	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Supplier Device Package [y]	Supplier Device Package [x]
Texas Instruments 2N7001TQDCKRQ1	3.6 V	1.65 V	AEC-Q100	Surface Mount	CMOS	Voltage Level	Automotive	100 Mbps	1	1	SC-70-5	3.6 V	1.65 V	Unidirectional	CMOS	5-TSSOP SC-70-5 SOT-353	125 °C	-40 °C	Push-Pull
Texas Instruments 2N7001TDCKR	3.6 V	1.65 V		Surface Mount	CMOS	Voltage Level		100 Mbps	1	1	SC-70-5	3.6 V	1.65 V	Unidirectional	CMOS	5-TSSOP SC-70-5 SOT-353	125 °C	-40 C	Push-Pull

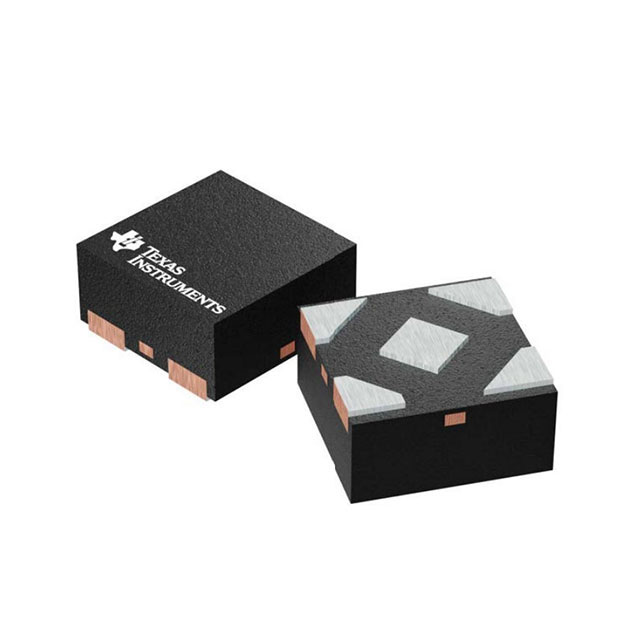

Texas Instruments 2N7001TDPWR	3.6 V	1.65 V		Surface Mount	CMOS	Voltage Level		100 Mbps	1	1	5-X2SON	3.6 V	1.65 V	Unidirectional	CMOS	4-XFDFN Exposed Pad	125 °C	-40 C	Push-Pull	0.8	0.8

Catalog

Automotive 1-bit dual-supply buffered voltage signal translator

Description

The AEC-Q100 qualified 2N7001T-Q1 device is a single-bit buffered voltage signal converter that uses two separate configurable power-supply rails to up or down translate a unidirectional signal. The device is operational with both VCCAand VCCBsupplies down to 1.65 V and up to 3.60 V. VCCAdefines the input threshold voltage on the A input. VCCBdefines the output drive voltage on the B output. This device is fully specified for partial-power-down applications using the Ioffcurrent. The Ioffprotection circuitry ensures that no excessive current is drawn from or to an input, output, or combined I/O that is biased to a specific voltage while the device is powered down. The VCCisolation feature ensures that if either VCCAor VCCBis less than 100 mV, the output port (B) enters a high-impedance state. The AEC-Q100 qualified 2N7001T-Q1 device is a single-bit buffered voltage signal converter that uses two separate configurable power-supply rails to up or down translate a unidirectional signal. The device is operational with both VCCAand VCCBsupplies down to 1.65 V and up to 3.60 V. VCCAdefines the input threshold voltage on the A input. VCCBdefines the output drive voltage on the B output. This device is fully specified for partial-power-down applications using the Ioffcurrent. The Ioffprotection circuitry ensures that no excessive current is drawn from or to an input, output, or combined I/O that is biased to a specific voltage while the device is powered down. The VCCisolation feature ensures that if either VCCAor VCCBis less than 100 mV, the output port (B) enters a high-impedance state.
