ISL91108 Series

Manufacturer: Renesas Electronics Corporation

Catalog

HIGH EFFICIENCY BUCK-BOOST REGULATOR WITH 4.2A SWITCHES

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Output Configuration	Function	Topology	Package / Case	Voltage - Input (Min) [Min]	Output Type	Number of Outputs	Voltage - Input (Max) [Max]	Frequency - Switching	Mounting Type	Current - Output	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]	Output Type	Regulator Topology	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Board Type	Main Purpose	Voltage - Output	Outputs and Type	Outputs and Type	Contents
Renesas Electronics Corporation ISL91108IINZ-T7A	85 °C	-40 °C	20-WLCSP	Positive	Step-Up/Step-Down	Buck-Boost	20-UFBGA WLCSP	1.8 V	1.81 mOhm	1	5.5 V	2.6 MHz	Surface Mount	3.7 A	3.3 V
Renesas Electronics Corporation ISL91108IIAZ-T	85 °C	-40 °C	20-WLCSP	Positive	Step-Up/Step-Down	Buck-Boost	20-UFBGA WLCSP	1.8 V		1	5.5 V	2.6 MHz	Surface Mount	3.7 A	1 V	5.2 V	Adjustable

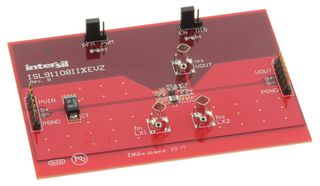

Renesas Electronics Corporation ISL91108IINR-EVZ												2.5 MHz		1.5 A				Buck-Boost	ISL91108	1.8 V	5.5 V	Board(s)	Fully Populated	DC/DC Step Up or Down	3.3 V	Non-Isolated	1

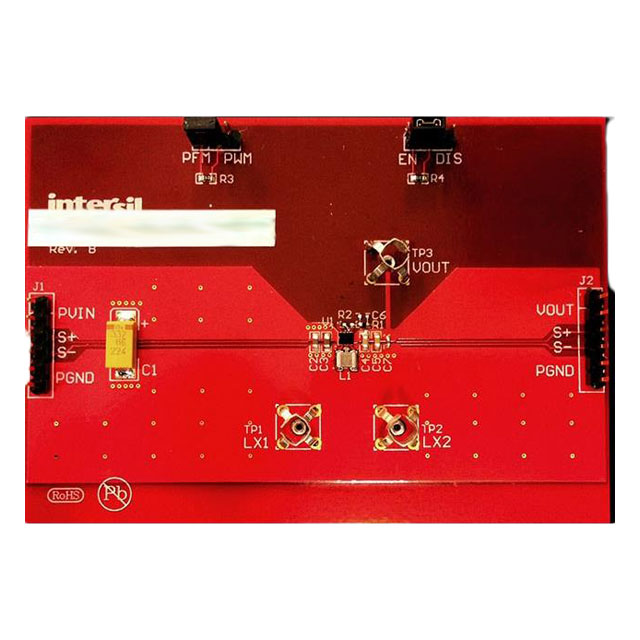

Renesas Electronics Corporation ISL91108IIN-EVZ												2.5 MHz		1.5 A				Buck-Boost	ISL91108	1.8 V	5.5 V			DC/DC Step Up or Down	3.3 V	1 Non-Isolated Output		Board(s)
Renesas Electronics Corporation ISL91108IINZ-T	85 °C	-40 °C	20-WLCSP	Positive	Step-Up/Step-Down	Buck-Boost	20-UFBGA WLCSP	1.8 V	1.81 mOhm	1	5.5 V	2.6 MHz	Surface Mount	3.7 A	3.3 V
Renesas Electronics Corporation ISL91108IIAZ-T7A	85 °C	-40 °C	20-WLCSP	Positive	Step-Up/Step-Down	Buck-Boost	20-UFBGA WLCSP	1.8 V		1	5.5 V	2.6 MHz	Surface Mount	3.7 A	1 V	5.2 V	Adjustable
Renesas Electronics Corporation ISL91108IIA-EVZ												2.5 MHz		1.5 A				Buck-Boost	ISL91108	1.8 V	5.5 V	Board(s)	Fully Populated	DC/DC Step Up or Down	3.3 V	Non-Isolated	1
