3345 Series

Catalog

TERMINAL,SOLIS R 12-10 5/16

Part	Terminal Type	Contact Finish	Width - Outer Edges [custom]	Width - Outer Edges [custom]	Termination	Contact Material	Insulation	Features	Mounting Type	Thickness	Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]

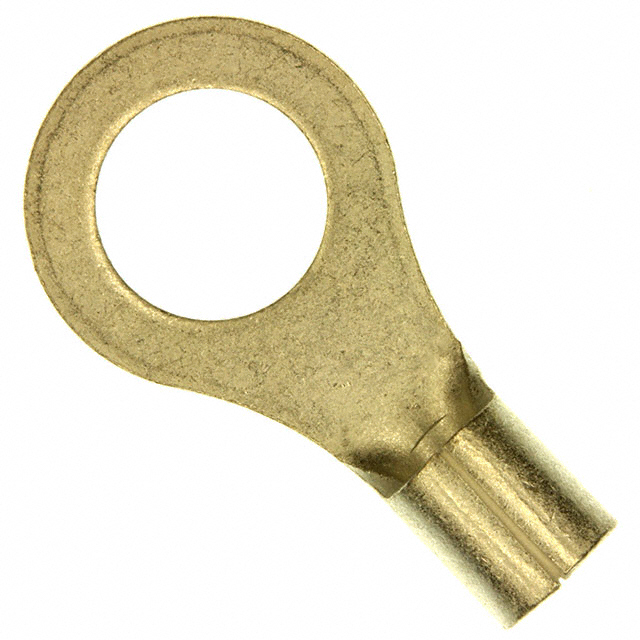

TE Connectivity Raychem Cable Protection 33459	Circular	Tin	13.49 mm	0.531 "	Crimp	Copper	Non-Insulated	Brazed Seam Serrated Termination	Free Hanging (In-Line)	0.99 mm	0.039 in	12 AWG	10 AWG	25.5 mm	1.004 "	0.3125 Stud

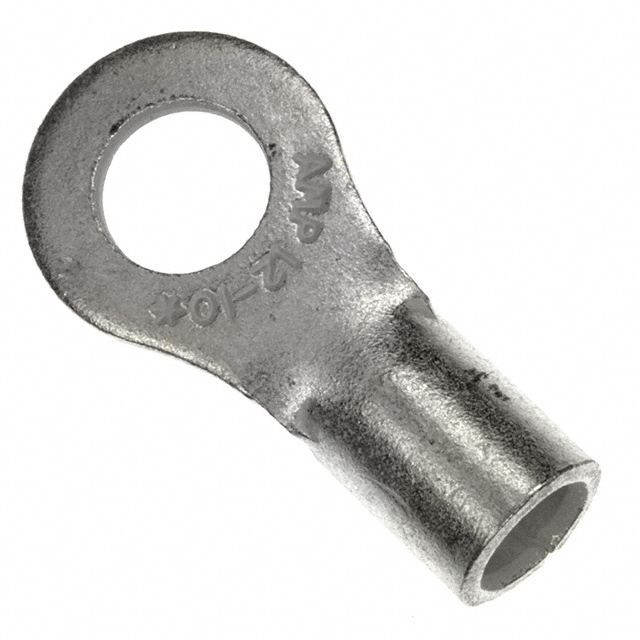

TE Connectivity Raychem Cable Protection 33457	Circular	Tin			Crimp	Copper	Non-Insulated	Brazed Seam Serrated Termination	Free Hanging (In-Line)	0.99 mm	0.039 in	12 AWG	10 AWG	19.43 mm	0.765 in	10 Stud	0.375 in	9.53 mm
