305-066 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 66POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Features	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Positions/Bay/Row	Gender	Card Type	Number of Rows [custom]	Contact Finish	Termination

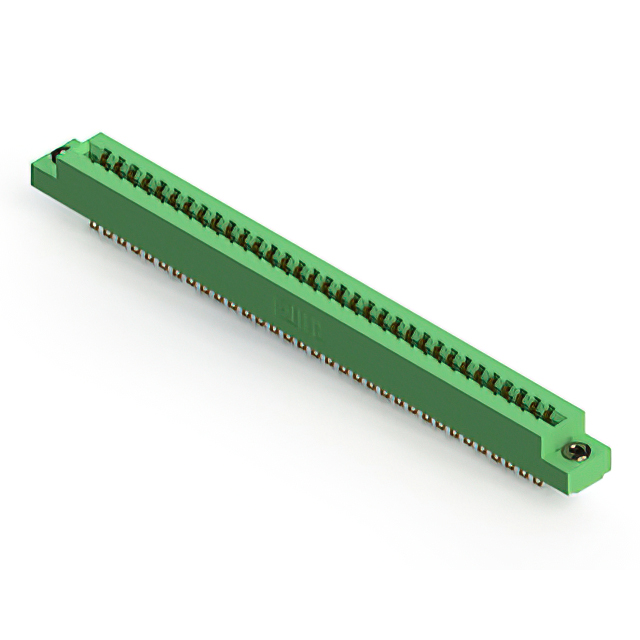

EDAC Inc. 305-066-555-203	Polyester Thermoplastic	2	Card Extender	Green	-40 C	105 ░C	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	0.116 "	Floating Bobbin Flush Mount	2.95 mm	66	Semi Bellows	0.25 Ám	10 Áin	Dual	33	Female	Non Specified - Dual Edge	2	Gold	Solder

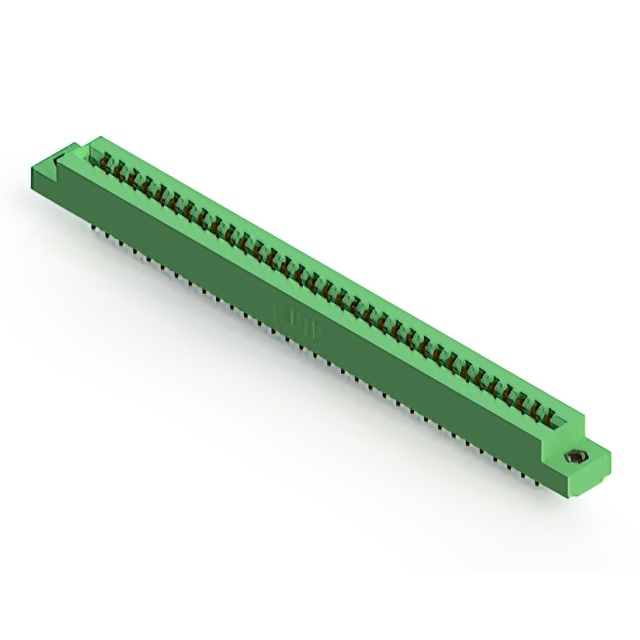

EDAC Inc. 305-066-556-508	Polyester Thermoplastic	2	Card Extender	Green	-40 C	105 ░C	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount		4-40 Flush Mount Threaded Insert Top Opening		66	Semi Bellows	0.25 Ám	10 Áin	Dual	33	Female	Non Specified - Dual Edge	2	Gold	Solder

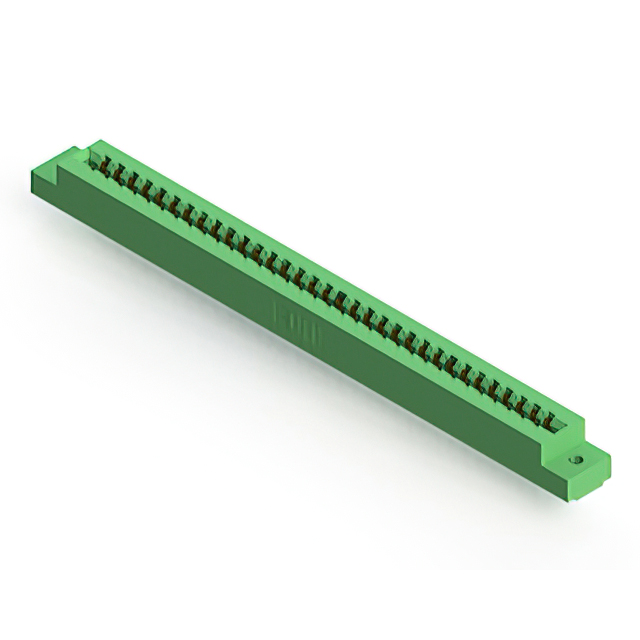

EDAC Inc. 305-066-521-502	Polyester Thermoplastic	2		Green	-40 C	105 ░C	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	66	Semi Bellows	0.25 Ám	10 Áin	Dual	33	Female	Non Specified - Dual Edge	2	Gold	Solder

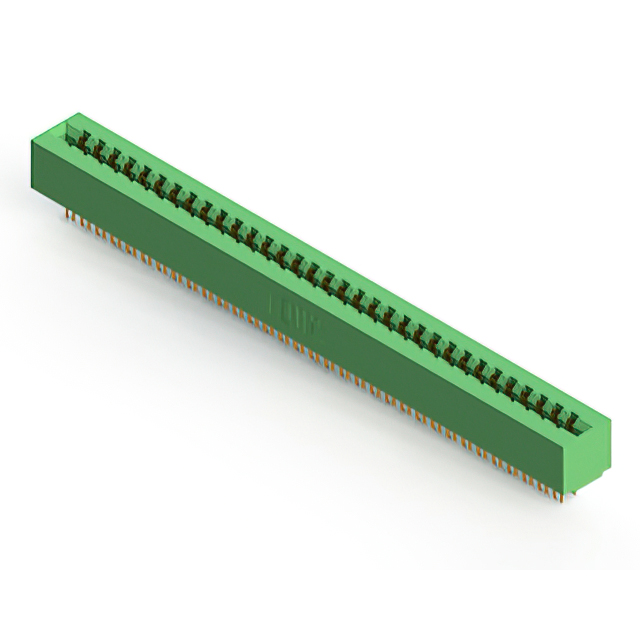

EDAC Inc. 305-066-500-501	Polyester Thermoplastic	2		Green	-40 C	105 ░C	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Free Hanging (In-Line)				66	Semi Bellows	0.25 Ám	10 Áin	Dual	33	Female	Non Specified - Dual Edge	2	Gold	Solder Eyelet(s)

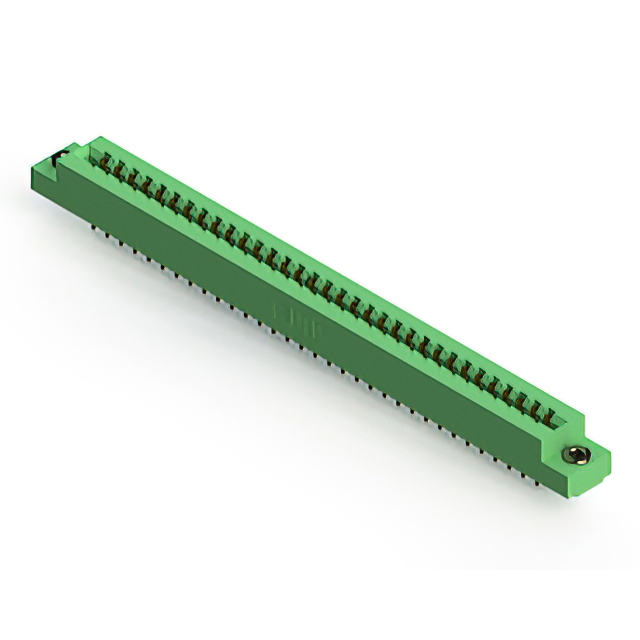

EDAC Inc. 305-066-556-203	Polyester Thermoplastic	2	Card Extender	Green	-40 C	105 ░C	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	0.116 "	Floating Bobbin Flush Mount	2.95 mm	66	Semi Bellows	0.25 Ám	10 Áin	Dual	33	Female	Non Specified - Dual Edge	2	Gold	Solder
EDAC Inc. 305-066-520-558	Polyester Thermoplastic	2		Green	-40 C	105 ░C	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole		4-40 Flush Mount Threaded Insert Top Opening		66	Semi Bellows	0.25 Ám	10 Áin	Dual	33	Female	Non Specified - Dual Edge	2	Gold	Solder

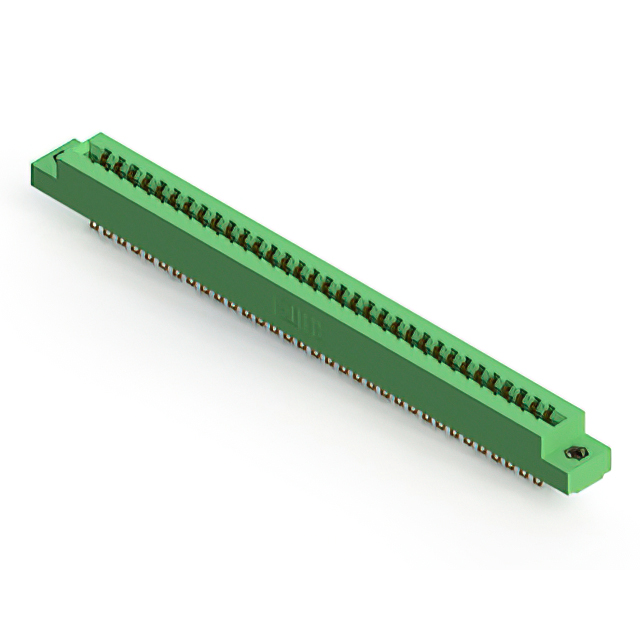

EDAC Inc. 305-066-555-208	Polyester Thermoplastic	2	Card Extender	Green	-40 C	105 ░C	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount		4-40 Flush Mount Threaded Insert Top Opening		66	Semi Bellows	0.25 Ám	10 Áin	Dual	33	Female	Non Specified - Dual Edge	2	Gold	Solder
EDAC Inc. 305-066-555-504	Polyester Thermoplastic	2	Card Extender	Green	-40 C	105 ░C	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	66	Semi Bellows	0.25 Ám	10 Áin	Dual	33	Female	Non Specified - Dual Edge	2	Gold	Solder
EDAC Inc. 305-066-555-502	Polyester Thermoplastic	2	Card Extender	Green	-40 C	105 ░C	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	66	Semi Bellows	0.25 Ám	10 Áin	Dual	33	Female	Non Specified - Dual Edge	2	Gold	Solder

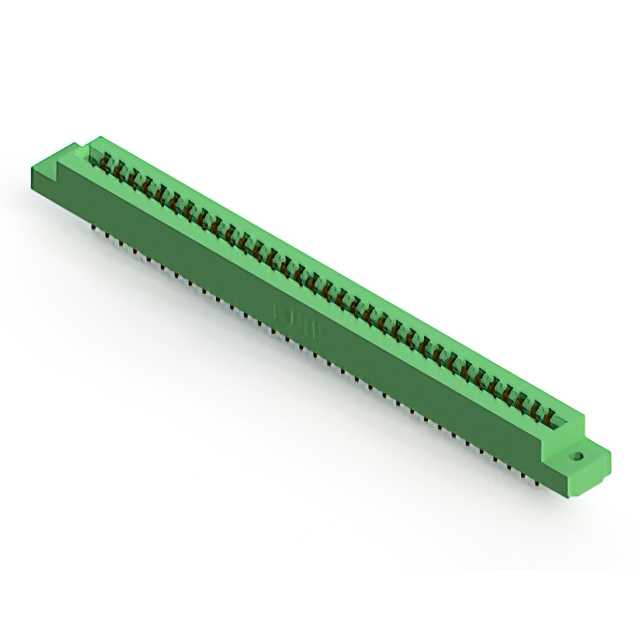

EDAC Inc. 305-066-556-202	Polyester Thermoplastic	2	Card Extender	Green	-40 C	105 ░C	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	66	Semi Bellows	0.25 Ám	10 Áin	Dual	33	Female	Non Specified - Dual Edge	2	Gold	Solder
