082-665 Series
Manufacturer: Amphenol RF
Beta
⌘K

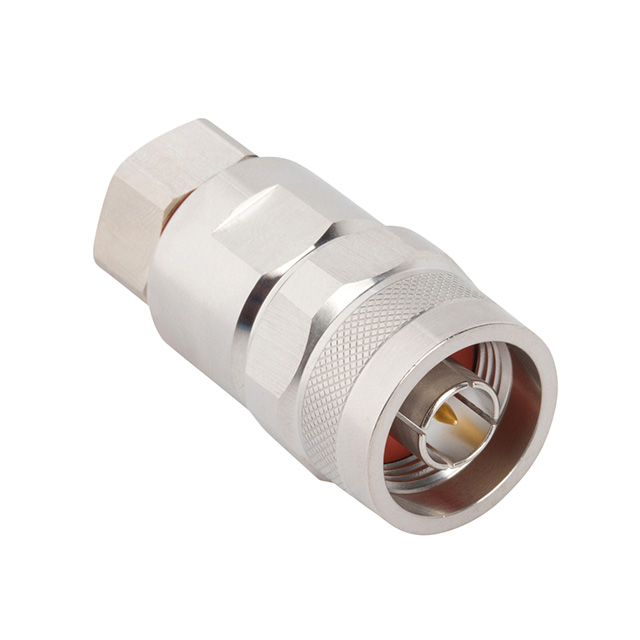

CONN N TYPE FIELD INSTALLABLE
| Part | Cable Group | Housing Color | Connector Style | Number of Ports | Mounting Type | Ingress Protection | Body Material | Mating Cycles | Connector Type | Impedance | Features | Includes | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Shield Termination | Center Contact Plating | Frequency - Max [Max] | Center Contact Material | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol RF | LMR-400 | Silver | N Type | 1 | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Brass | 500 | Male Pin Plug | 50 Ohms | Field Installable | 1 Clamp 1 Connector | Polytetrafluoroethylene (PTFE) | 155 °C | -55 °C | Clamp | Gold | 6000 MHz | Beryllium Copper | White Bronze |
