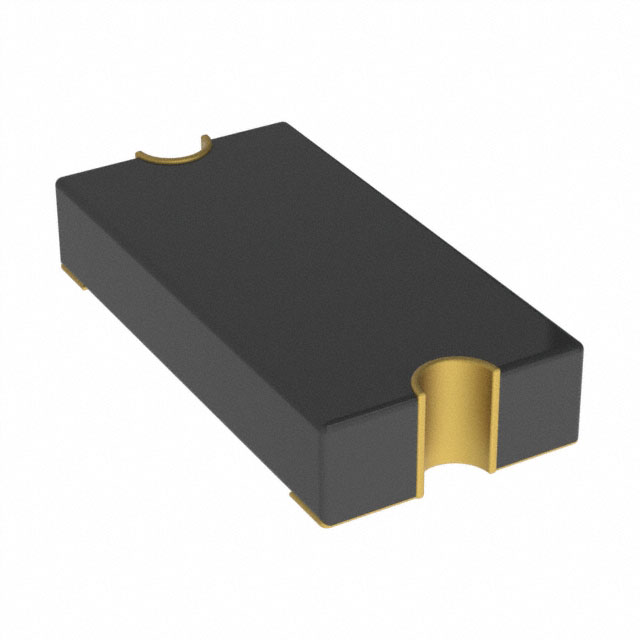

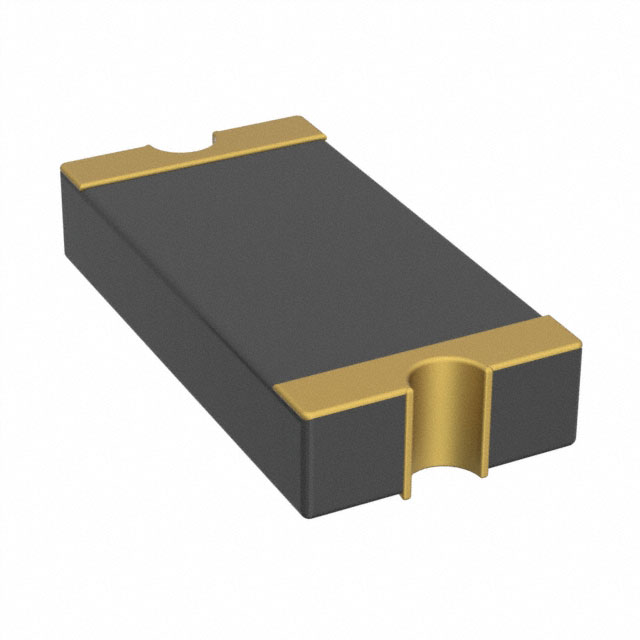

MF-NSMF Series

Catalog

FUSE KIT PTC RST 0.12-2A 40PC

Part	Kit Type	Quantity	Voltage Rating [Min]	Voltage Rating [Max]	Current Rating (Amps) [Min]	Current Rating (Amps) [Max]	Packages Included	Mounting Type	Approval Agency	Type	Qualification	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Grade	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Max [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Resistance - Post Trip (R1) (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Time to Trip	Current - Max [Max]	Current - Hold (Ih) (Max) [Max]	Current - Trip (It)

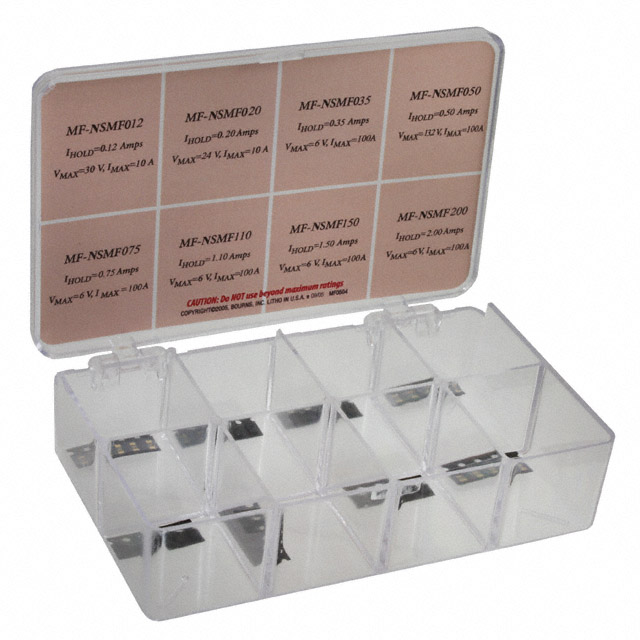

Bourns Inc. MF-NSMFLAB	PTC Resettable	40 Pieces	6 VDC	30 V	0.12 A	2 A	1206 3216 Metric	Surface Mount
Bourns Inc. MF-NSMF075-2								Surface Mount	cUL cURus TUV	Polymeric	AEC-Q200	0.063 "	0.126 "	3.2 mm	1.6 mm	Automotive	1206 (3216 Metric) Concave	85 °C	-40 C	6 V	0.7 mm	0.028 in	400 mOhms	100 mOhms	100 ms	100 A	750 mA	1.5 A
Bourns Inc. MF-NSMF025X-2								Surface Mount	cUL cURus TUV	Polymeric	AEC-Q200	0.063 "	0.126 "	3.2 mm	1.6 mm	Automotive	1206 (3216 Metric) Concave	85 °C	-40 C	16 V	0.85 mm	0.033 in	2.3 Ohms	450 mOhms	80 ms	20 A	250 mA	500 mA
