CMLE063T Series

Catalog

FIXED IND 150NH 38A 0.9MOHM SMD

Part	Package / Case	Current Rating (Amps)	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Inductance	Current - Saturation (Isat)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material - Core	Shielding	DC Resistance (DCR)	Inductance Frequency - Test	DC Resistance (DCR) [Max]
Delta Electronics/Cyntec CMLE063T-R15MS0R905	Nonstandard	38 A	Surface Mount	0.118 "	3 mm	-55 C	125 °C	20 %	150 nH	41 A	0.26 in	7.25 mm	6.6 mm	0.285 "	Metal	Shielded	0.9 mOhm	100 kHz
Delta Electronics/Cyntec CMLE063T-R68MS	Nonstandard	16.5 A	Surface Mount	0.118 "	3 mm	-55 C	125 °C	20 %	0.68 µH	17 A	0.26 in	6.95 mm	6.6 mm	0.274 in	Metal	Shielded		100 kHz
Delta Electronics/Cyntec CMLE063T-1R0MS	Nonstandard	16 A	Surface Mount	0.118 "	3 mm	-55 C	125 °C	20 %	1 µH	14 A	0.26 in	6.95 mm	6.6 mm	0.274 in	Metal	Shielded	6.5 mOhm	100 kHz
Delta Electronics/Cyntec CMLE063T-R22MS	Nonstandard	37 A	Surface Mount	0.118 "	3 mm	-55 C	125 °C	20 %	220 nH	32 A	0.26 in	7.25 mm	6.6 mm	0.285 "	Metal	Shielded		100 kHz	1.3 mOhm
Delta Electronics/Cyntec CMLE063T-4R7MS	Nonstandard	6.7 A	Surface Mount	0.118 "	3 mm	-55 C	125 °C	20 %	4.7 ÁH	8 A	0.26 in	6.95 mm	6.6 mm	0.274 in	Metal	Shielded		100 kHz	26 mOhm
Delta Electronics/Cyntec CMLE063T-R12MS0R657	Nonstandard	40 A	Surface Mount	0.118 "	3 mm	-55 C	125 °C	20 %	120 nH	42.5 A	0.26 in	7.25 mm	6.6 mm	0.285 "	Metal	Shielded	0.65 mOhm	100 kHz
Delta Electronics/Cyntec CMLE063T-100MS	Nonstandard	4.2 A	Surface Mount	0.118 "	3 mm	-55 C	125 °C	20 %	10 µH	5.5 A	0.26 in	6.95 mm	6.6 mm	0.274 in	Metal	Shielded		100 kHz	66 mOhm

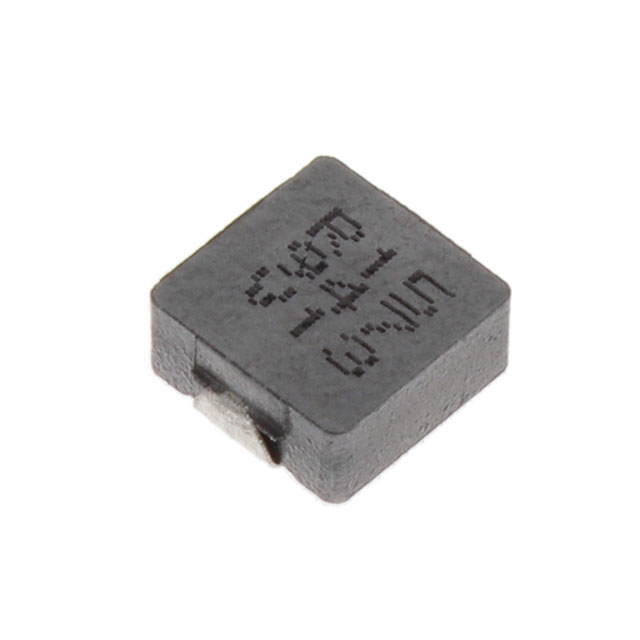

Delta Electronics/Cyntec CMLE063T-R15MS0R907	Nonstandard	38 A	Surface Mount	0.118 "	3 mm	-55 C	125 °C	20 %	150 nH	41 A	0.26 in	7.25 mm	6.6 mm	0.285 "	Metal	Shielded	0.9 mOhm	100 kHz
Delta Electronics/Cyntec CMLE063T-R15MS0R987	Nonstandard	35 A	Surface Mount	0.118 "	3 mm	-55 C	125 °C	20 %	150 nH	35 A	0.26 in	7.25 mm	6.6 mm	0.285 "	Metal	Shielded	0.98 mOhm	100 kHz
Delta Electronics/Cyntec CMLE063T-R36MS	Nonstandard	25 A	Surface Mount	0.118 "	3 mm	-55 C	125 °C	20 %	360 nH		0.26 in	7.25 mm	6.6 mm	0.285 "	Metal	Shielded		100 kHz	2.55 mOhm
