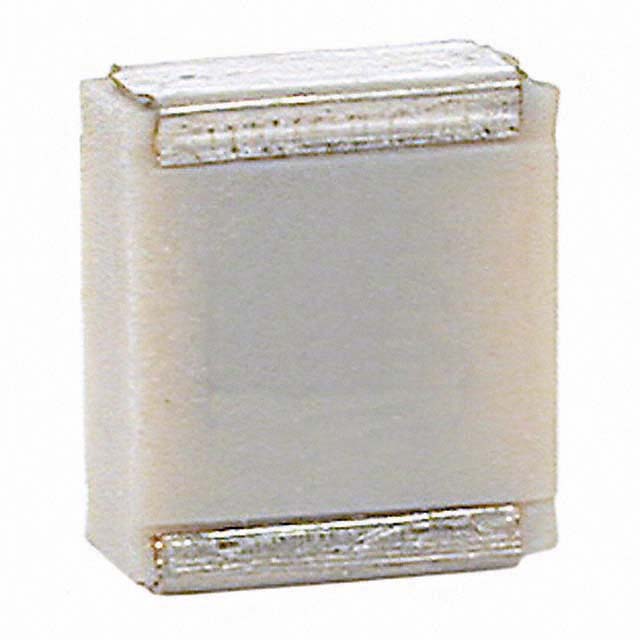

SMC16.5 Series

Manufacturer: KEMET

Catalog

CAP FILM 2.2UF 5% 50VDC 6560

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Voltage Rating - AC	Voltage Rating - DC	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Mounting Type	Tolerance	Dielectric Material	Features	Termination
KEMET SMC16.5225J50C31TR24	0.283 in	7.2 mm	-55 C	125 °C	2.2 µF	30 V	50 VDC	6560	165150 Metric	15 mm	0.65 in	0.591 in	16.5 mm	General Purpose	Surface Mount	5 %	Polyphenylene Sulfide (PPS) Metallized	High Temperature	Solder Pads
KEMET SMC16.5155J100C31TR24	0.283 in	7.2 mm	-55 C	125 °C	1500 nF	63 V	100 V	6560	165150 Metric	15 mm	0.65 in	0.591 in	16.5 mm	General Purpose	Surface Mount	5 %	Polyphenylene Sulfide (PPS) Metallized	High Temperature	Solder Pads
KEMET SMC16.5335J50C31TR24	0.283 in	7.2 mm	-55 C	125 °C	3.3 µF	30 V	50 VDC	6560	165150 Metric	15 mm	0.65 in	0.591 in	16.5 mm	General Purpose	Surface Mount	5 %	Polyphenylene Sulfide (PPS) Metallized	High Temperature	Solder Pads
