MN28TN Series

Catalog

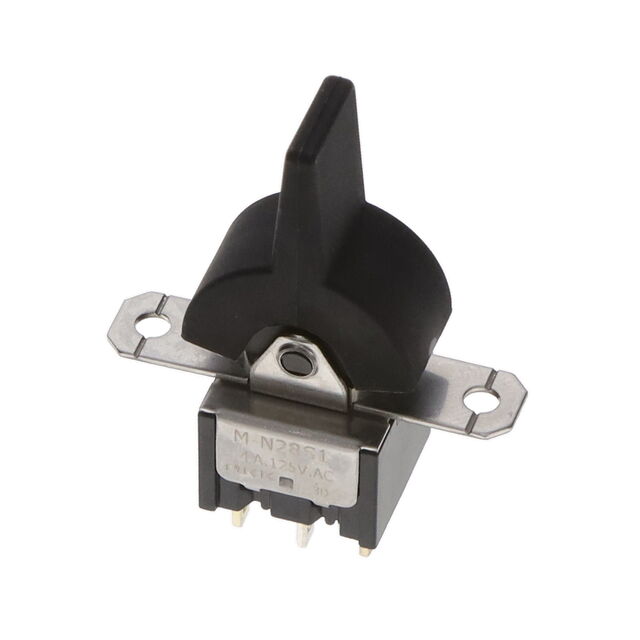

SWITCH ROCKER MINI FLAT FRAME

Part	Mechanical Life	Electrical Life	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Actuator Type	Mounting Type	Circuit	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - DC	Current Rating (Amps)	Approval Agency	Actuator Marking	Color - Actuator/Cap
NKK Switches MN28TNW01-DB	50000 Cycles	25000 Steps	10.1 mm	17.8 mm	Solder Lug	Concave	Flange Panel Mount	DPDT	125 V	85 °C	-30 ░C	Mom-Off-Mom	30 V	3 A 4 A	UL	No Marking	White
NKK Switches MN28TNW01-DC	50000 Cycles	25000 Steps	10.1 mm	17.8 mm	Solder Lug	Concave	Flange Panel Mount	DPDT	125 V	85 °C	-30 ░C	Mom-Off-Mom	30 V	3 A 4 A	UL	No Marking	Red
NKK Switches MN28TNW01	50000 Cycles	25000 Steps	12.4 mm	0.5 in	Solder Lug	Actuator Arm Cap Required	Flange Panel Mount	DPDT	125 V	85 °C	-30 ░C	Mom-Off-Mom	30 V	3 A 4 A	UL	Varies by Cap
NKK Switches MN28TNW01-GA	50000 Cycles	25000 Steps	12.4 mm	0.5 in	Solder Lug	Paddle	Flange Panel Mount	DPDT	125 V	85 °C	-30 ░C	Mom-Off-Mom	30 V	3 A 4 A	UL	No Marking	Black
NKK Switches MN28TNW01-DE	50000 Cycles	25000 Steps	10.1 mm	17.8 mm	Solder Lug	Concave	Flange Panel Mount	DPDT	125 V	85 °C	-30 ░C	Mom-Off-Mom	30 V	3 A 4 A	UL	No Marking	Yellow
NKK Switches MN28TNW01-DG	50000 Cycles	25000 Steps	10.1 mm	17.8 mm	Solder Lug	Concave	Flange Panel Mount	DPDT	125 V	85 °C	-30 ░C	Mom-Off-Mom	30 V	3 A 4 A	UL	No Marking	Blue
NKK Switches MN28TNW03
NKK Switches MN28TNW01-DA	50000 Cycles	25000 Steps	10.1 mm	17.8 mm	Solder Lug	Concave	Flange Panel Mount	DPDT	125 V	85 °C	-30 ░C	Mom-Off-Mom	30 V	3 A 4 A	UL	No Marking	Black
NKK Switches MN28TNW03-GA
NKK Switches MN28TNW01-DF	50000 Cycles	25000 Steps	10.1 mm	17.8 mm	Solder Lug	Concave	Flange Panel Mount	DPDT	125 V	85 °C	-30 ░C	Mom-Off-Mom	30 V	3 A 4 A	UL	No Marking	Green
