637-W26 Series

Manufacturer: EDAC Inc.

Catalog

637W (WATERPROOF) SERIES VERTICA

Part	Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Number of Positions	Contact Finish	Number of Rows [custom]	Ingress Protection	Shell Material, Finish	Contact Type	Flange Feature	Features	Connector Type	Connector Style	Current Rating (Amps)	Contact Finish Thickness	Mounting Type	Material Flammability Rating	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 637-W26-222-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT)	2	DA A	26	Gold	3	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Signal	4-40 Mating Side Female Screwlock	Grounding Indents Shielded	Plug Male Pins	D-Sub High Density	3 A	Flash	Free Hanging (In-Line)	UL94 V-0
EDAC Inc. 637-W26-621-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT)	2	DA A	26	Gold	3	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Signal	4-40 Mating Side Female Screwlock	Grounding Indents Shielded	Plug Male Pins	D-Sub High Density	3 A		Through Hole	UL94 V-0	Solder	30 Áin	0.76 Ám

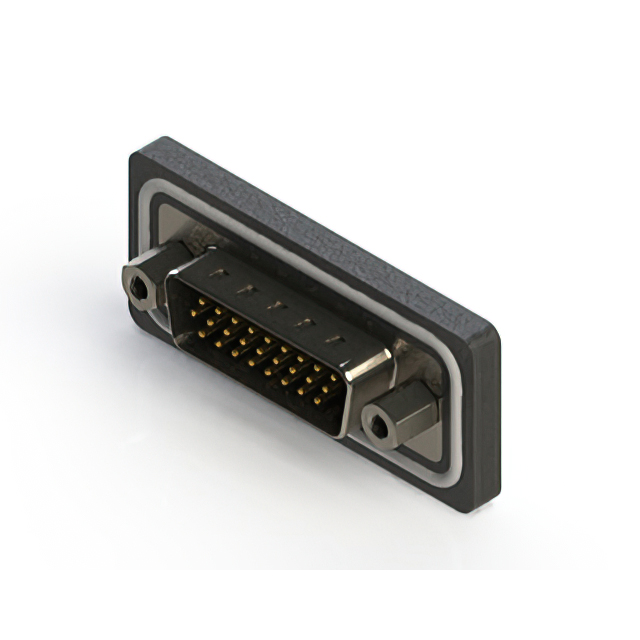

EDAC Inc. 637-W26-221-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT)	2	DA A	26	Gold	3	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Signal	4-40 Mating Side Female Screwlock	Grounding Indents Shielded	Plug Male Pins	D-Sub High Density	3 A	Flash	Through Hole	UL94 V-0	Solder
EDAC Inc. 637-W26-321-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT)	2	DA A	26	Gold	3	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Signal	4-40 Mating Side Female Screwlock	Grounding Indents Shielded	Plug Male Pins	D-Sub High Density	3 A		Through Hole	UL94 V-0	Solder	15 µin	0.38 µm

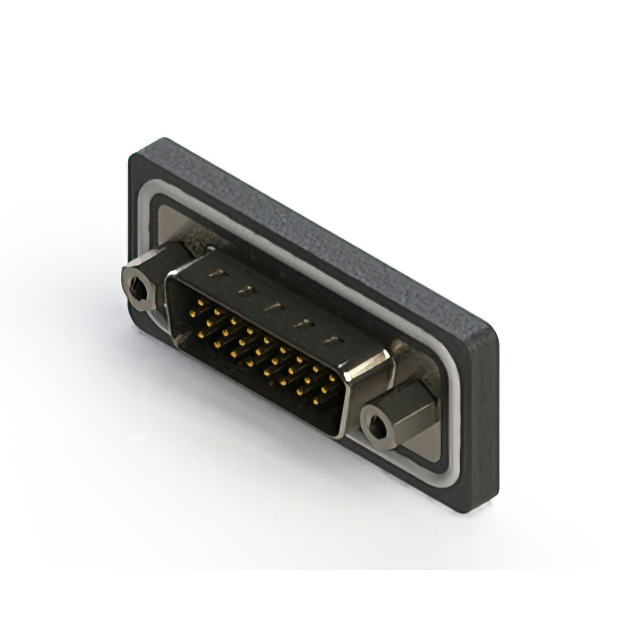

EDAC Inc. 637-W26-322-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT)	2	DA A	26	Gold	3	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Signal	4-40 Mating Side Female Screwlock	Grounding Indents Shielded	Plug Male Pins	D-Sub High Density	3 A		Free Hanging (In-Line)	UL94 V-0		15 µin	0.38 µm
