DNF10 Series

Catalog

CONN QC RCPT 10-12AWG 0.250

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Material	Tab Thickness	Tab Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Length - Overall [x]	Length - Overall [x]	Mounting Type	Insulation	Termination	Color	Tab Width [x]	Tab Width [x]	Terminal Type	Features	Gender	Contact Finish

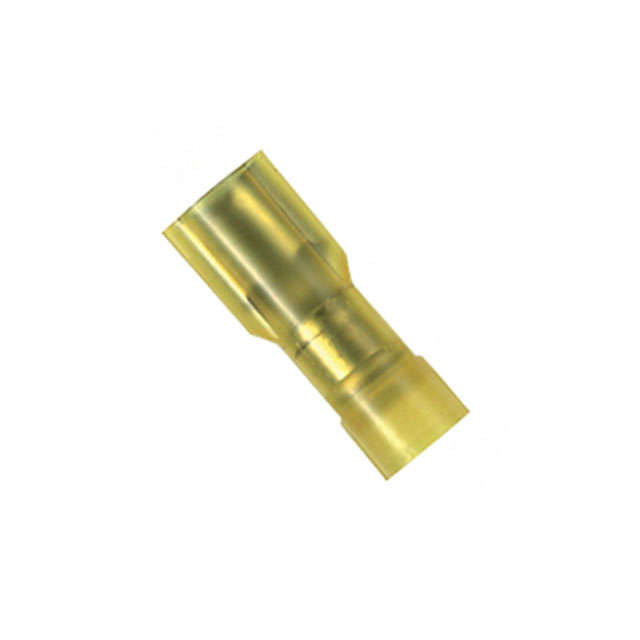

Panduit Corp DNF10-250FIB-E	5.59 mm	0.22 in	Brass	0.81 mm	0.032 in	10 AWG	12 AWG	0.96 in	24.38 mm	Free Hanging (In-Line)	Fully Insulated	Crimp	Yellow	6.35 mm	0.25 in	Standard	Butted Seam	Female	Tin

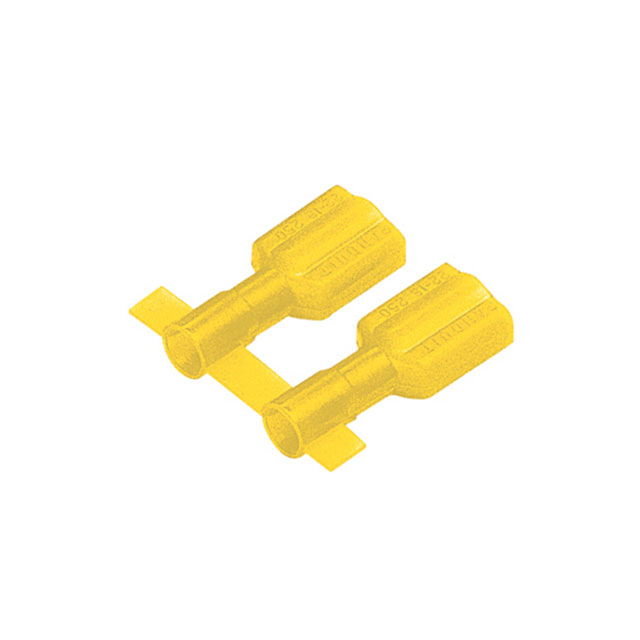

Panduit Corp DNF10-250FIB-2K	5.59 mm	0.22 in	Brass	0.81 mm	0.032 in	10 AWG	12 AWG	0.96 in	24.38 mm	Free Hanging (In-Line)	Fully Insulated	Crimp	Yellow	6.35 mm	0.25 in	Standard	Butted Seam	Female	Tin

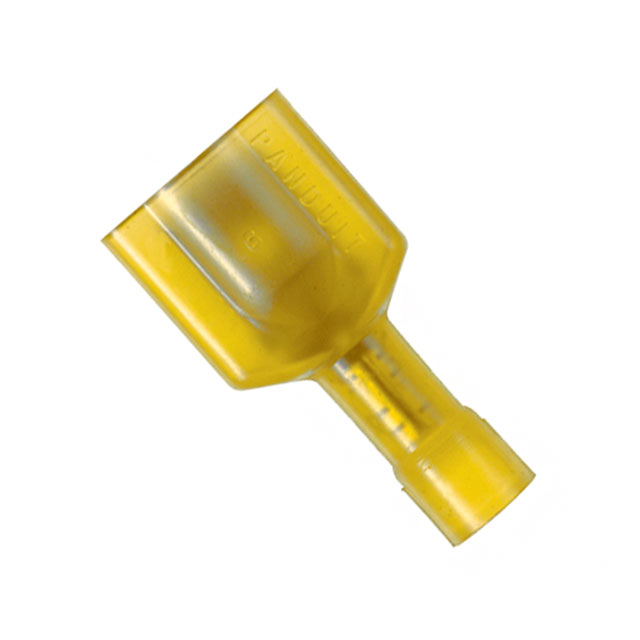

Panduit Corp DNF10-250FIMB-K	5.59 mm	0.22 in	Copper	0.81 mm	0.032 in	10 AWG	12 AWG	0.961 in	24.4 mm	Free Hanging (In-Line)	Fully Insulated	Crimp	Yellow	6.35 mm	0.25 in	Standard	Butted Seam	Male	Nickel
Panduit Corp DNF10-250FIB-L	5.59 mm	0.22 in	Brass	0.81 mm	0.032 in	10 AWG	12 AWG	0.96 in	24.38 mm	Free Hanging (In-Line)	Fully Insulated	Crimp	Yellow	6.35 mm	0.25 in	Standard	Serrated Termination	Female	Tin

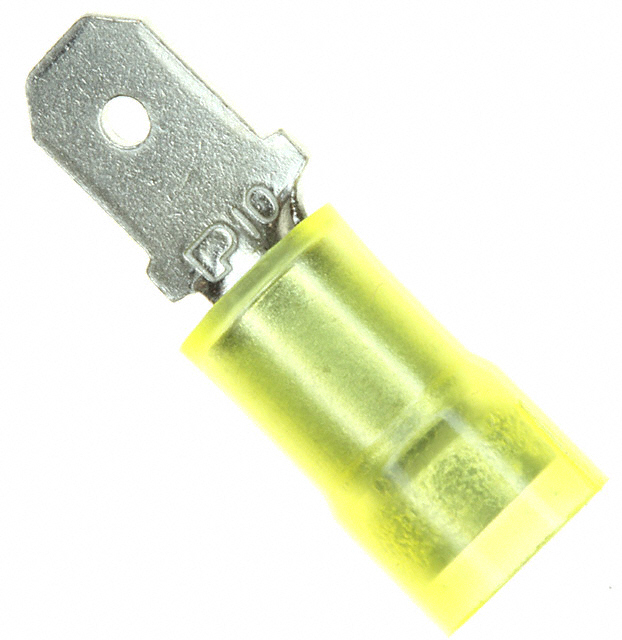

Panduit Corp DNF10-250M-D	5.84 mm	0.23 in	Copper	0.81 mm	0.032 in	10 AWG	12 AWG	1.03 in	26.16 mm	Free Hanging (In-Line)	Non-Mating End Insulated	Crimp	Yellow	6.35 mm	0.25 in	Standard	Serrated Termination	Male	Nickel
Panduit Corp DNF10-250FIMB-D	5.59 mm	0.22 in	Copper	0.81 mm	0.032 in	10 AWG	12 AWG	0.96 in	24.38 mm	Free Hanging (In-Line)	Fully Insulated	Crimp	Yellow	6.35 mm	0.25 in	Standard	Serrated Termination	Male	Nickel
Panduit Corp DNF10250FIBC-2K	5.59 mm	0.22 in	Brass	0.81 mm	0.032 in	10 AWG	12 AWG	0.96 in	24.38 mm	Free Hanging (In-Line)	Fully Insulated	Crimp	Yellow	6.35 mm	0.25 in	Standard	Butted Seam	Female	Tin
