NLAS44599 Series

Analog Switch, High Bandwidth, Dual SPDT

Catalog

Analog Switch, High Bandwidth, Dual SPDT

Part	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Package / Case	Supplier Device Package	Supplier Device Package	Supplier Device Package	-3db Bandwidth	Current - Leakage (IS(off)) (Max)	Multiplexer/Demultiplexer Circuit	Charge Injection	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Number of Circuits	On-State Resistance (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Circuit	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Supplier Device Package	Channel-to-Channel Matching (ΔRon)	Operating Temperature [Max]	Operating Temperature [Min]	Crosstalk	Current - Leakage (IS(off)) (Max) [Max]	Voltage - Supply, Dual (V±)	Package / Case	Package / Case	Package / Case [x]	Package / Case [y]	Channel-to-Channel Matching (ΔRon) [custom]
ON Semiconductor NLAS4501DFT2G	10 pF	10 pF	5-TSSOP SC-70-5 SOT-353	SC-88A	SOT-353	SC-70-5	220 MHz	1 nA	1:1	3 pC	5.5 V	2 V	1	25 Ohms	Surface Mount	125 °C	-55 °C	SPST - NO	10 ns	9 ns

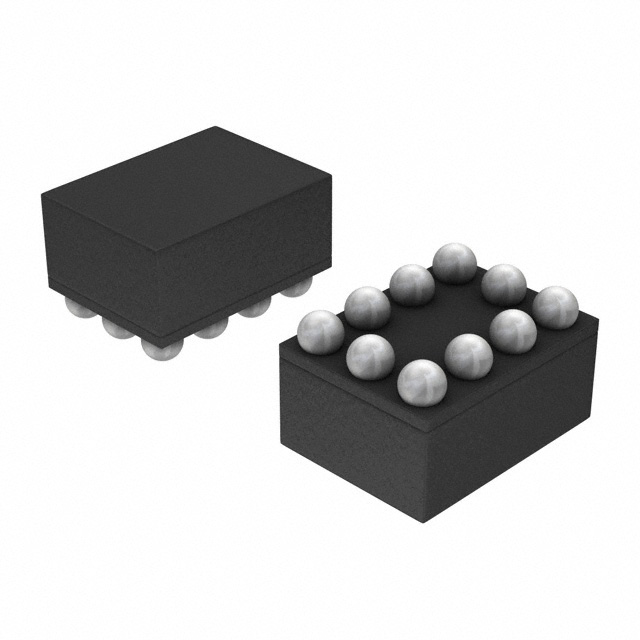

ON Semiconductor NLAS4717FCT1G	30 pF	30 pF	10-UFBGA FCBGA				40 MHz	1 nA	2:1	9 pC	5.5 V	1.8 V	2	3.5 Ohm	Surface Mount			SPDT	40 ns	30 ns	10-Microbump	100 mOhm	85 °C	-40 °C	-110 dB
ON Semiconductor NLAS4501DTT1	10 pF	10 pF	SOT-23-5 Thin TSOT-23-5				220 MHz	1 nA	1:1	3 pC	5.5 V	2 V	1	25 Ohms	Surface Mount	125 °C	-55 °C	SPST - NO	10 ns	9 ns	5-TSOP
ON Semiconductor NLAS4053QSR	10 pF	10 pF	16-SSOP				180 MHz		2:1	12 pC	5 V	3 V	3	26 Ohm	Surface Mount	125 °C	-55 °C	SPDT	23 ns	23 ns	16-QSOP	10 Ohm				100 nA	3 V	0.154 in	3.9 mm
ON Semiconductor NLAS44599DTR2	10 pF	10 pF	16-TSSOP				175 MHz		2:2	3 pC	5.5 V	2 V	2	25 Ohms	Surface Mount	125 °C	-55 °C	DPDT	5 ns	14 ns	16-TSSOP					10 µA				0.173 in	4.4 mm
ON Semiconductor NLAS4684FCT1	102 pF	104 pF	10-UFBGA FCBGA				9.5 MHz		2:1	15 pC	5.5 V	1.8 V	2	800 mOhm	Surface Mount	125 °C	-55 °C	SPDT	30 ns	30 ns	10-Microbump				-83 dB	1 µA						60 mOhm
ON Semiconductor NLAS4066DTR2G			16-TSSOP												Surface Mount						16-TSSOP									0.173 in	4.4 mm
ON Semiconductor NLAS4053DT	10 pF	10 pF	16-TSSOP				180 MHz		2:1	12 pC	5 V	3 V	3	26 Ohm	Surface Mount	125 °C	-55 °C	SPDT	23 ns	23 ns	16-TSSOP	10 Ohm				100 nA	3 V			0.173 in	4.4 mm
ON Semiconductor NLAS4066DTG			16-TSSOP												Surface Mount						16-TSSOP									0.173 in	4.4 mm
ON Semiconductor NLAS44599DTG	10 pF	10 pF	16-TSSOP				175 MHz		2:2	3 pC	5.5 V	2 V	2	25 Ohms	Surface Mount	125 °C	-55 °C	DPDT	5 ns	14 ns	16-TSSOP					10 µA				0.173 in	4.4 mm

Catalog

Analog Switch, High Bandwidth, Dual SPDT

Key Features

• Improved RDS(on)Specifications

• Pin for Pin Replacement for MAX4051 and MAX4051A- One Half the Resistance Operating at 5.0 Volts

• Single or Dual Supply Operation- Single 2.5-5 Volt Operation, or Dual +/-3 Volt Operation- With VCCof 3.0 to 3.3 V, Device Can Interface with 1.8 V Logic, No Translators Needed- Address and Inhibit Logic are Over-Voltage Tolerant and May Be Driven Up +6 V Regardless of VCC.

• Improved Linearity Over Standard HC4051 Devices

• Popular SOIC, and Space Saving TSSOP, and QSOP 16 Pin Packages

• Pb-Free Packages are Available

Description

The NLAS4501 is an analog switch manufactured in sub-micron silicon-gate CMOS technology. It achieves very low RONwhile maintaining extremely low power dissipation. The device is a bilateral switch suitable for switching either analog or digital signals, which may vary from zero to full supply voltage. The NLAS4501 is pin-for-pin compatible with the MAX4501. The NLAS4501 can be used as a direct replacement for the MAX4501 in all 2.0 V to 5.5 V applications where a RONperformance improvement is required.The Enable pin is compatible with standard CMOS outputs when supply voltage is nominal 5.0 Volts. It is also over-voltage tolerant, making it a very useful logic level translator.
