MD6020 Series

Catalog

FAN AXIAL 60X20.2MM 12VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Blade	Voltage - Rated	Termination	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Static Pressure	Static Pressure	Air Flow	Air Flow	Noise	Bearing Type	RPM	Width [y]	Features	Weight [custom]	Weight [custom]

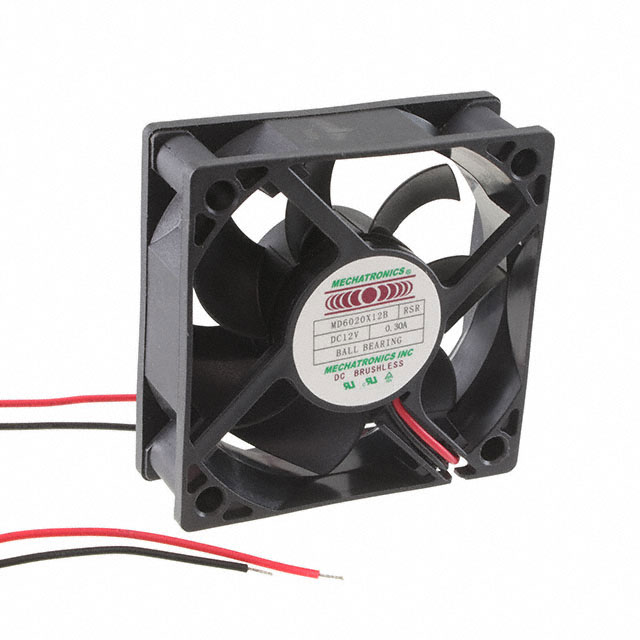

Mechatronics Fan Group MD6020X12B-RSR	13.8 VDC	6 VDC	0.3 A	Polybutylene Terephthalate (PBT)	12 VDC	2 Wire Leads	Tubeaxial	60 mm	60 mm	cUL TUV UL	54.8 Pa	0.22 in H2O	25.8 CFM	0.722 m³/min	37 dB	Ball	4900 RPM	20.2 mm	Thermal Overload Protector (TOP)	42.64 g	0.094 lb

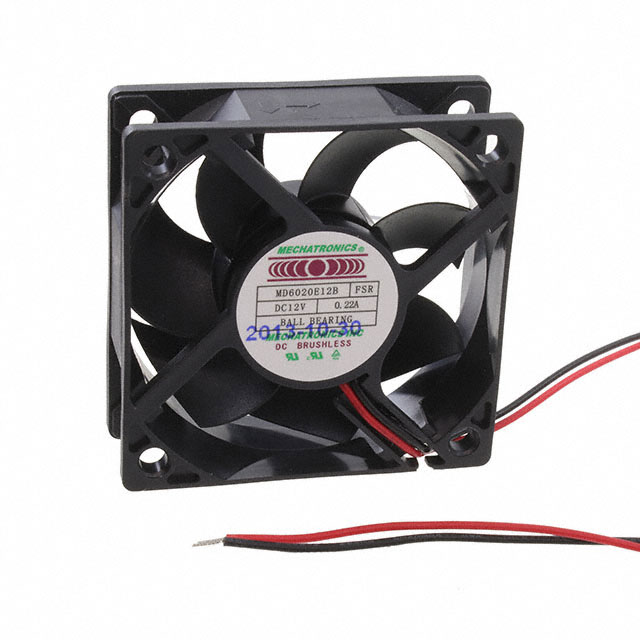

Mechatronics Fan Group MD6020E12B-FSR	13.8 VDC	6 VDC	0.22 A	Polybutylene Terephthalate (PBT)	12 VDC	2 Wire Leads	Tubeaxial	60 mm	60 mm	cUL TUV UL	44.8 Pa	0.18 in H2O	23 CFM	0.644 m³/min	33.5 dB(A)	Ball	4400 RPM	20.2 mm	Thermal Overload Protector (TOP)	42.64 g	0.094 lb

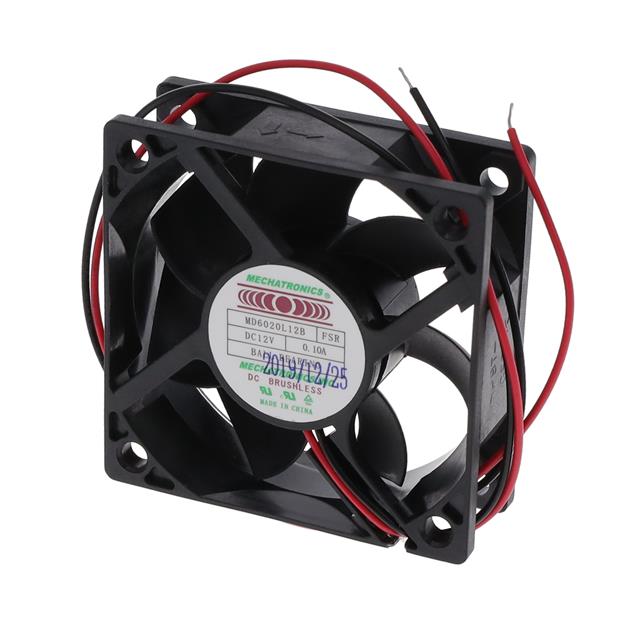

Mechatronics Fan Group MD6020L12B-FSR	13.8 VDC	6 VDC	100 mA	Polybutylene Terephthalate (PBT)	12 VDC	2 Wire Leads	Tubeaxial	60 mm	60 mm	cUL TUV UL	17.4 Pa	0.07 in H2O	13.9 CFM	0.389 m³/min	23 dB(A)	Ball	2700 RPM	20.2 mm	Thermal Overload Protector (TOP)	42.64 g	0.094 lb
