34152 Series

Catalog

CONN RING CIRC 16-22AWG #3/8

Part	Insulation	Material - Insulation	Width - Outer Edges [custom]	Width - Outer Edges [custom]	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Terminal Type	Features	Color	Mounting Type	Length - Overall [x]	Length - Overall [x]	Contact Finish	Termination	Stud/Tab Size	Thickness	Thickness	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]

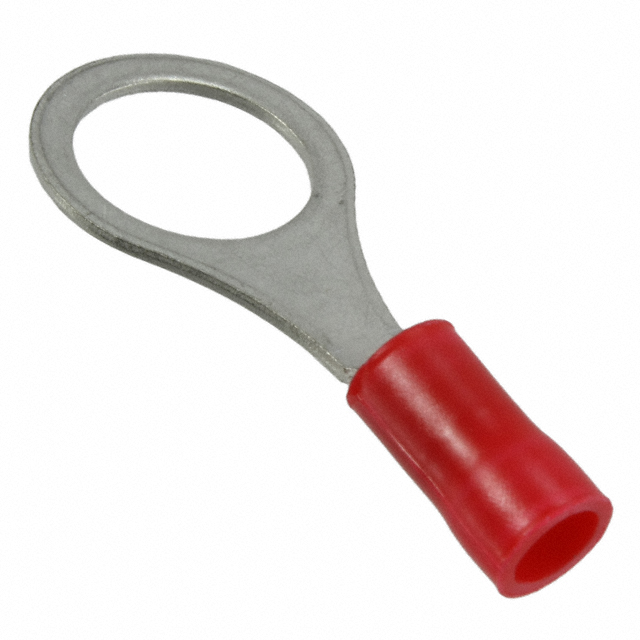

TE Connectivity Raychem Cable Protection 8-34152-1	Insulated	Poly-Vinyl Chloride (PVC)	13.49 mm	0.531 "	22 AWG	16 AWG	Copper	Circular	Serrated Termination	Red	Free Hanging (In-Line)	31.24 mm	1.23 in	Tin	Crimp	3/8 Stud	0.031 in	0.79 mm	0.14 in	0.105 in	3.56 mm	2.67 mm

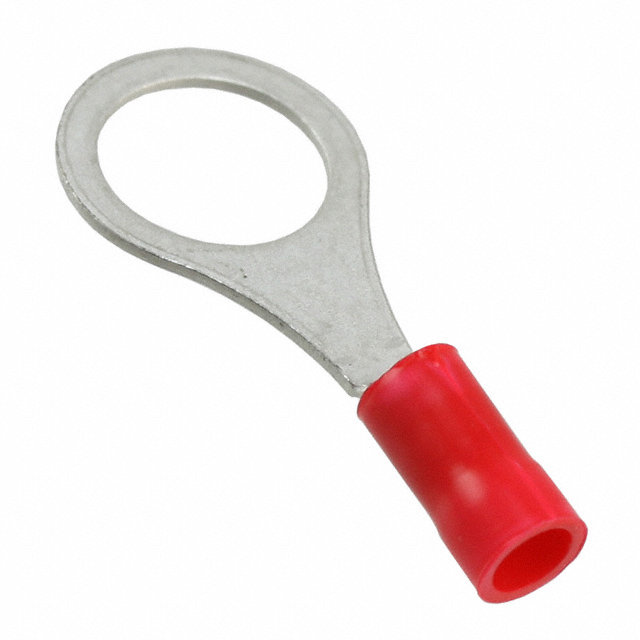

TE Connectivity Raychem Cable Protection 2-34152-2	Insulated	Poly-Vinyl Chloride (PVC)	13.49 mm	0.531 "	22 AWG	16 AWG	Copper	Circular	Serrated Termination	Red	Free Hanging (In-Line)	31.24 mm	1.23 in	Tin	Crimp	3/8 Stud	0.031 in	0.79 mm	0.14 in	0.105 in	3.56 mm	2.67 mm
