DG2517 Series

Catalog

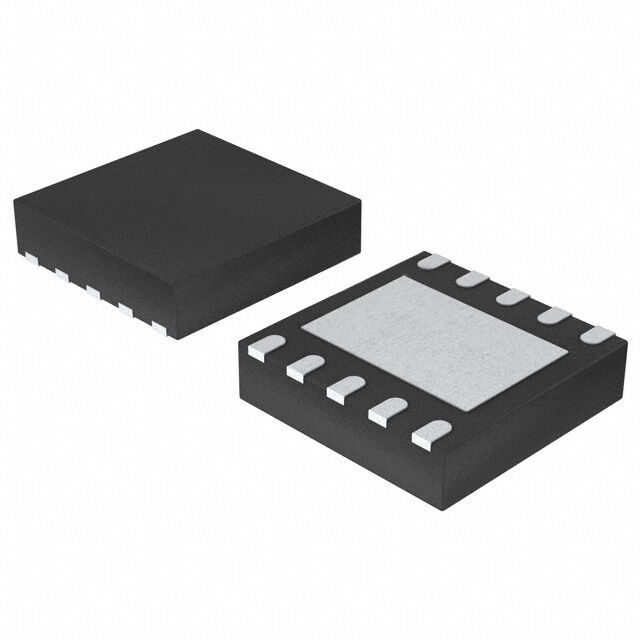

ANALOG SWITCH DUAL SPDT 10-PIN DFN EP T/R

Part	Package / Case	-3db Bandwidth	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Multiplexer Inputs	Demultiplexer Outputs	Switch Circuit Type	Charge Injection	On-State Resistance (Max)	Number of Circuits	Crosstalk	Channel-to-Channel Matching (ΔRon)	Package Length	Package Name	Package Width	Voltage - Supply, Single (V+) (Minimum)	Voltage - Supply, Single (V+) (Maximum)	Switch Time Ton (Max)	Switch Time Toff (Max)	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	Current - Leakage (Max)
Vishay Dale DG2517EDN-T1-GE4	10-VFDFN Exposed Pad	221 MHz	Surface Mount	85 °C	-40 °C	2	1	SPDT	-19.4 pC	3.1 Ohm	2	-62 dB	10 mOhm	3 mm	10-DFN	3 mm	1.8 V	5.5 V	40 ns	33 ns
Vishay Dale DG2517DQ-T1-E3		242 MHz	Surface Mount	85 °C	-40 °C	2	1	SPDT	2 pC	4 Ohm	2	-73 dB	100 mOhm	0.118 in	10-MSOP 10-TFSOP	3 mm	1.8 V	5.5 V	25 ns	20 ns	8 pF	8 pF	1 nA
Vishay Dale DG2517EDQ-T1-GE3		221 MHz	Surface Mount	85 °C	-40 °C	2	1	SPDT	-19.4 pC	3.1 Ohm	2	-62 dB	10 mOhm	0.118 in	10-MSOP 10-TFSOP	3 mm	1.8 V	5.5 V	40 ns	33 ns
Vishay Dale DG2517DN-T1-E4	10-VFDFN Exposed Pad	242 MHz	Surface Mount	85 °C	-40 °C	2	1	SPDT	2 pC	4 Ohm	2	-73 dB	100 mOhm	3 mm	10-DFN	3 mm	1.8 V	5.5 V	25 ns	20 ns	8 pF	8 pF	1 nA
