087759 Series

Manufacturer: Molex

Catalog

CONN HEADER SMD 26POS 2MM

Part	Contact Shape	Shrouding	Material Flammability Rating	Applications	Contact Finish - Mating	Fastening Type	Insulation Color	Mounting Type	Contact Finish - Post	Insulation Height	Insulation Height	Connector Type	Number of Rows	Termination	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Number of Positions	Number of Positions Loaded	Features	Row Spacing - Mating	Row Spacing - Mating	Style	Number of Positions Loaded
Molex 0877598010	Square	Unshrouded	UL94 V-0	Automotive General Purpose Telecommunications	Gold	Push-Pull	Black	Surface Mount	Tin	1.5 mm	0.059 "	Breakaway Header	2	Solder	0.15 in	3.81 mm	15 µin	0.38 µm	Thermoplastic	Phosphor Bronze	0.079 in	2 mm	Male Pin	26	25	Pick and Place	0.079 in	2 mm	Board to Board Cable
Molex 0877592874	Square	Unshrouded	UL94 V-0	Automotive General Purpose Telecommunications	Gold	Push-Pull	Black	Surface Mount	Tin	1.5 mm	0.059 "	Breakaway Header	2	Solder	0.15 in	3.81 mm	15 µin	0.38 µm	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	0.079 in	2 mm	Male Pin	28		Pick and Place	0.079 in	2 mm	Board to Board Cable	All
Molex 0877597644	Square	Unshrouded	UL94 V-0	Automotive General Purpose Telecommunications	Gold	Push-Pull	Black	Surface Mount	Tin	1.5 mm	0.059 "	Breakaway Header	2	Solder	0.15 in	3.81 mm	15 µin	0.38 µm	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	0.079 in	2 mm	Male Pin	44		Board Guide Pick and Place	0.079 in	2 mm	Board to Board Cable	All

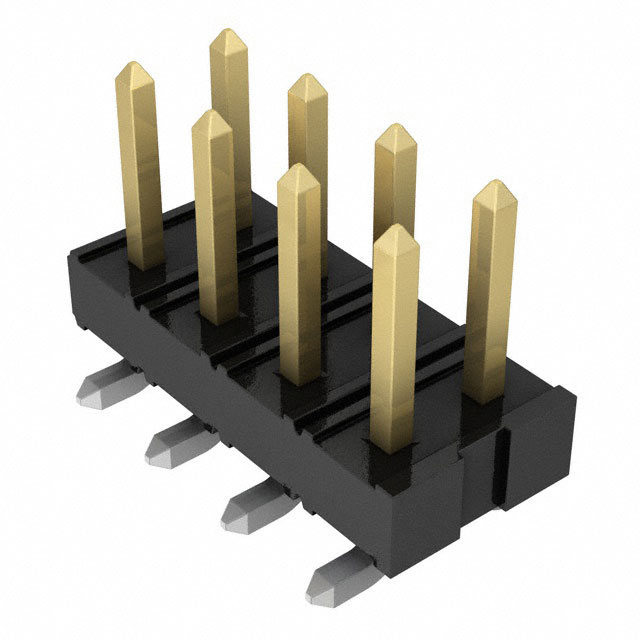

Molex 0877590864	Square	Unshrouded	UL94 V-0	Automotive General Purpose Telecommunications	Gold	Push-Pull	Black	Surface Mount	Tin	1.5 mm	0.059 "	Breakaway Header	2	Solder	0.15 in	3.81 mm	15 µin	0.38 µm	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	0.079 in	2 mm	Male Pin	8		Pick and Place	0.079 in	2 mm	Board to Board Cable	All

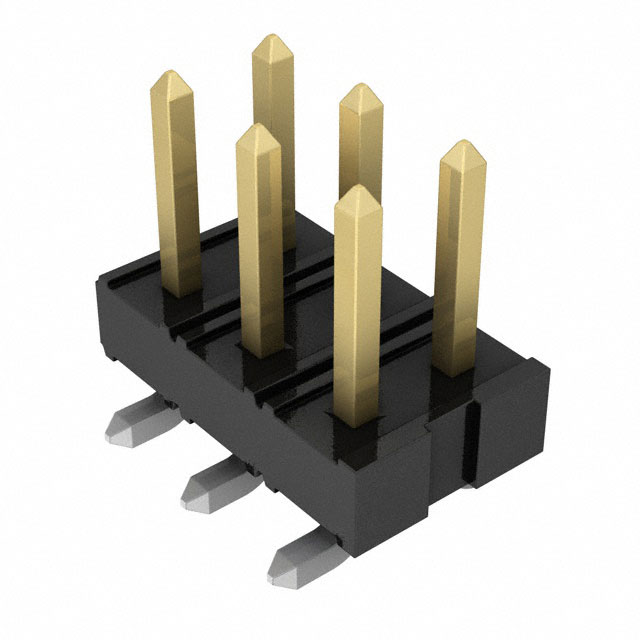

Molex 0877590614	Square	Unshrouded	UL94 V-0	Automotive General Purpose Telecommunications	Gold	Push-Pull	Black	Surface Mount	Tin	1.5 mm	0.059 "	Breakaway Header	2	Solder	0.15 in	3.81 mm	15 µin	0.38 µm	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	0.079 in	2 mm	Male Pin	6			0.079 in	2 mm	Board to Board Cable	All
Molex 0877590675
Molex 0877591215	Square	Unshrouded	UL94 V-0	Automotive General Purpose Telecommunications	Gold	Push-Pull	Black	Surface Mount	Tin	1.5 mm	0.059 "	Breakaway Header	2	Solder	0.15 in	3.81 mm	30 Áin	0.76 Ám	Nylon Polyamide (PA)	Phosphor Bronze	0.079 in	2 mm	Male Pin	12			0.079 in	2 mm	Board to Board Cable	All
Molex 0877591874	Square	Unshrouded	UL94 V-0	Automotive General Purpose Telecommunications	Gold	Push-Pull	Black	Surface Mount	Tin	1.5 mm	0.059 "	Breakaway Header	2	Solder	0.15 in	3.81 mm	15 µin	0.38 µm	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	0.079 in	2 mm	Male Pin	18		Pick and Place	0.079 in	2 mm	Board to Board Cable	All
Molex 0877591075	Square	Unshrouded	UL94 V-0	Automotive General Purpose Telecommunications	Gold	Push-Pull	Black	Surface Mount	Tin	1.5 mm	0.059 "	Breakaway Header	2	Solder	0.15 in	3.81 mm	30 Áin	0.76 Ám	Nylon Polyamide (PA)	Phosphor Bronze	0.079 in	2 mm	Male Pin	10		Pick and Place	0.079 in	2 mm	Board to Board Cable	All
Molex 0877593414	Square	Unshrouded	UL94 V-0	Automotive General Purpose Telecommunications	Gold	Push-Pull	Black	Surface Mount	Tin	1.5 mm	0.059 "	Breakaway Header	2	Solder	0.15 in	3.81 mm	15 µin	0.38 µm	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	0.079 in	2 mm	Male Pin	34			0.079 in	2 mm	Board to Board Cable	All
