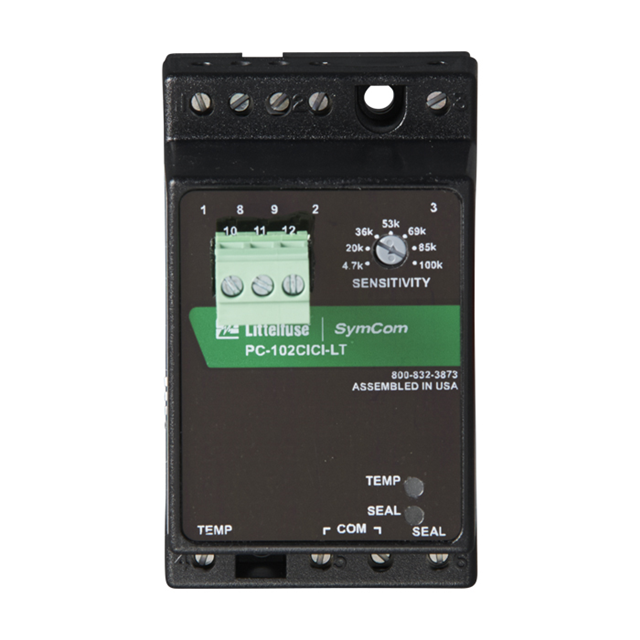

PC-102CICI-DL Series

2-CHANNEL DUAL-LEAK DETECTOR/

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

2-CHANNEL DUAL-LEAK DETECTOR/

Part	Contact Rating @ Voltage	Features	Voltage - Supply	Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Form	Sensitivity [Max]	Sensitivity [Min]
Littelfuse/Commercial Vehicle Products PC-102CICI-DL	5 A 240 VAC	Adjustable Sensitivity	120 VAC	Constant Level	55 °C	-20 C	Screw Terminal	SPDT (2 Form C)	100 kOhm	4.7 kOhm

Catalog

2-CHANNEL DUAL-LEAK DETECTOR/

Description

PC-102CICI-DL is a dual seal-leak detector that uses inputs to sense seal failures and energize the output relay. Input logic (direct or inverted) is DIP-switch selectable. See datasheet for detailed technical characteristics.
