3155-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

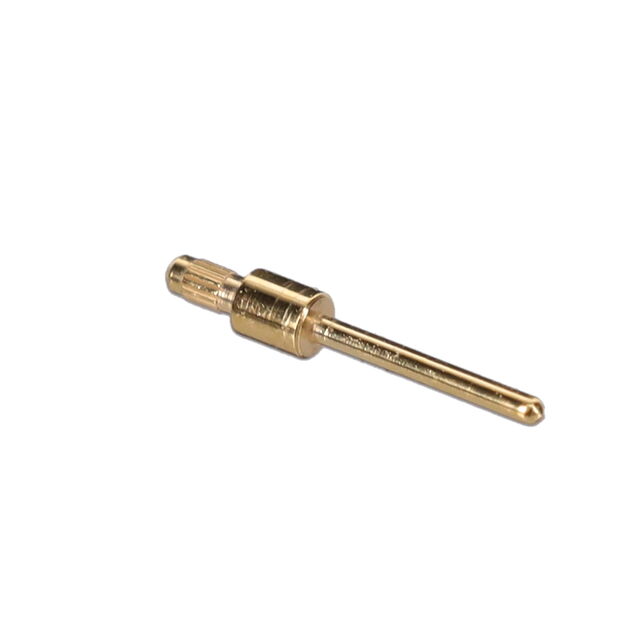

CONN PC PIN CIRC .018DIA GOLD
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Terminal Style | Length - Overall | Length - Overall | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Type | Terminal Type | Contact Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.018 in | 0.46 mm | 20 µin | 0.51 µm | Gold | 0.64 mm | 0.025 in | 0.06 " | 1.52 mm | 0.66 mm | 0.026 in | 0.045 in | 1.14 mm | Non-Insulated | Single End | 0.29 in | 7.37 mm | 4.57 mm | 0.18 in | Through Hole | PC Pin | Phosphor Bronze | Knurled Press-Fit |
 Mill-Max Manufacturing Corp. | 0.018 in | 0.46 mm | 50 µin | 1.27 µm | Gold | 0.64 mm | 0.025 in | 0.06 " | 1.52 mm | 0.66 mm | 0.026 in | 0.045 in | 1.14 mm | Non-Insulated | Single End | 0.29 in | 7.37 mm | 4.57 mm | 0.18 in | Through Hole | PC Pin | Phosphor Bronze | Knurled Press-Fit |
