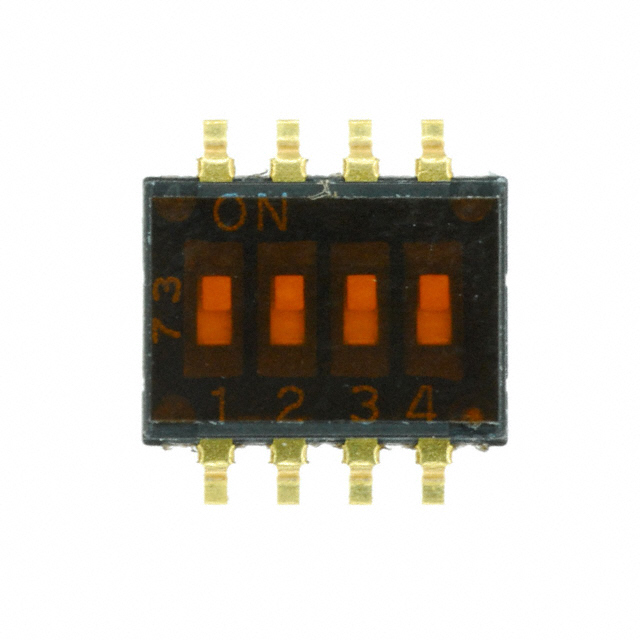

KAN1104 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Mechanical Life | Length [x] | Length [x] | Electrical Life | Body Material | Circuit | Voltage Rating | Mounting Type | Pitch | Pitch | Pitch | Contact Finish | Actuator Type | Washable | Features | Current Rating (Amps) | Contact Material | Actuator Level | Height Above Board [z] | Height Above Board [z] | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 2000 Cycles | 6.31 mm | 0.248 in | 2000 Steps | Polyphenylene Sulfide (PPS) | SPST | 24 VDC | Surface Mount | 0.05 " | 1.27 mm | Half | Gold | Slide (Standard) | Tape Seal | 25 mA | Copper Alloy | Flush Recessed | 1.6 mm | 0.063 in | 4 | 85 °C | -40 C | Gull Wing |
