822516 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PLCC,LF,SMT,52P,44MM TAPE,SMAL

Part	Material Flammability Rating	Contact Material - Mating	Pitch - Post	Pitch - Post	Termination	Mounting Type	Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Contact Material - Post	Housing Material	Features	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish - Mating	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [x]

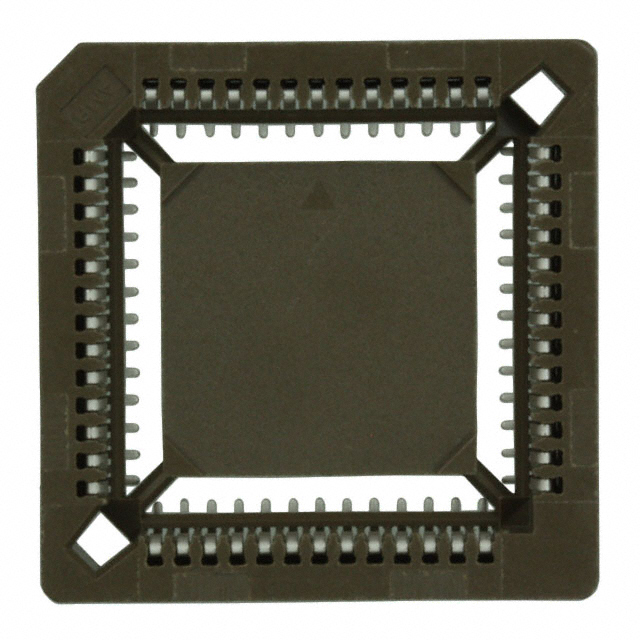

TE Connectivity AMP Connectors 3-822516-4	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm	Solder	Surface Mount	PLCC	1.27 mm	0.05 in	100 çin	2.54 çm	2.54 µm	100 µin	Tin	Phosphor Bronze	Thermoplastic	Closed Frame	4 x 13	52
TE Connectivity AMP Connectors 822516-2	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm	Solder	Surface Mount	PLCC	1.27 mm	0.05 in	100 çin	2.54 çm	2.54 µm	100 µin	Tin	Phosphor Bronze	Thermoplastic	Closed Frame		28
TE Connectivity AMP Connectors 3-822516-5	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm	Solder	Surface Mount	PLCC	1.27 mm	0.05 in	100 çin	2.54 çm	2.54 µm	100 µin	Tin	Phosphor Bronze	Thermoplastic	Closed Frame			4	17	68	Tin-Lead
TE Connectivity AMP Connectors 822516-7	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm	Solder	Surface Mount	PLCC	1.27 mm	0.05 in	100 çin	2.54 çm	2.54 µm	100 µin	Tin	Phosphor Bronze	Thermoplastic	Closed Frame		32					7 9	2
TE Connectivity AMP Connectors 822516-1	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm	Solder	Surface Mount	PLCC	1.27 mm	0.05 in	100 çin	2.54 çm	2.54 µm	100 µin	Tin	Phosphor Bronze	Thermoplastic	Closed Frame		44					11	4

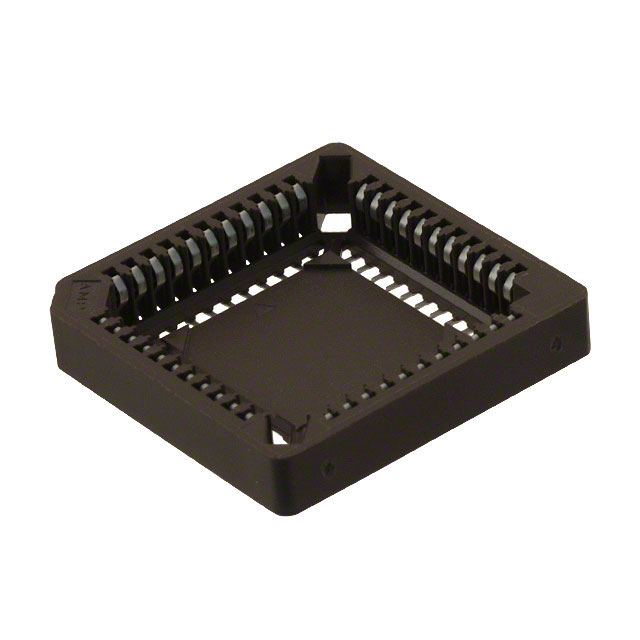

TE Connectivity AMP Connectors 3-822516-1	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm	Solder	Surface Mount	PLCC	1.27 mm	0.05 in	100 çin	2.54 çm	2.54 µm	100 µin	Tin	Phosphor Bronze	Thermoplastic	Closed Frame		44					11	4
TE Connectivity AMP Connectors 822516-4	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm	Solder	Surface Mount	PLCC	1.27 mm	0.05 in	100 çin	2.54 çm	2.54 µm	100 µin	Tin	Phosphor Bronze	Thermoplastic	Closed Frame	4 x 13	52
TE Connectivity AMP Connectors 822516-6	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm	Solder	Surface Mount	PLCC	1.27 mm	0.05 in	100 çin	2.54 çm	2.54 µm	100 µin	Tin	Phosphor Bronze	Thermoplastic	Closed Frame

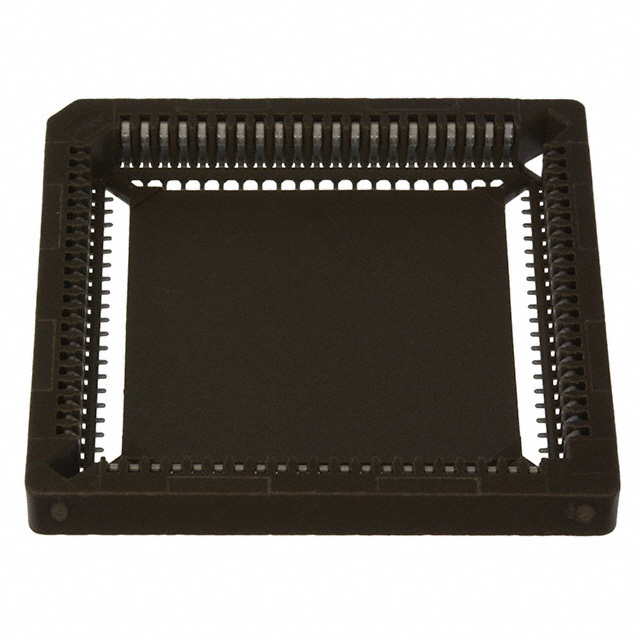

TE Connectivity AMP Connectors 3-822516-6	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm	Solder	Surface Mount	PLCC	1.27 mm	0.05 in	100 çin	2.54 çm	2.54 µm	100 µin	Tin	Phosphor Bronze	Thermoplastic	Closed Frame
