628-27W Series
Manufacturer: EDAC Inc.
Beta
⌘K

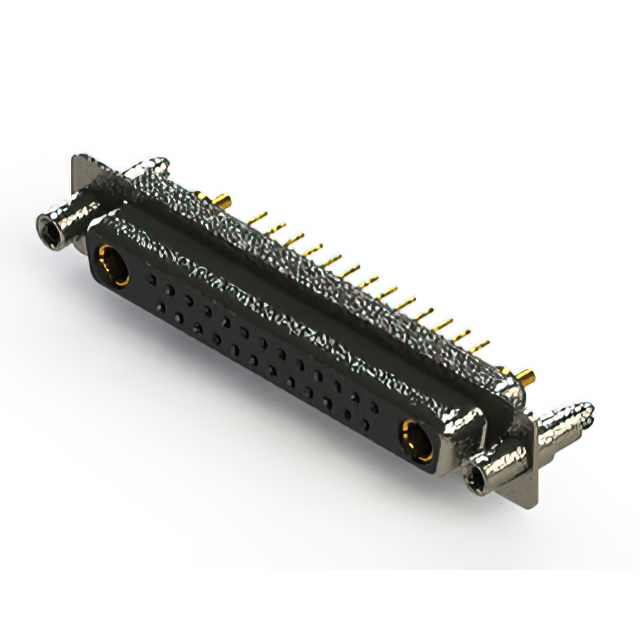

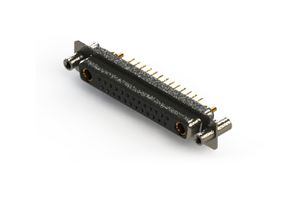

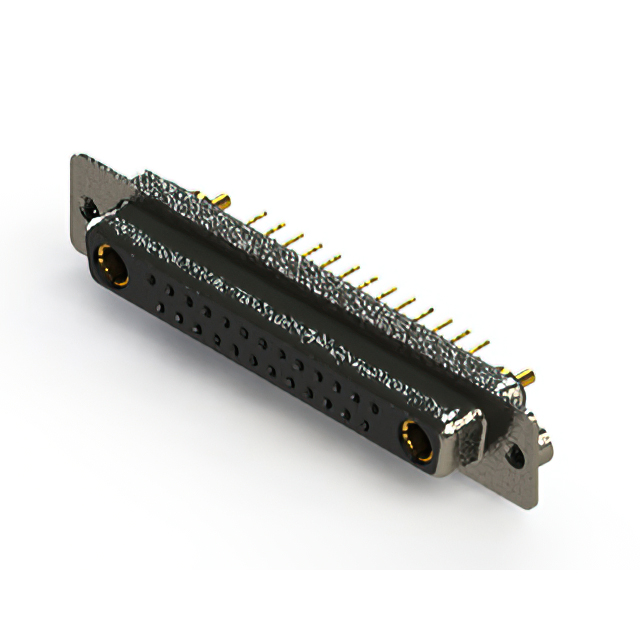

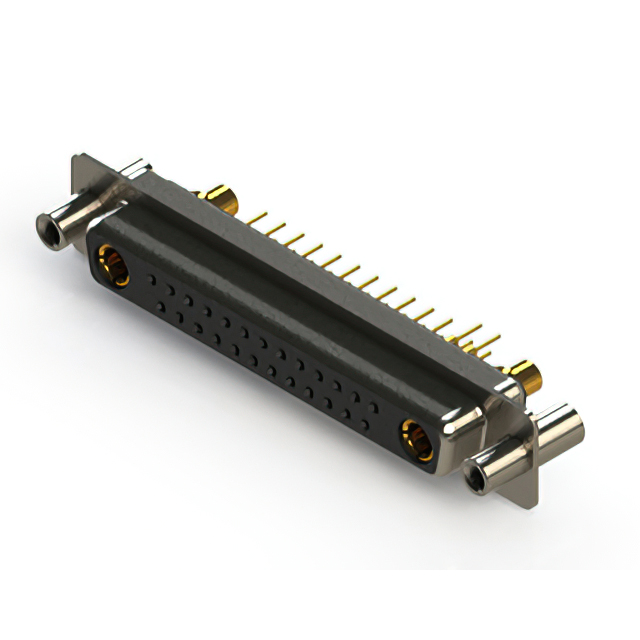

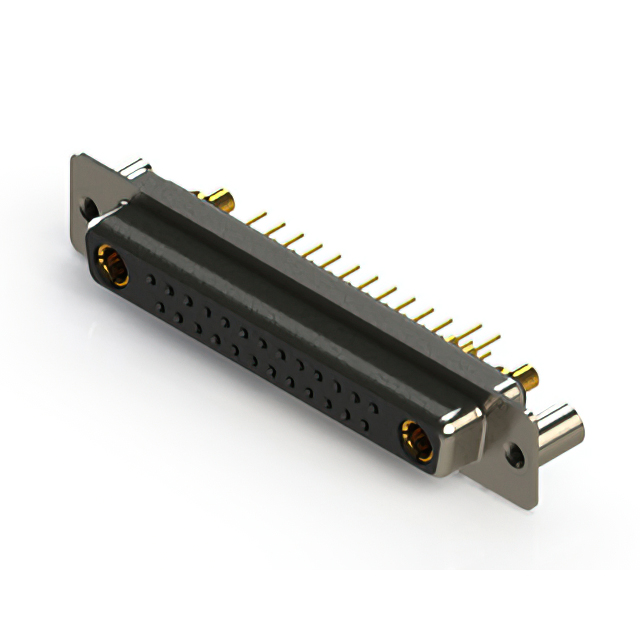

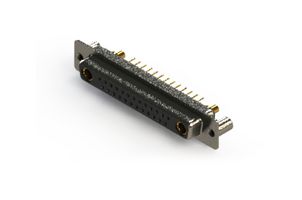

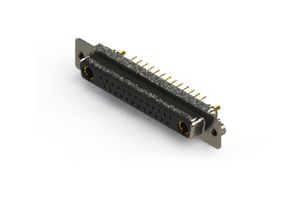

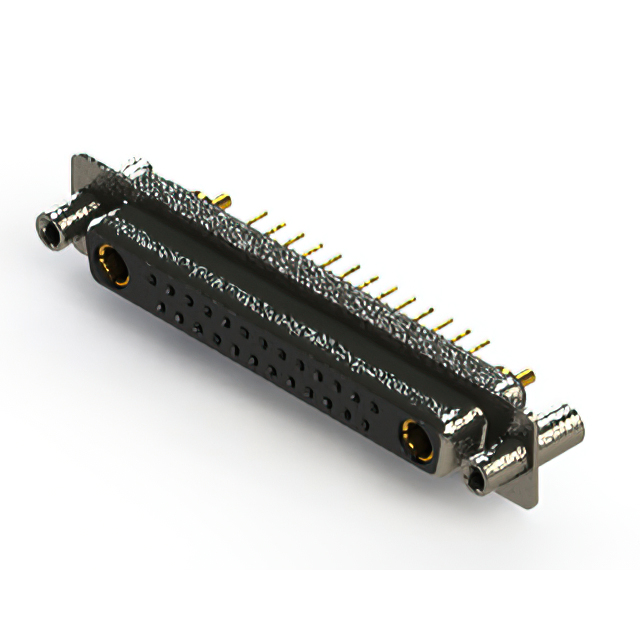

CONN D-SUB RCPT 27POS VERT SLDR
| Part | Color | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Features | Flange Feature | Shell Material, Finish | Shell Size, Connector Layout | Shell Size, Connector Layout | Number of Rows [custom] | Connector Style | Current Rating (Amps) | Contact Type | Mounting Type | Material Flammability Rating | Contact Finish | Connector Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Shielded | Board Side (4-40) | Nickel Plated Steel | 4 | 27W2 | 2 | Combo D-Sub | 10A 5A | Signal and Power | Through Hole | UL94 V-0 | Gold | Receptacle Female Sockets | Solder | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Shielded | M3 | Nickel Plated Steel | 4 | 27W2 | 2 | Combo D-Sub | Signal and Power | Through Hole | UL94 V-0 | Gold | Receptacle Female Sockets | Solder | Flash | 5 A 40 A | |||||
 EDAC Inc. | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Shielded | M3 | Nickel Plated Steel | 4 | 27W2 | 2 | Combo D-Sub | 10A 5A | Signal and Power | Through Hole | UL94 V-0 | Gold | Receptacle Female Sockets | Solder | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Shielded | Board Side (M3) | 4 | 27W2 | 2 | Combo D-Sub | 20A 5A | Signal and Power | Through Hole | UL94 V-0 | Gold | Receptacle Female Sockets | Solder | Flash | ||||||
 EDAC Inc. | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Board Lock Shielded | 4-40 | 4 | 27W2 | 2 | Combo D-Sub | 20A 5A | Signal and Power | Through Hole | UL94 V-0 | Gold | Receptacle Female Sockets | Solder | Flash | ||||||
 EDAC Inc. | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Shielded | Board Side (4-40) | Nickel Plated Steel | 4 | 27W2 | 2 | Combo D-Sub | 20A 5A | Signal and Power | Through Hole | UL94 V-0 | Gold | Receptacle Female Sockets | Solder | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Shielded | Board Side (4-40) | Nickel Plated Steel | 4 | 27W2 | 2 | Combo D-Sub | Coax Signal | Through Hole | UL94 V-0 | Gold | Receptacle Female Sockets | Solder | 30 Áin | 0.76 Ám | 2 | 25 | |||
 EDAC Inc. | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Shielded | Board Side (M3) | 4 | 27W2 | 2 | Combo D-Sub | 10A 5A | Signal and Power | Through Hole | UL94 V-0 | Gold | Receptacle Female Sockets | Solder | 30 Áin | 0.76 Ám | |||||
 EDAC Inc. | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Board Lock Shielded | 4-40 | 4 | 27W2 | 2 | Combo D-Sub | 10A 5A | Signal and Power | Through Hole | UL94 V-0 | Gold | Receptacle Female Sockets | Solder | 30 Áin | 0.76 Ám | |||||
 EDAC Inc. | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Shielded | Board Side (4-40) | 4 | 27W2 | 2 | Combo D-Sub | 20A 5A | Signal and Power | Through Hole | UL94 V-0 | Gold | Receptacle Female Sockets | Solder | 30 Áin | 0.76 Ám |
