R22318 Series

Catalog

MMBX / RIGHT ANGLE PLUG CRIMP TY

Part	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Dielectric Material	Body Finish	Voltage Rating	Connector Type	Mounting Type	Number of Ports	Connector Style	Impedance	Frequency - Max [Max]	Cable Group	Center Contact Material	Contact Termination	Housing Color	Shield Termination	Fastening Type	Cable Group

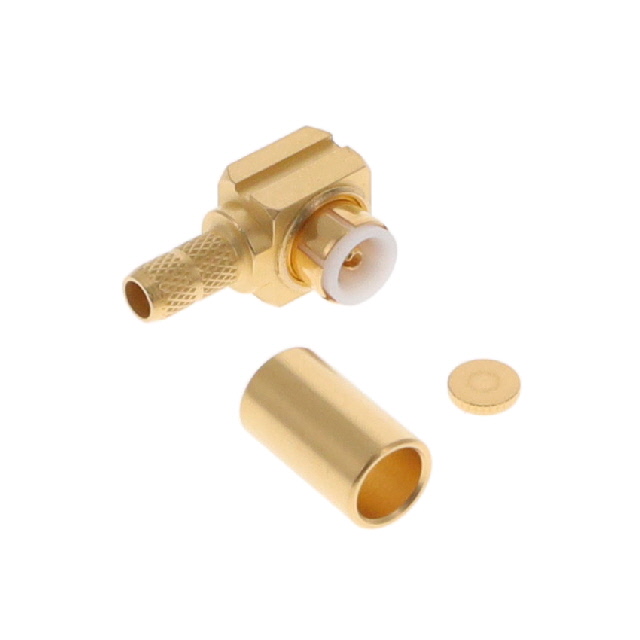

Radiall USA, Inc. R223182000	Gold	155 C	-55 C	Brass	Polytetrafluoroethylene (PTFE)	Gold	250 V	Plug Male Pin	Free Hanging (In-Line) Right Angle	1	MMBX	50 Ohms	12.4 GHz	316 RG-188	Beryllium Copper	Crimp	Gold	Crimp	Snap-On

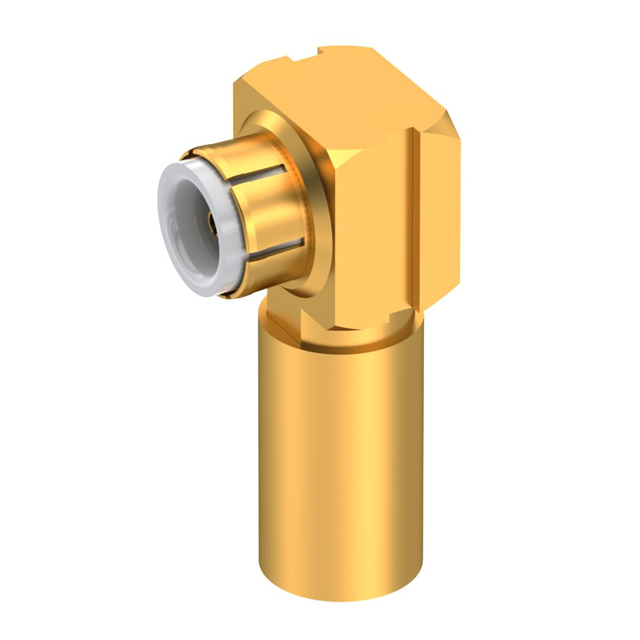

Radiall USA, Inc. R223183000	Gold	155 C	-55 C	Brass	Polytetrafluoroethylene (PTFE)	Gold	250 V	Plug Male Pin	Free Hanging (In-Line) Right Angle	1	MMBX	50 Ohms	12.4 GHz	RG-316	Beryllium Copper	Crimp	Gold	Crimp	Snap-On
Radiall USA, Inc. R223181000W	Gold	155 C	-55 C	Brass	Polytetrafluoroethylene (PTFE)	Gold	165 V	Plug Male Pin	Free Hanging (In-Line) Right Angle	1	MMBX	50 Ohms	12.4 GHz	RG-178	Beryllium Copper	Crimp	Gold	Crimp	Snap-On	196
Radiall USA, Inc. R223181000	Gold	155 C	-55 C	Brass	Polytetrafluoroethylene (PTFE)	Gold	165 V	Plug Male Pin	Free Hanging (In-Line) Right Angle	1	MMBX	50 Ohms	12.4 GHz	RG-178	Beryllium Copper	Crimp	Gold	Crimp	Snap-On	196
