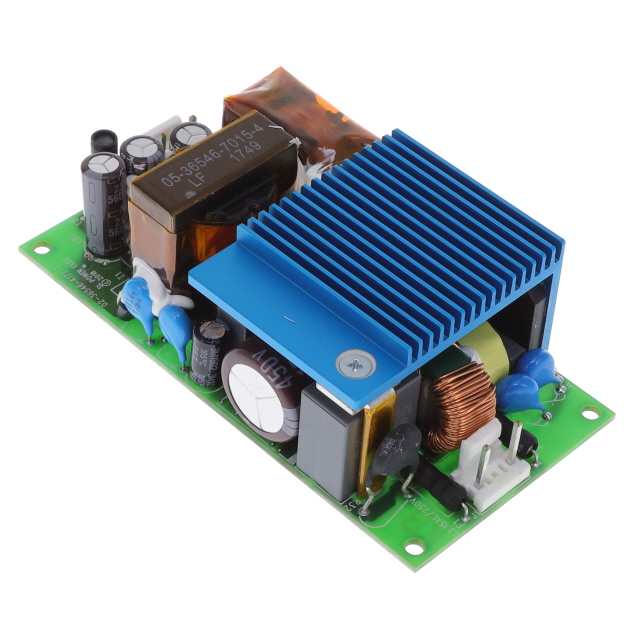

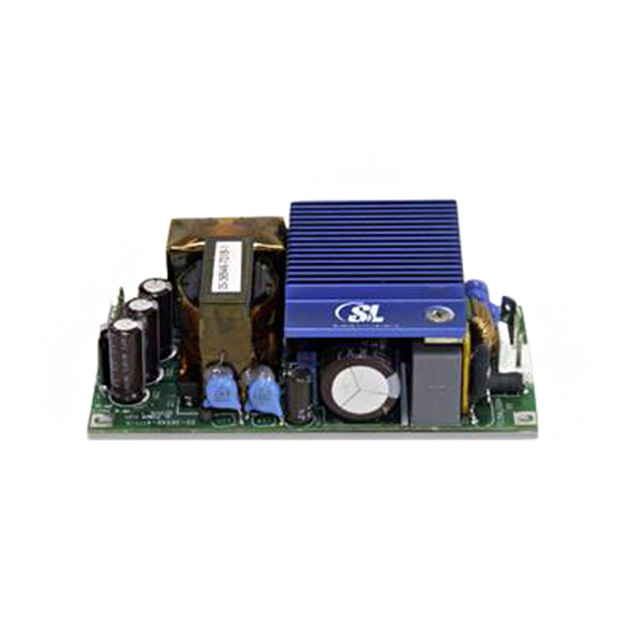

MB120S15 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC CONVERTER 15V 99W
| Part | Efficiency | Voltage - Isolation | Approval Agency | Current - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Number of Outputs | Power (Watts) | Type | Operating Temperature [Min] | Operating Temperature [Max] | Minimum Load Required | Features | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 93 % | 4000 V | CE | 6.6 A | 264 VAC | 80 VAC | 15 V | 1 | 99 W 120 W | Open Frame | -10 °C | 70 °C | Universal Input | Medical | 2 in | 1.25 " | 31.8 mm | 50.8 mm | 101.6 mm | 4 in | Chassis Mount |
