MCC Series

Catalog

PLUGGABLE TERMINAL BLOCKS 4 POS 3.81MM PITCH PLUG 24-18 AWG CRIMP

Part	Mounting Type	Current - IEC	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - IEC	Pitch	Pitch	Positions Per Level	Type	Plug Wire Entry	Number of Positions	Voltage - UL	Color	Number of Levels	Current - UL	Material Flammability Rating	Insulation Height [z]	Insulation Height	Housing Material	Features	Insulation Height	Wire Strip Length [Max]	Wire Strip Length [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Operating Temperature	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Positions Per Level [custom]

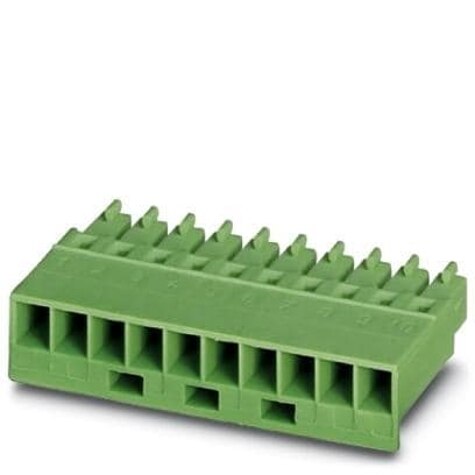

Phoenix Contact 1982091	Free Hanging (In-Line)	8 A	1 mm²	0.2 mm²	160 V	3.81 mm	0.15 in	4	Plug Housing for Female Sockets	180 °	4	300 V	Blue	1	5 A
Phoenix Contact 1852435	Free Hanging (In-Line)	8 A	1 mm²	0.2 mm²	320 V	3.81 mm	0.15 in	9	Plug Housing for Female Sockets	180 °	9	300 V	Green	1	5 A	UL94 V-0	0.343 in	8.71 mm	Polyamide (PA) Nylon	Mating Flange
Phoenix Contact 1852309	Free Hanging (In-Line)	8 A	1 mm²	0.2 mm²	320 V	3.81 mm	0.15 in	15	Plug Housing for Female Sockets	180 °	15	300 V	Green	1	5 A	UL94 V-0	0.343 in	8.71 mm	Polyamide (PA) Nylon

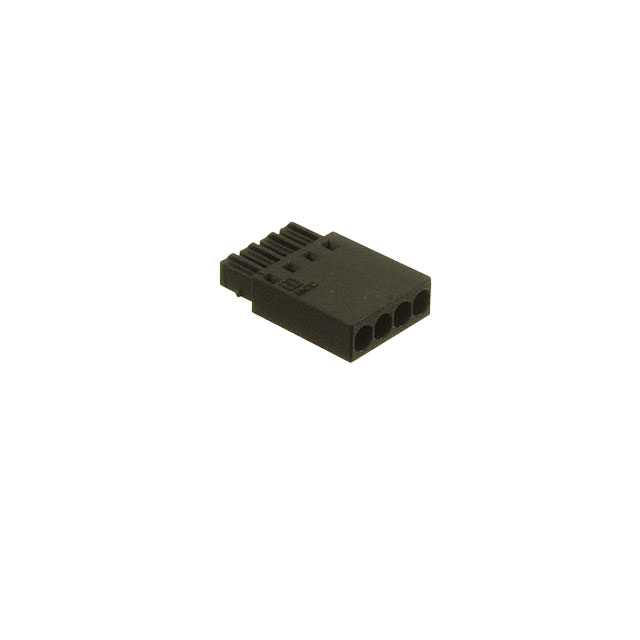

Phoenix Contact 1012268	Free Hanging (In-Line)	6 A	0.75 mm²	0.14 mm²	160 V	2.54 mm	0.1 "	4	Plug Housing for Female Sockets	180 °	4	150 V	Black	1	6 A	UL94 V-0		3.96 mm	Polyamide (PA) Nylon		0.156 in	4.5 mm	4.1 mm	26 AWG	18 AWG	Crimp	-40 °C

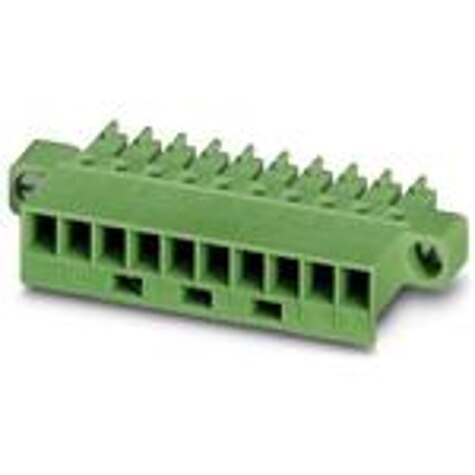

Phoenix Contact 1852419	Free Hanging (In-Line)	8 A	1 mm²	0.2 mm²	320 V	3.81 mm	0.15 in		Plug Housing for Female Sockets	180 °	7	300 V	Green	1	5 A	UL94 V-0	0.343 in	8.71 mm	Polyamide (PA) Nylon	Mating Flange								0.2 mm˛	1 mm˛	7
Phoenix Contact 1852464	Free Hanging (In-Line)	8 A	1 mm²	0.2 mm²	320 V	3.81 mm	0.15 in	12	Plug Housing for Female Sockets	180 °	12	300 V	Green	1	5 A					Mating Flange

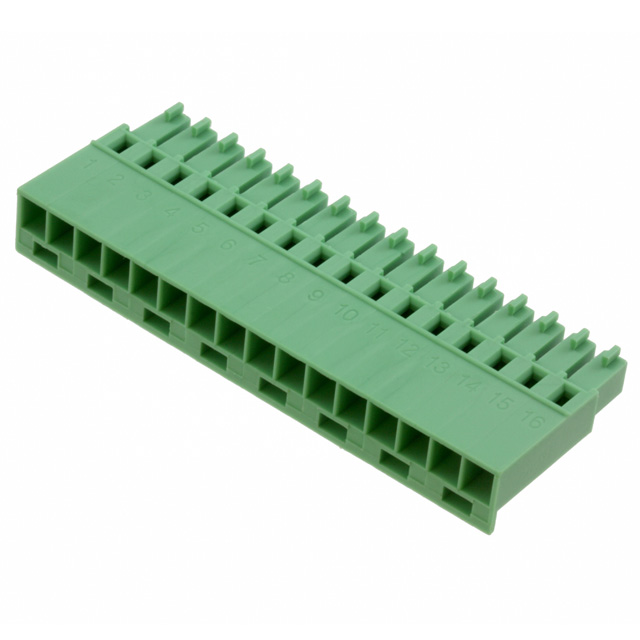

Phoenix Contact 1852312	Free Hanging (In-Line)	8 A	1 mm²	0.2 mm²	320 V	3.81 mm	0.15 in	16	Plug Housing for Female Sockets	180 °	16	300 V	Green	1	5 A	UL94 V-0	0.343 in	8.71 mm	Polyamide (PA) Nylon
